Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

8 part groups · 2 illustrations

Illustrations

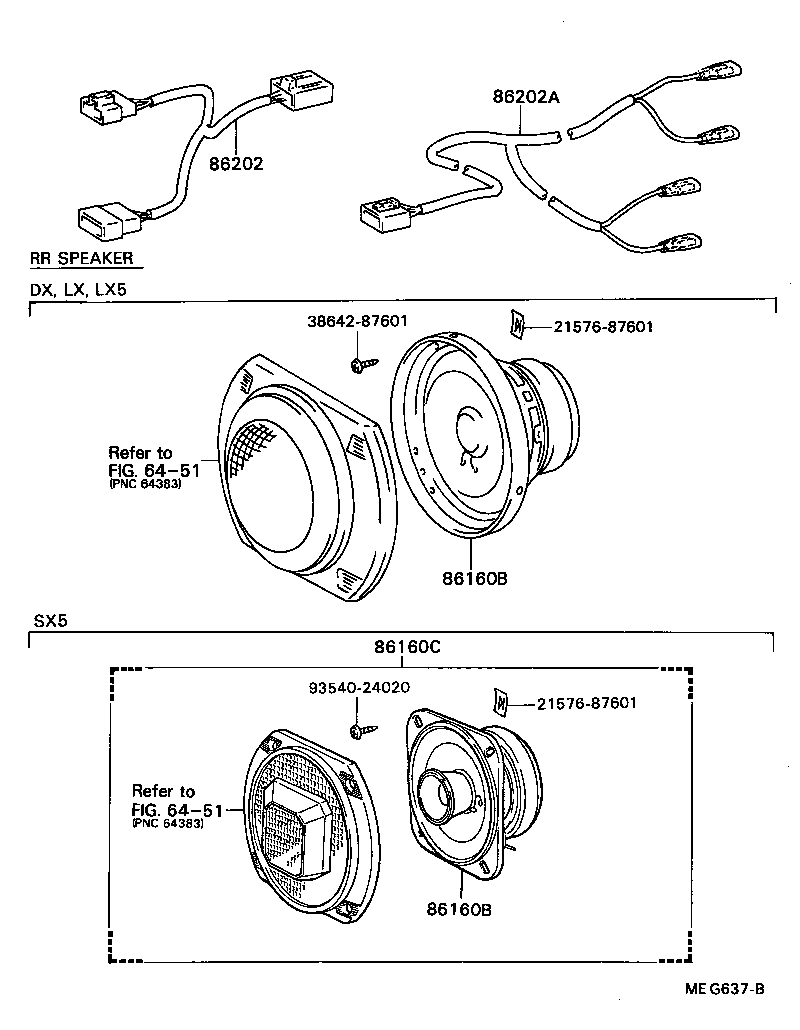

Figure MEE405C MEE405C 1984-05 → — Figure MEG637B MEG637B 1984-05 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160A Speaker Set, Front
86160B Speaker Assy, Rear
86160C Speaker Set, Rear
86161 Bracket, Speaker, Front NO.1
86202 Wire, Speaker, NO.1
86202A Wire, Speaker, NO.2
86219 Bracket, Stereo Component Speaker, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
