Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

18 part groups · 2 illustrations

Illustrations

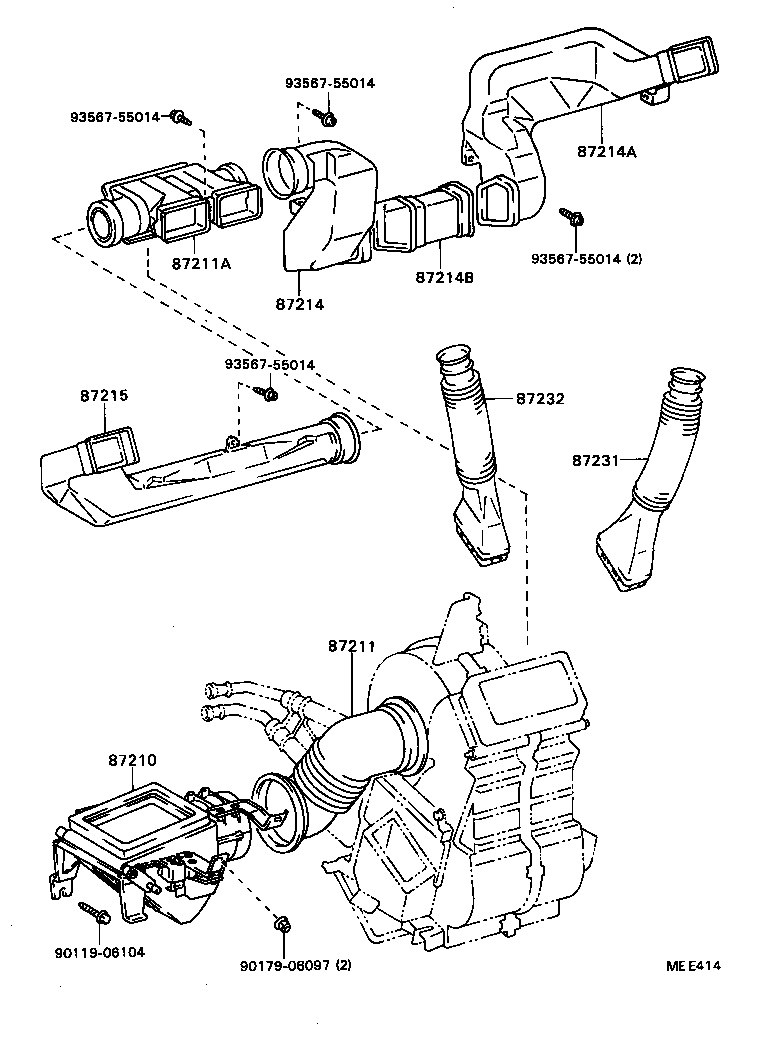

Figure MEE413B MEE413B 1984-05 → — Figure MEE414 MEE414 1984-05 → —

Part groups

PNCDescription
55906A Cable Sub-assy, Defroster Damper Control
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55937 Knob, Heater Control Lever
87210 Damper Assy, Air
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87214B Duct, Air, Side NO.3 RH
87215 Duct, Air, Side NO.1 LH
87231 Hose, Heater Defroster, RH
87232 Hose, Heater Defroster, LH
87284 Resistor Sub-assy, Variable
88611A Knob, Cooler Control Switch
88688B Bracket, Air Conditioner Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
