Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

25 part groups · 2 illustrations

Illustrations

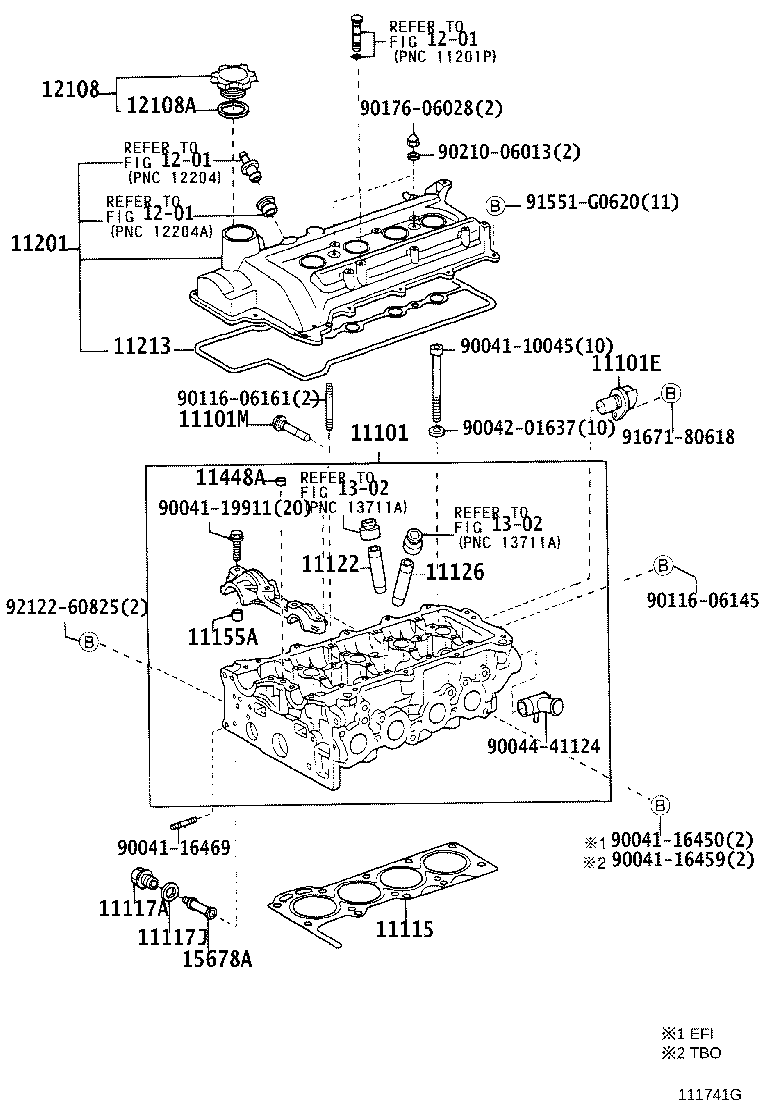

Figure 111562A 111562A 1999-05 → 2000-05 Figure 111741G 111741G 2000-05 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101E Sensor, Cam Position
11101M Ball NO.1(FOR CYLINDER HEAD)
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11117A Plug, W/Head Taper Screw, NO.1
11117J Gasket(FOR CYLINDER HEAD SCREW PLUG)
11122 Bush, Intake Valve Guide
11122A Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
11126 Bush, Exhaust Valve Guide
11151B Seal, Oil(FOR CAMSHAFT SETTING)
11155A Pin, Ring W/Head
11193 Gasket, Spark Plug Tube
11201 Cover Sub-assy, Cylinder Head
11213 Gasket, Cylinder Head Cover
11448A Orifice, Cylinder Head Oil
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12204B Grommet(FOR VENTILATION SYSTEM)
12261C Hose, Ventilation
12262E Hose, Ventilation, NO.2
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
15678A Filter, Oil Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
