Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

14 part groups · 2 illustrations

Illustrations

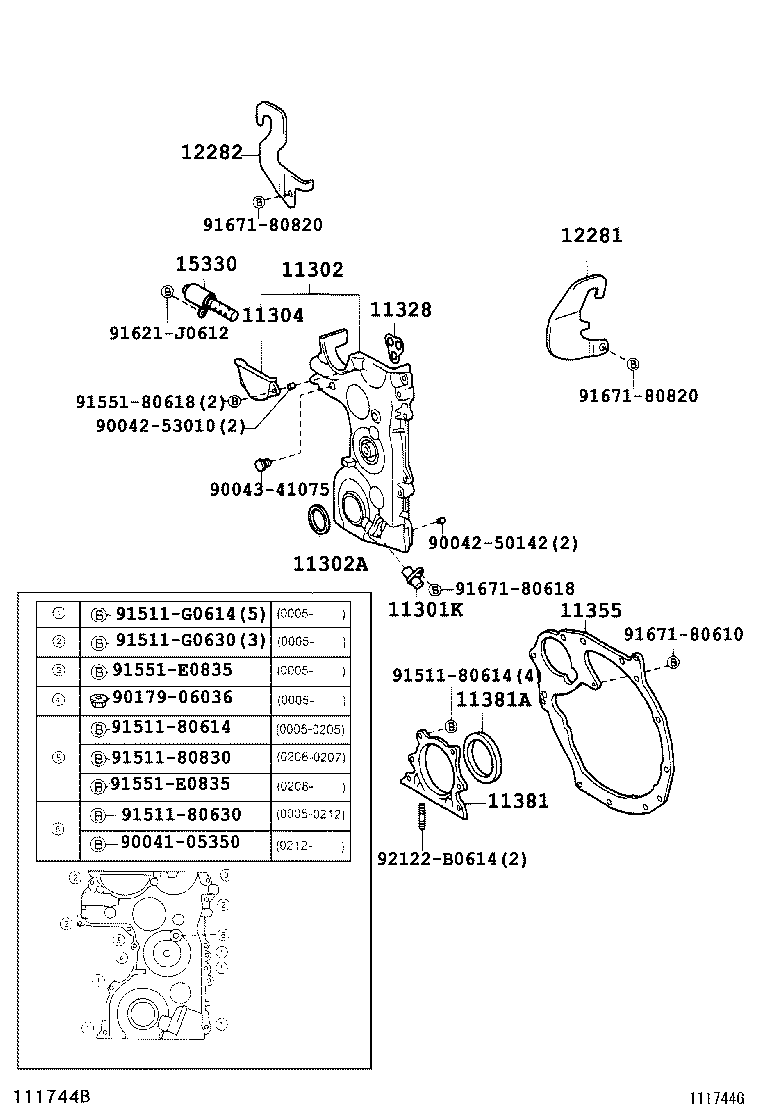

Figure 111564 111564 1999-05 → 2000-05 Figure 111744G 111744G 2000-05 → —

Part groups

PNCDescription
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11303B Cover Sub-assy, Timing Belt, NO.2
11304 Cover, Timing Chain OR Belt, NO.2
11322D Gasket, Timing Belt Cover, NO.1
11322E Gasket, Timing Belt Cover, NO.2
11328 Gasket, Timing Gear OR Chain Cover
11355 Plate, Rear End
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
15330 Valve Assy, Cam Timing Oil Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
