Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

29 part groups · 3 illustrations

Illustrations

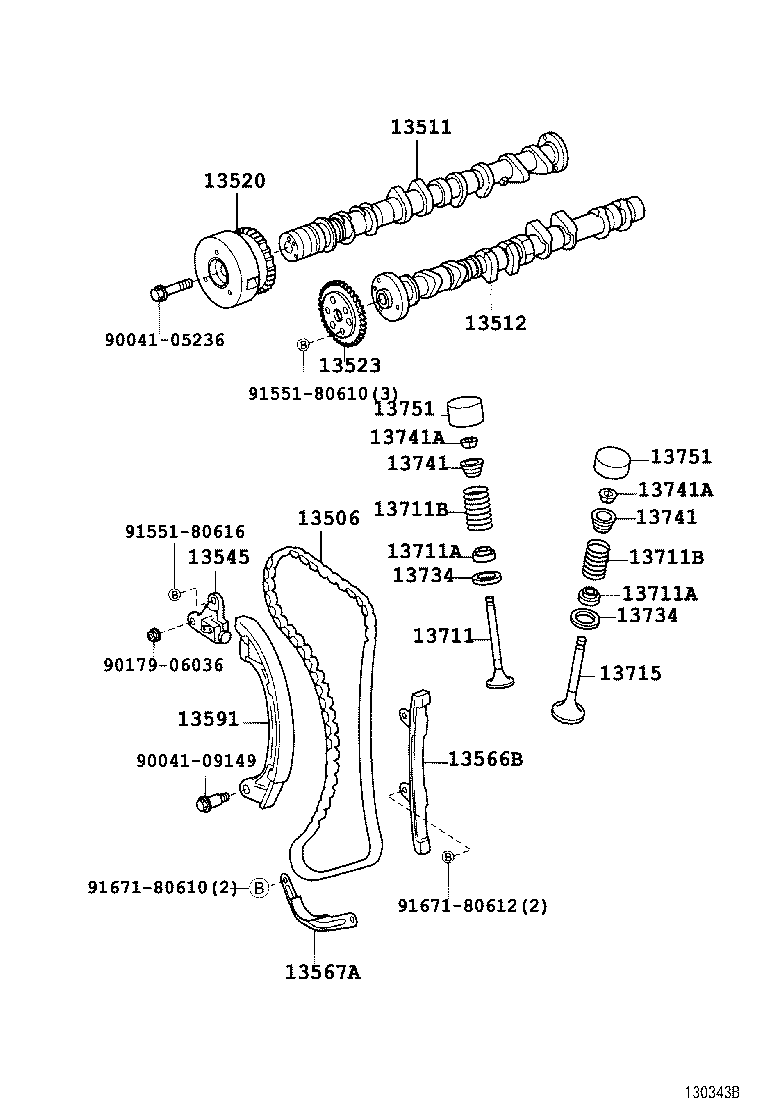

Figure 130298 130298 1999-05 → 2000-05 Figure 130299 130299 1999-05 → 2000-05 Figure 130343B 130343B 2000-05 → —

Part groups

PNCDescription
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13506 Chain Sub-assy
13511 Camshaft
13512 Camshaft, NO.2
13520 Sprocket Assy, Camshaft Timing
13523 Gear OR Sprocket, Camshaft Timing
13523P Pulley, Camshaft Timing
13545 Plunger, Chain Tensioner
13566B Guide, Timing Chain
13567A Guide, Timing Chain, NO.2
13568 Belt, Timing
13591 Arm, Timing Chain Tension
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13801 Arm Sub-assy, Valve Rocker, NO.1
13801C Screw, Valve Adjusting
13802 Arm Sub-assy, Valve Rocker, NO.2
13803 Arm Sub-assy, Valve Rocker, NO.3
13804 Arm Sub-assy, Valye Rocker, NO.4
13817 Spacer, Valve Rocker Arm
13901 Shaft Sub-assy, Valve Rocker, NO.1
13902 Shaft Sub-assy, Valve Rocker, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
