Toyota Cami
1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan
Discontinued model
Data version 2006-07

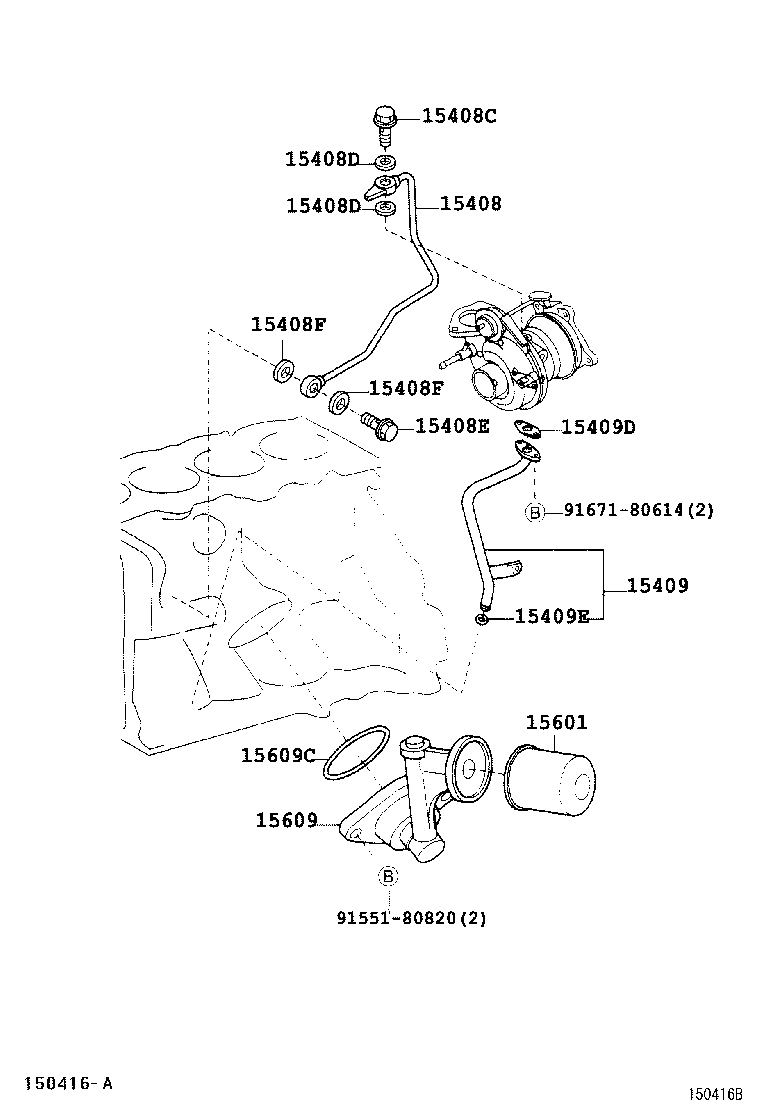

Oil Filter
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 15408 | Pipe OR Hose, Oil Filter Inlet |
| 15408C | Bolt, Union(FOR OIL FILTER INLET PIPE) |
| 15408D | Gasket(FOR OIL FILTER INLET PIPE) |
| 15408E | Bolt, Union(FOR OIL PIPE) |
| 15408F | Gasket(FOR OIL PIPE) |
| 15409 | Pipe OR Hose, Oil Filter Outlet |
| 15409D | Gasket(FOR OIL FILTER OUTLET PIPE) |
| 15409E | Ring, O(FOR OIL PIPE) |
| 15601 | Filter Sub-assy, Oil |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15609C | Gasket(FOR OIL FILTER BRACKET UNION) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
