Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

11 part groups · 6 illustrations

Illustrations

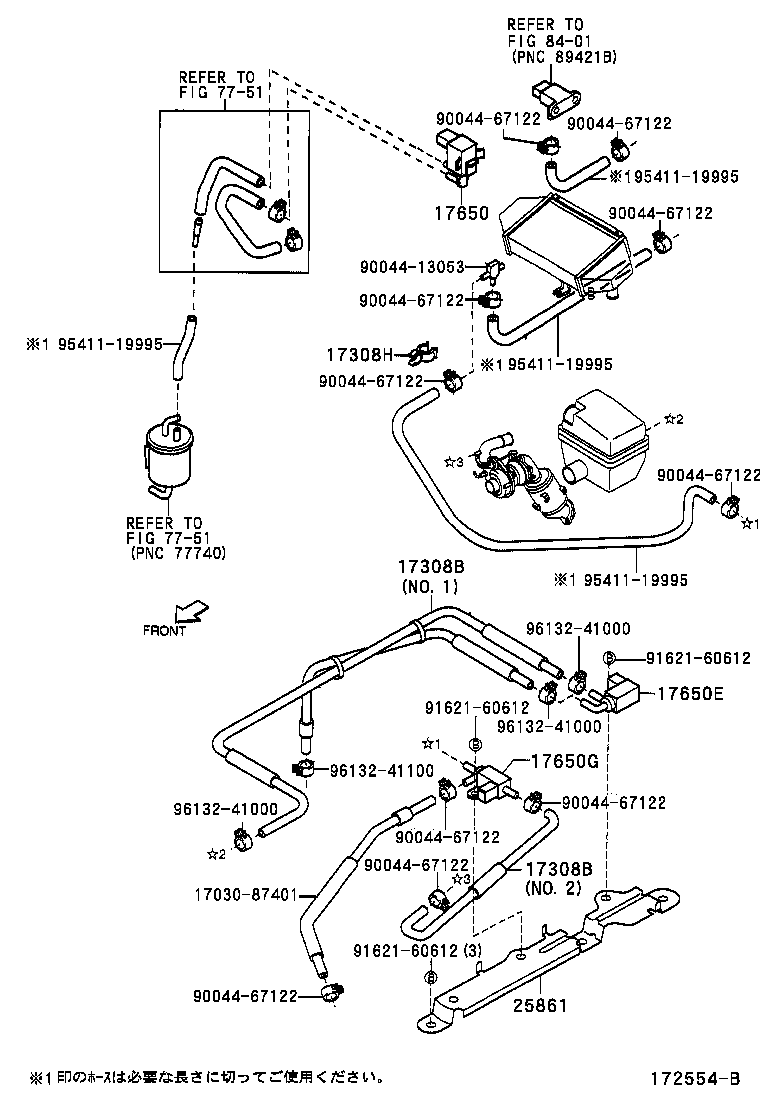

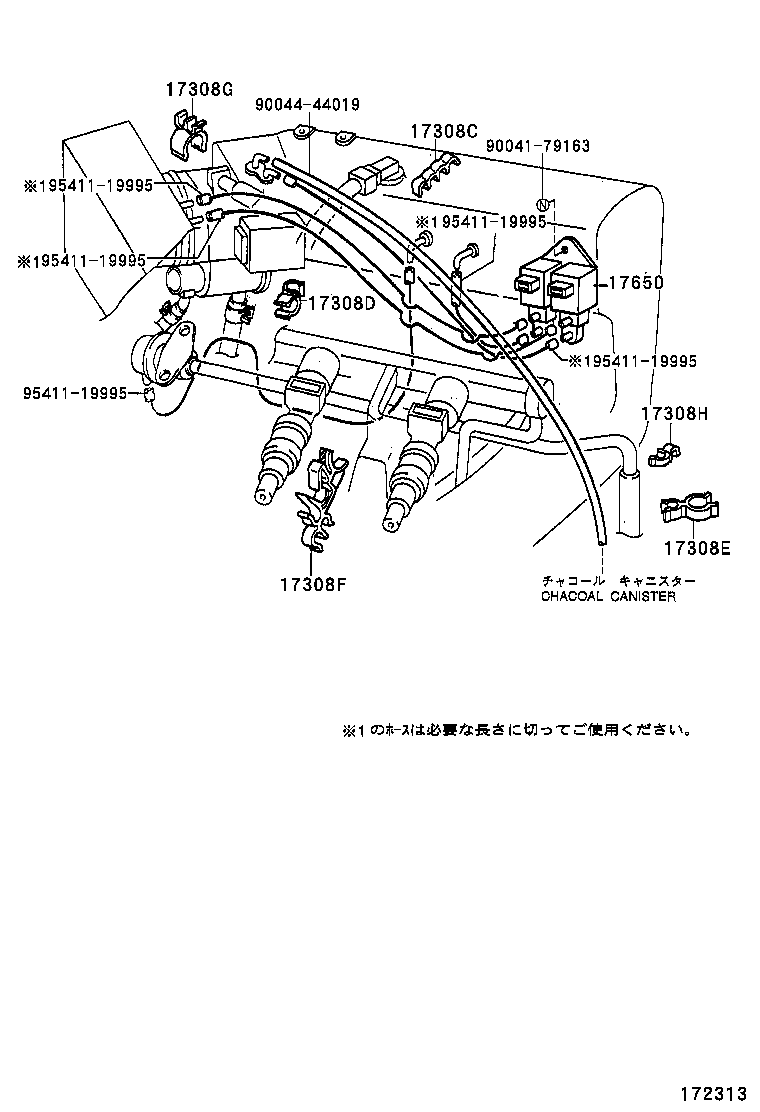

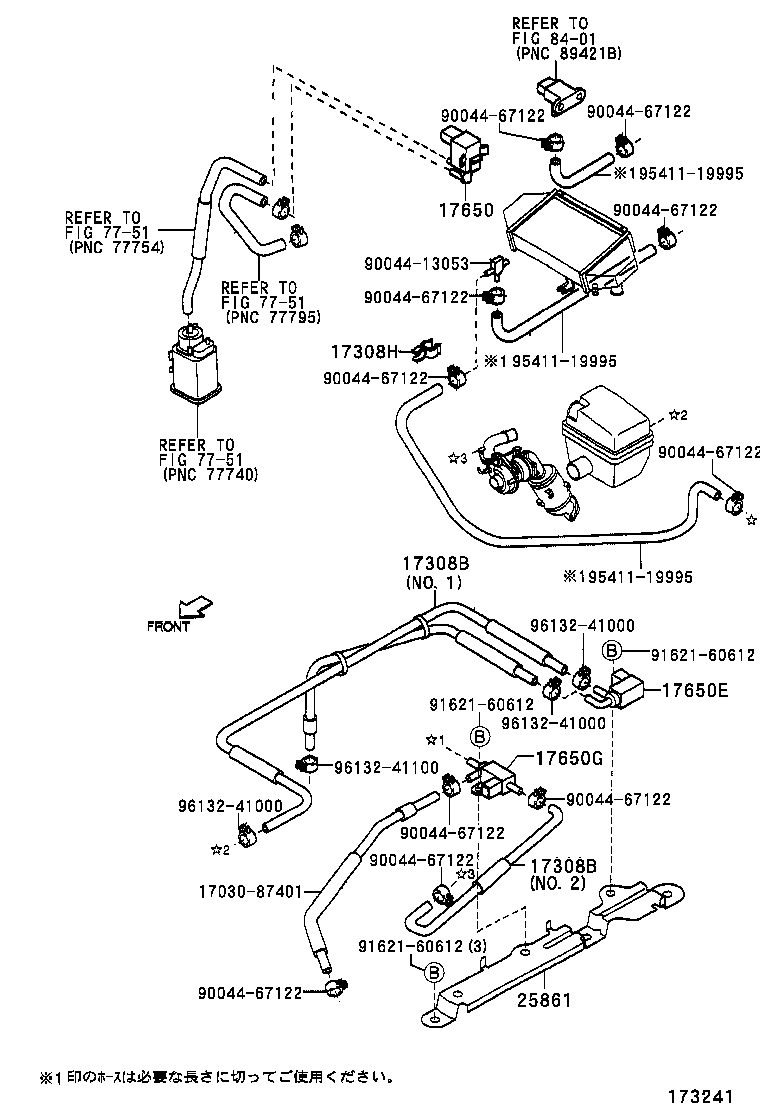

Figure 172312 172312 1999-05 → 2000-05 Figure 172313 172313 1999-05 → 2000-05 Figure 172553 172553 2000-05 → 2001-12 Figure 172554B 172554B 2000-08 → 2001-12 Figure 173240 173240 2001-12 → — Figure 173241 173241 2001-12 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17308C Clamp(FOR VACUUM HOSE)
17308D Clamp, NO.2(FOR VACUUM HOSE)
17308E Clamp, NO.3(FOR VACUUM HOSE)
17308F Clamp, NO.4(FOR VACUUM HOSE)
17308G Clamp, NO.5(FOR VACUUM HOSE)
17308H Clamp, NO.6(FOR VACUUM HOSE)
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
