Factory parts data · Europe

Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

4 part groups · 2 illustrations

Illustrations

191122 1999-05 → 2000-05

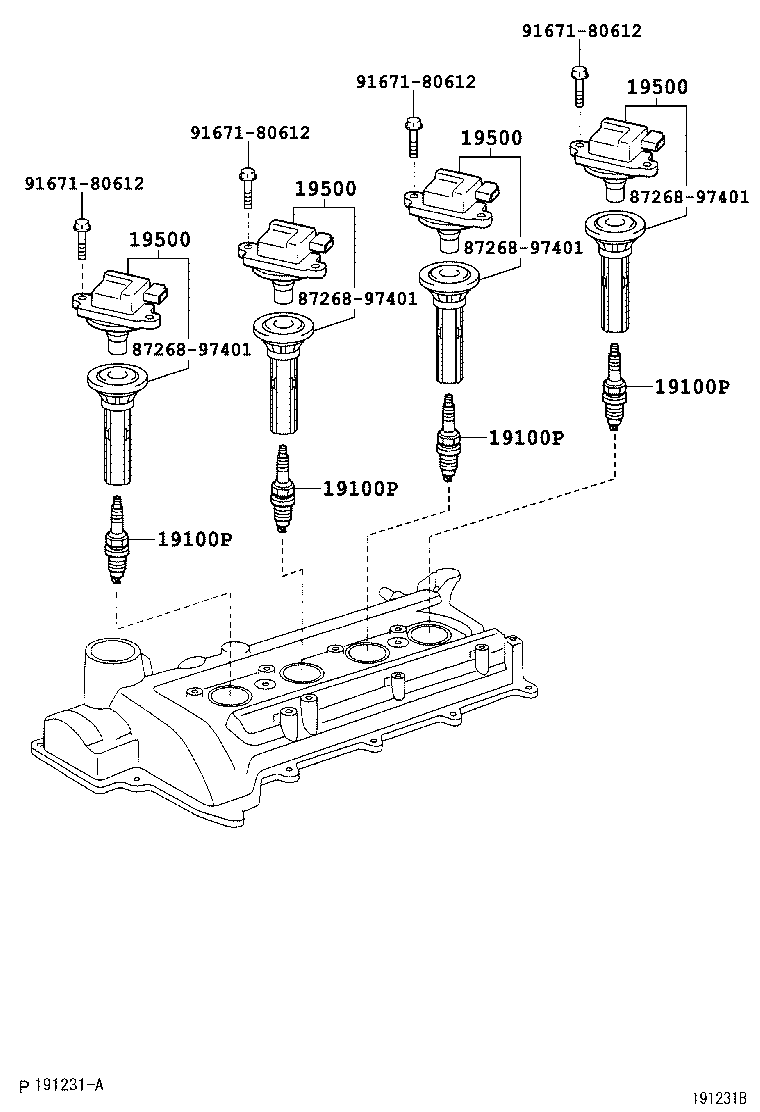

Figure 191231B

191231B 2000-05 → —

Part groups

PNC	Description
19100P	Plug, Spark
19500	Coil Assy, Ignition
19901B	Cord, Spark Plug Resistive, NO.1
19901C	Cord, Spark Plug Resistive, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
