Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

19 part groups · 2 illustrations

Illustrations

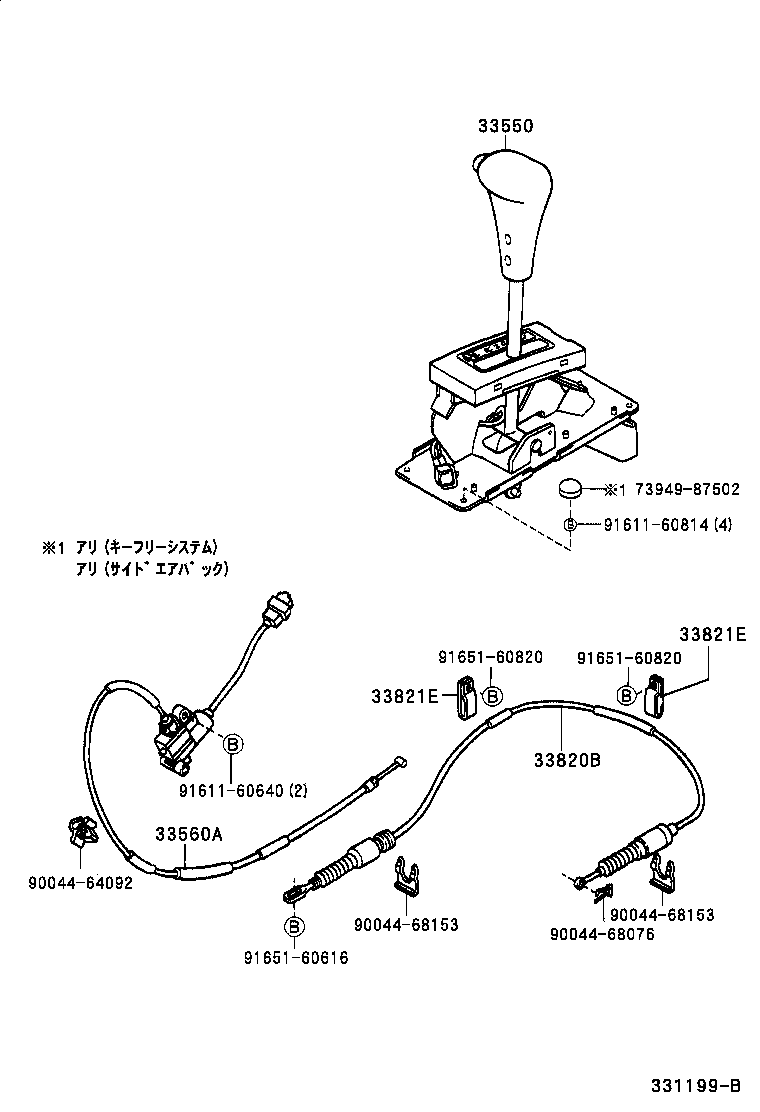

Figure 331198A 331198A 1999-05 → — Figure 331199B 331199B 1999-05 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33522G Cover, Shift Lever Housing Dust
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33530J Ring, O (FOR SHIFT LEVER)
33534B Crank, Selecting Bell, NO.1
33534C Bush (FOR SELECTING BELLCRANK NO.1)
33534R Cushion (FOR SELECTING BELLCRANK NO.1)
33550 Floor Shift Assy, Transmission
33555B Boot, Shift & Select Lever
33560A Cable Assy, Shift Lock Release
33602B Bushing (FOR SELECT LEVER)
33602F Lever Sub-assy, Select (FOR FLOOR SHIFT)
33752F Support, Control Link (FOR FLOOR SHIFT)
33820B Cable Assy, Transmission Control
33821 Cable Transmission Control Shift (FOR FLOOR SHIFT)
33821E Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33822 Cable Transmission Control Select (FOR FLOOR SHIFT)
33823 Bracket, Transmission Control Cable, NO.1
33829E Bracket, Transmission Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
