Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

29 part groups · 3 illustrations

Illustrations

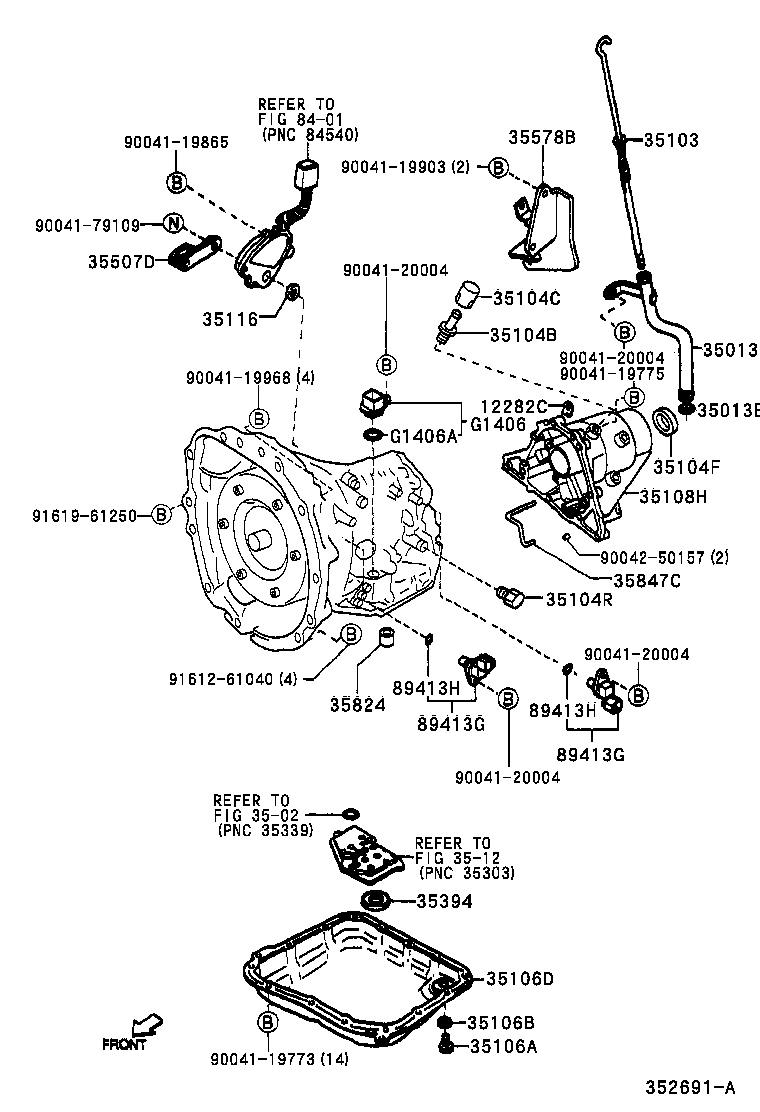

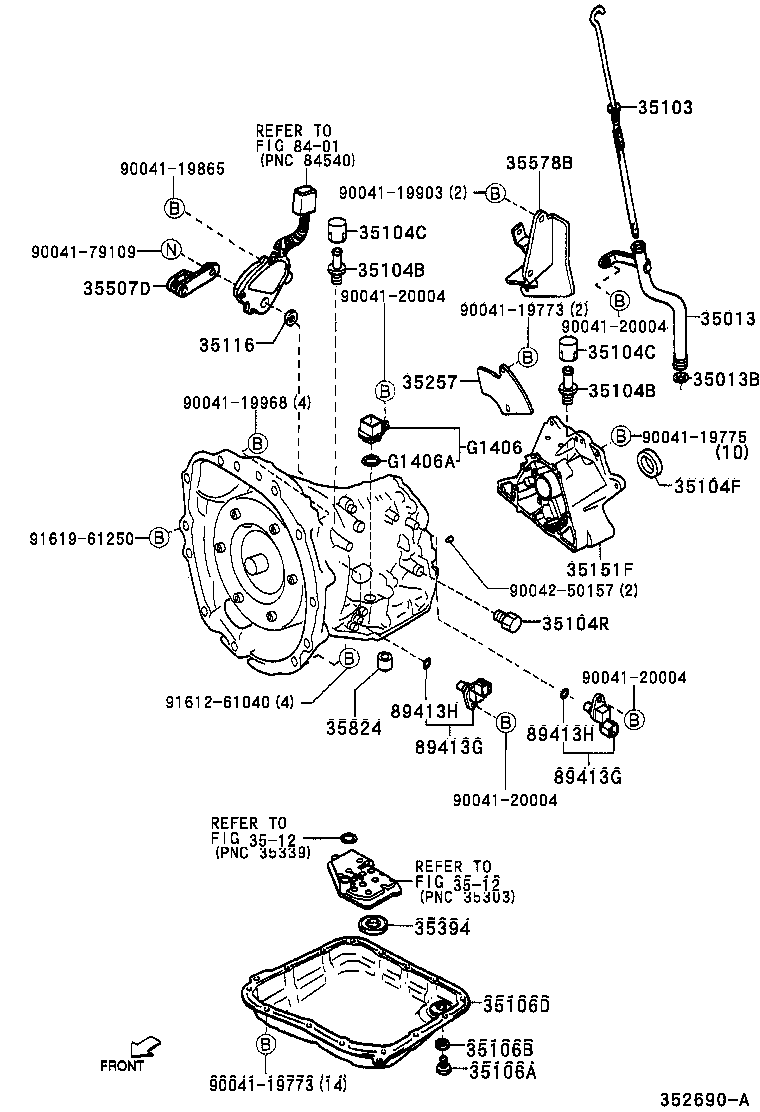

Figure 352371B 352371B 1999-05 → 2000-05 Figure 352690A 352690A 2000-05 → — Figure 352691A 352691A 2000-05 → —

Part groups

PNCDescription
12282C Hanger, Engine, NO.2
33155B Stiffener, Power Train
35013 Tube Sub-assy, Transmission Oil Filler
35013B Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35103 Gage Sub-assy, Transmission Oil Level
35104B Plug, Breather, NO.1 (ATM)
35104C Plug, Breather, NO.2 (ATM)
35104F Seal, Oil (FOR TRANSAXLE CASE)
35104Q Plug, NO.1 (FOR TRANSAXLE CASE)
35104R Plug, NO.2 (FOR TRANSAXLE CASE)
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106D Pan Sub-assy, Automatic Transaxle Oil
35108H Housing Sub-assy, Extension
35116 Seal, Transmission Case Dust
35151F Cover, Transmission Case, Side
35151G Snap Ring, Transmission Case Side Cover
35151H Plug, Breather, NO.3 (ATM)
35257 Plate, Oil Guide
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
35507D Lever, Transmission Control Shaft
35523E Clamp, Throttle Cable
35578B Bracket, Transmission Control Cable
35824 Seal, Brake Cylinder
35847C Tube, Transmission Lube Apply
89413G Sensor, Transmission Revolution
89413H Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
G1406 Connector Sub-assy, Trans Solenoid
G1406A Ring, O(FOR TRANS SOLENOID CONNECTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
