Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

18 part groups · 2 illustrations

Illustrations

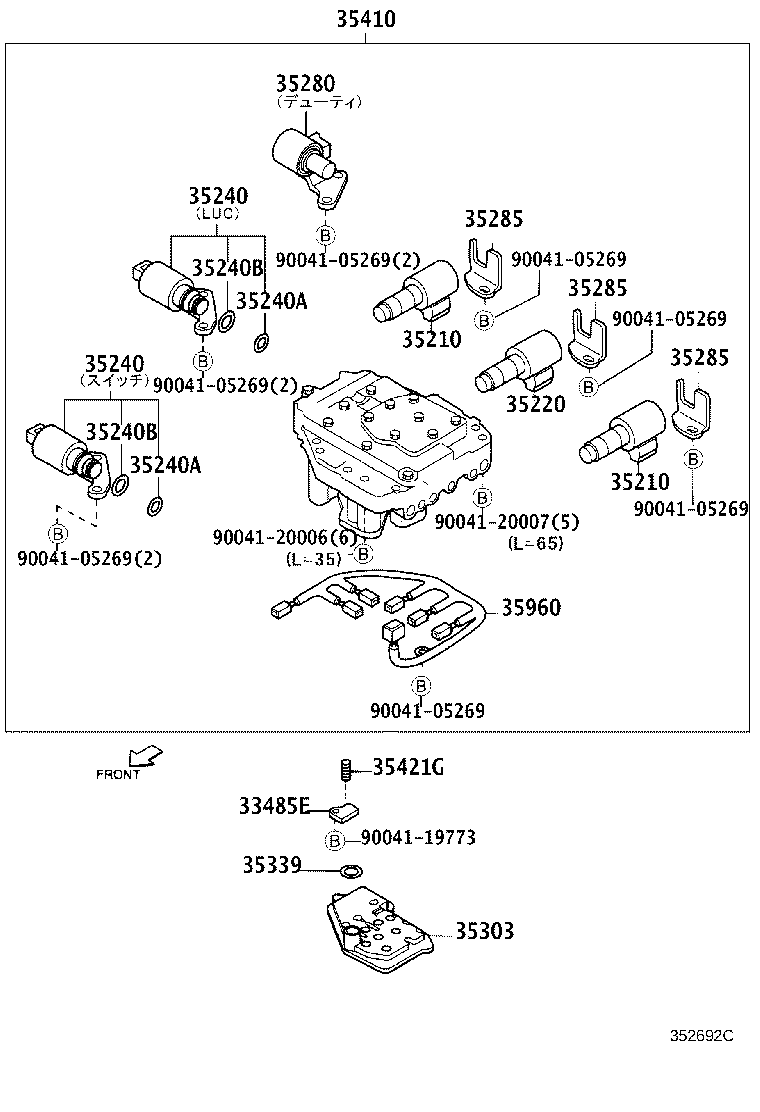

Figure 352375A 352375A 1999-05 → 2000-05 Figure 352692C 352692C 2000-05 → —

Part groups

PNCDescription
33485E Plate, Lock
35210 Solenoid Assy, Clutch Control, NO.1
35220 Solenoid Assy, Clutch Control, NO.2
35240 Solenoid Assy, Automatic Transmission 3Way
35240A Ring, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID)
35240B Ring, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID)
35280 Solenoid Assy, Lock UP Control
35285 Plate, Solenoid Lock
35303 Strainer Sub-assy, Oil
35339 Gasket, Oil Strainer
35381 Tube, Valve Body
35402 Valve, Manual
35410 Body Assy, Transmission Valve
35421 Piston, Accumulator, NO.1
35421A Spring, Compression (FOR ACCUMULATOR PISTON NO.1)
35421F Piston, Accumulator, NO.2
35421G Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
35960 Wire, Solenoid
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
