Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Throttle Link & Valve Lever (ATM)

12 part groups · 2 illustrations

Illustrations

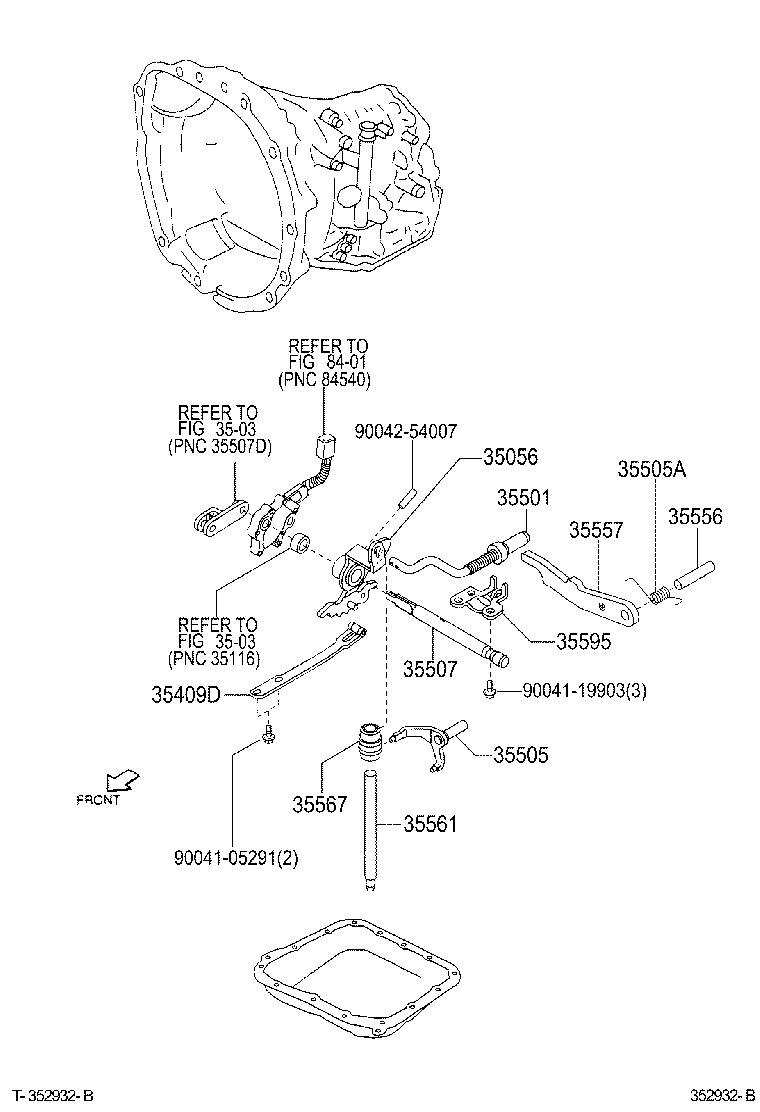

Figure 352376 352376 1999-05 → 2000-05 Figure 352932B 352932B 2000-05 → —

Part groups

PNCDescription
35056 Lever Sub-assy, Parking Lock W/Roller
35409D Spring Sub-assy, Manual Detent
35501 Rod Sub-assy, Parking Lock
35505 Lever Sub-assy, Manual Valve
35505A Spring, Torsion (FOR MANUAL VALVE LEVER)
35507 Shaft Sub-assy, Transmission Control Intermediate
35520 Cable Assy, Throttle
35556 Shaft, Parking Lock Pawl
35557 Pawl, Parking Lock
35561 Shaft, Manual Valve Lever
35567 Rod, Transmission Control, 3RD
35595 Bracket, Parking Lock Pawl
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
