Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Vacuum Piping

13 part groups · 2 illustrations

Illustrations

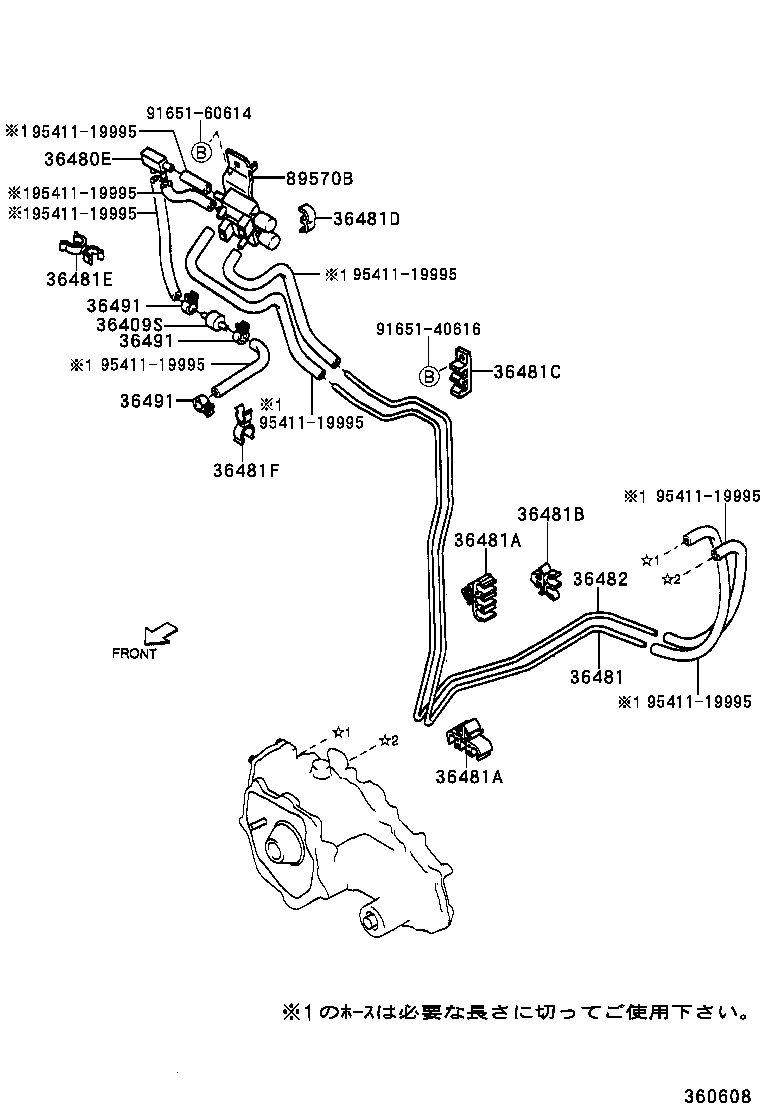

Figure 360565 360565 1999-05 → 2000-05 Figure 360608 360608 2000-05 → —

Part groups

PNCDescription
36409J Union (FOR FRONT DRIVE SHIFT)
36409S Valve, Check (FOR FRONT DRIVE SHIFT)
36480E Way, 3 (FOR TRANSFER VACUUM TUBE)
36481 Tube, Front Drive Vacuum, NO.1
36481A Clamp (FOR FRONT DRIVE VACUUM TUBE)
36481B Clamp, Front Drive Vacuum Tube, NO.1
36481C Clamp, Front Drive Vacuum Tube, NO.2
36481D Clamp, NO.1 (FOR TRANSFER VACUUM)
36481E Clamp, NO.2 (FOR TRANSFER VACUUM)
36481F Clamp, NO.3(FOR TRANSFER VACUUM)
36482 Tube, Front Drive Vacuum, NO.2
36491 Clamp, Transfer Vacuum Tube, N0.1
89570B Valve Assy, Vacuum Switching
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
