Toyota Cami
1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan
Discontinued model
Data version 2006-07

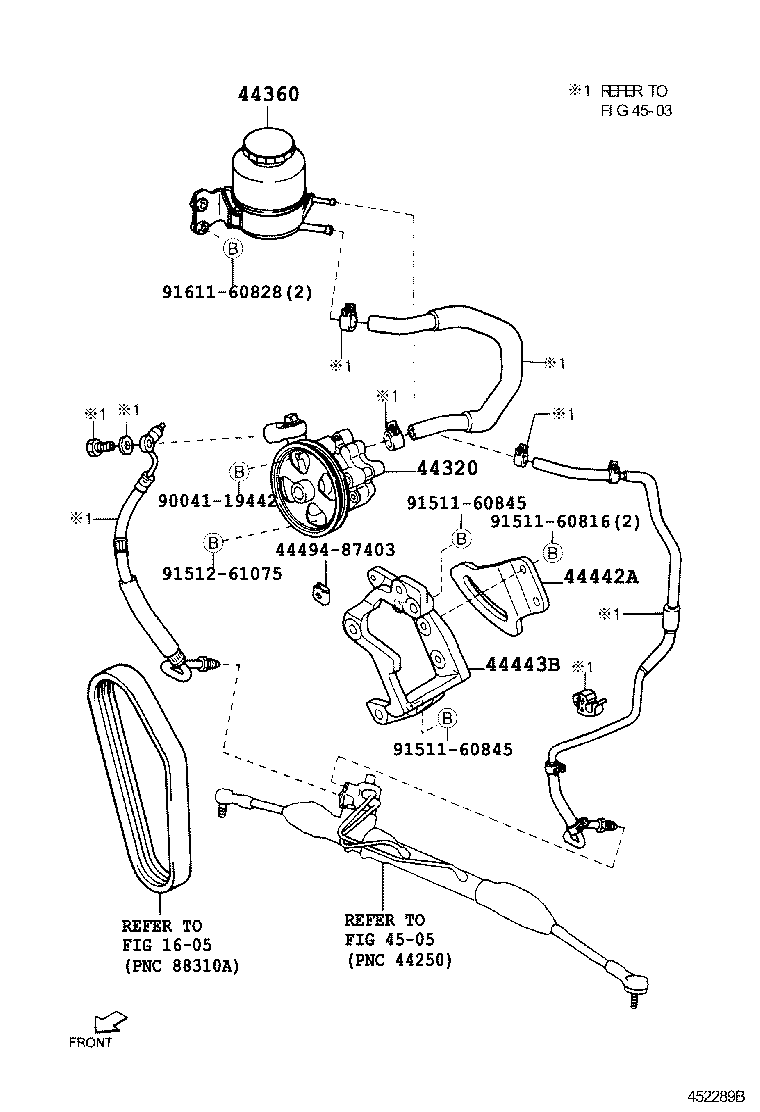

Vane Pump & Reservoir (POWER STEERING)
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44320 | Pump Assy, Vane |
| 44320B | Bolt(FOR VANE PUMP SETTING) |
| 44320C | Collar(FOR VANE PUMP SETTING BOLT) |
| 44360 | Reservoir Assy, Vane Pump Oil |
| 44442A | Bracket, Vane Pump, Rear |
| 44443B | Bracket, Vane Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
