Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 4 illustrations

Illustrations

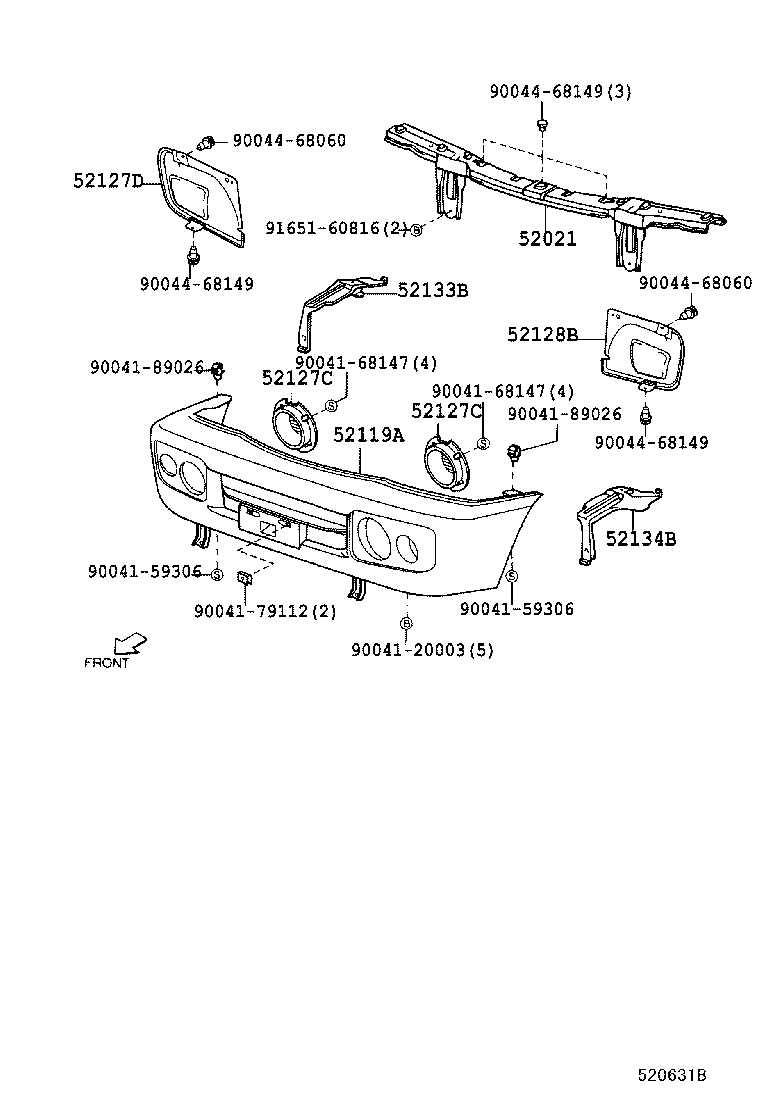

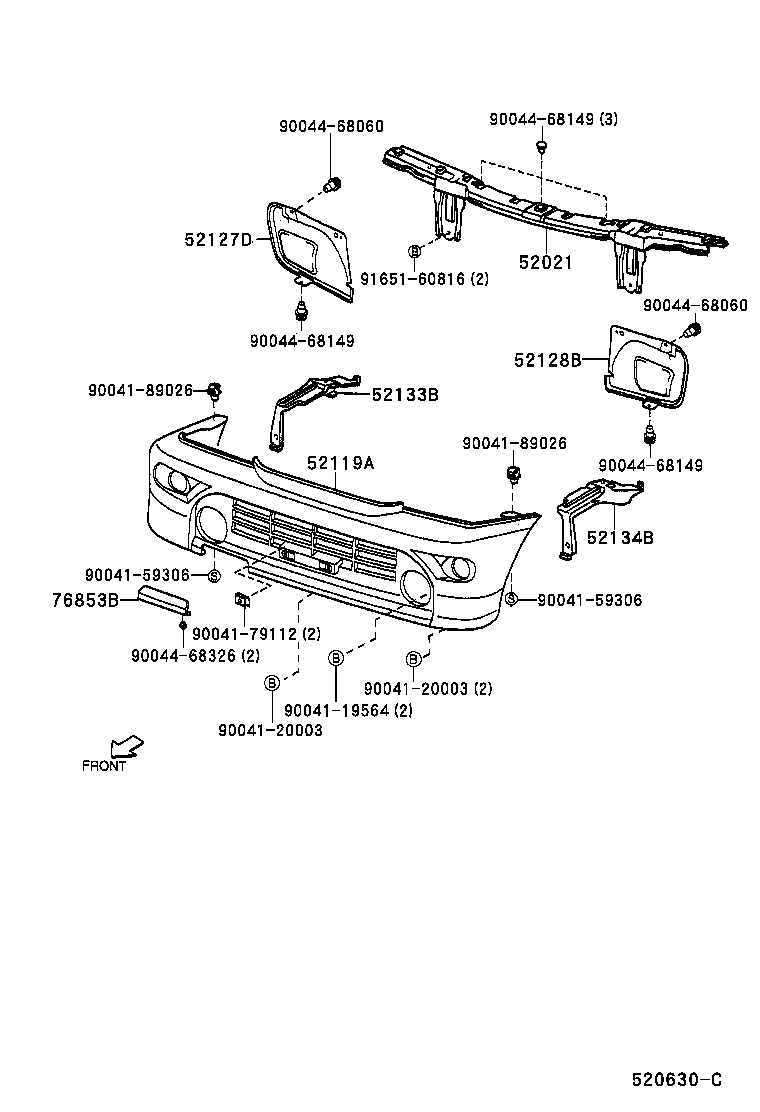

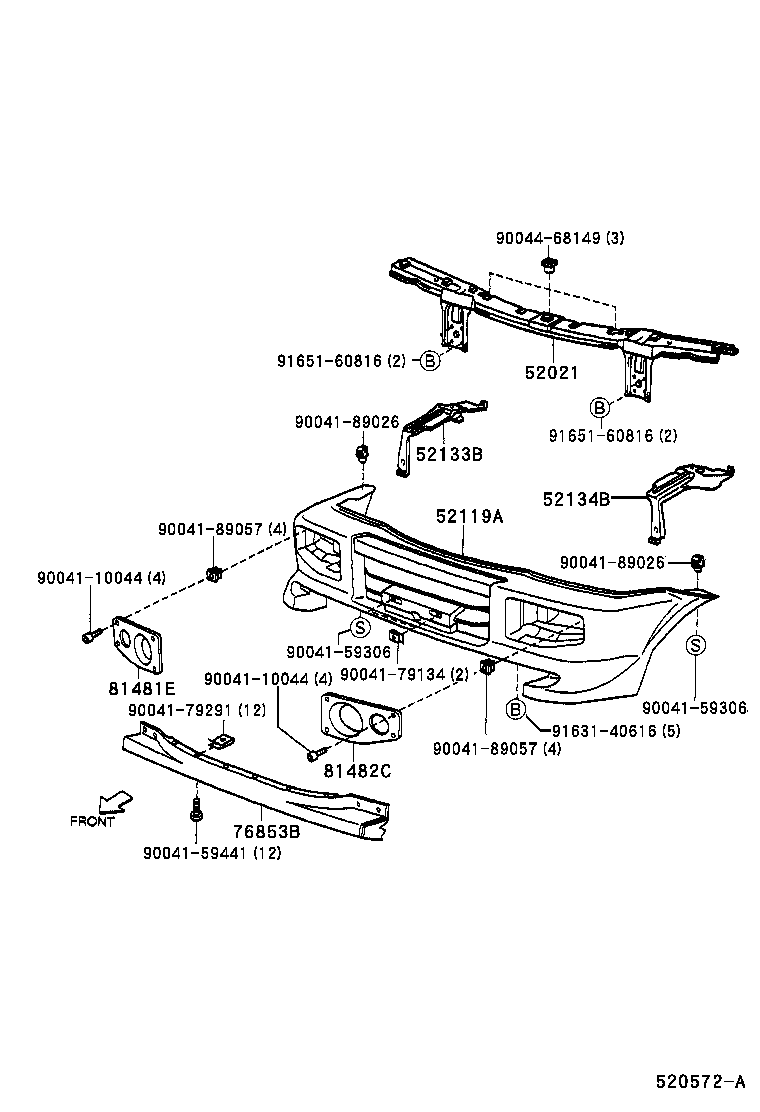

Figure 520573B 520573B 1999-05 → 2000-05 Figure 520572A 520572A 1999-05 → 2000-05 Figure 520631B 520631B 2000-05 → — Figure 520630C 520630C 2000-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52117J Bar, Front Bumper Guard, Lwr
52118B Bar, Front Bumper Guard, Center
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52133B Bracket, Front Bumper Extension Mounting, RH
52134B Bracket, Front Bumper Extension Mounting, LH
52411 Guard, Front Bumper
52431A Bracket, Front Bumper Guard, RH
52432A Bracket, Front Bumper Guard, LH
52436 Protector, Front Bumper Guard
52441 Base, Front Bumper Guard, NO.1 RH
52442 Base, Front Bumper Guard, NO.1 LH
52469 Cover, Front Bumper Guard, Center
76853B Cover, Front Spoiler, Center
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
