Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

18 part groups · 3 illustrations

Illustrations

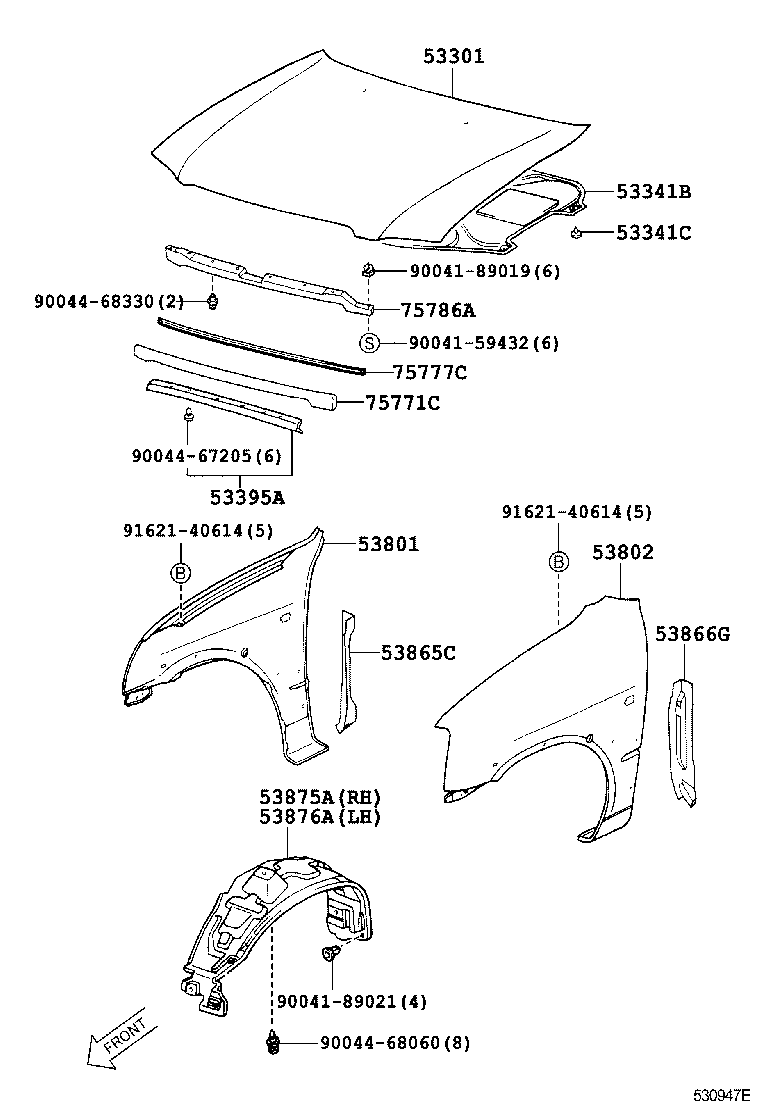

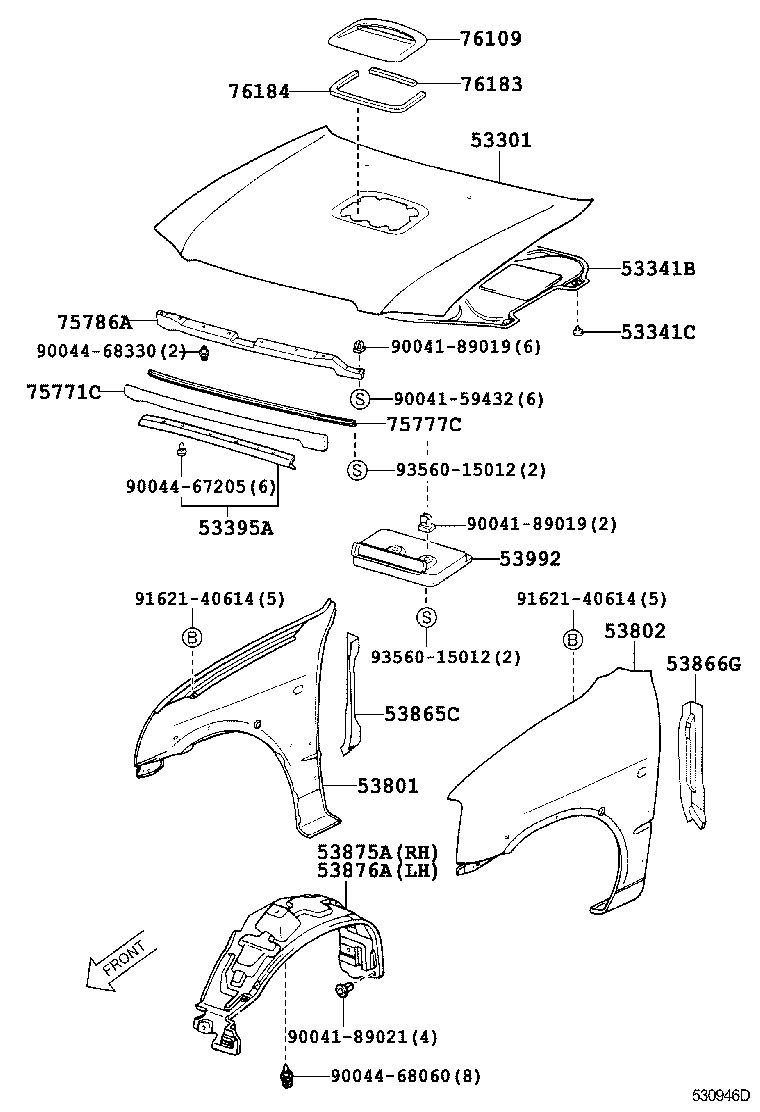

Figure 530849D 530849D 1999-05 → 2000-05 Figure 530947E 530947E 2000-05 → — Figure 530946D 530946D 2000-08 → —

Part groups

PNCDescription
53183F Seal, Headlamp Cover TO Hood
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53395A Seal, Hood TO Front End Panel, NO.1
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53865C Plate, Front Fender Extension, RH
53866G Plate, Front Fender Extension, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53992 Guide, Cool Air
75771C Moulding, Hood, Front
75777C Pad, Hood Front Moulding
75786A Retainer, Hood Front Moulding
76109 Guide Sub-assy, Hood Air Intake
76183 Protector, Hood Bulge, NO.1
76184 Protector, Hood Bulge, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
