Toyota Cami
1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan
Discontinued model
Data version 2006-07

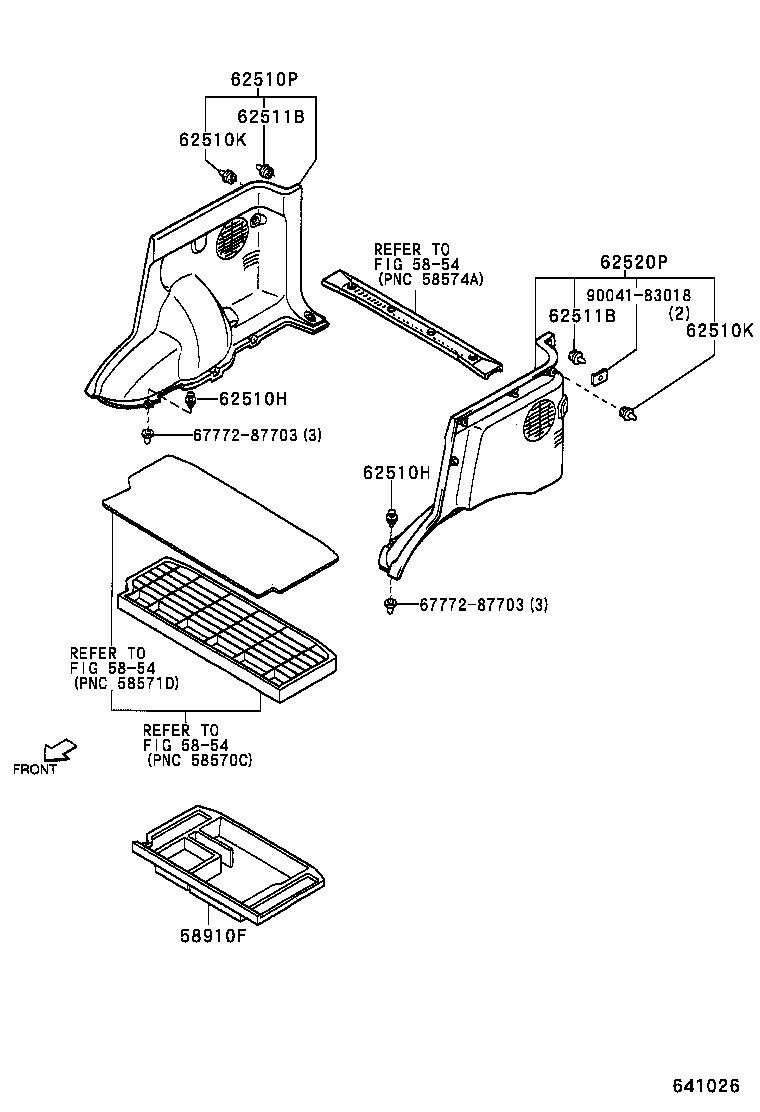

Inside Trim Board
26 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58910F | Box Assy, Rear Tray |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471F | Clip (FOR ROOF SIDE, INNER UPPER GARNISH) |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62471M | Clip |
| 62472A | Garnish, Roof Side, Inner LH |
| 62510H | Clip(FOR QUARTER TRIM FRONT PANEL) |
| 62510K | Clip(FOR QUARTER TRIM FRONT PANEL) |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 67772R | Cap, Door Trim Retainer |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918D | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
