Toyota Cami
1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan
Discontinued model
Data version 2006-07

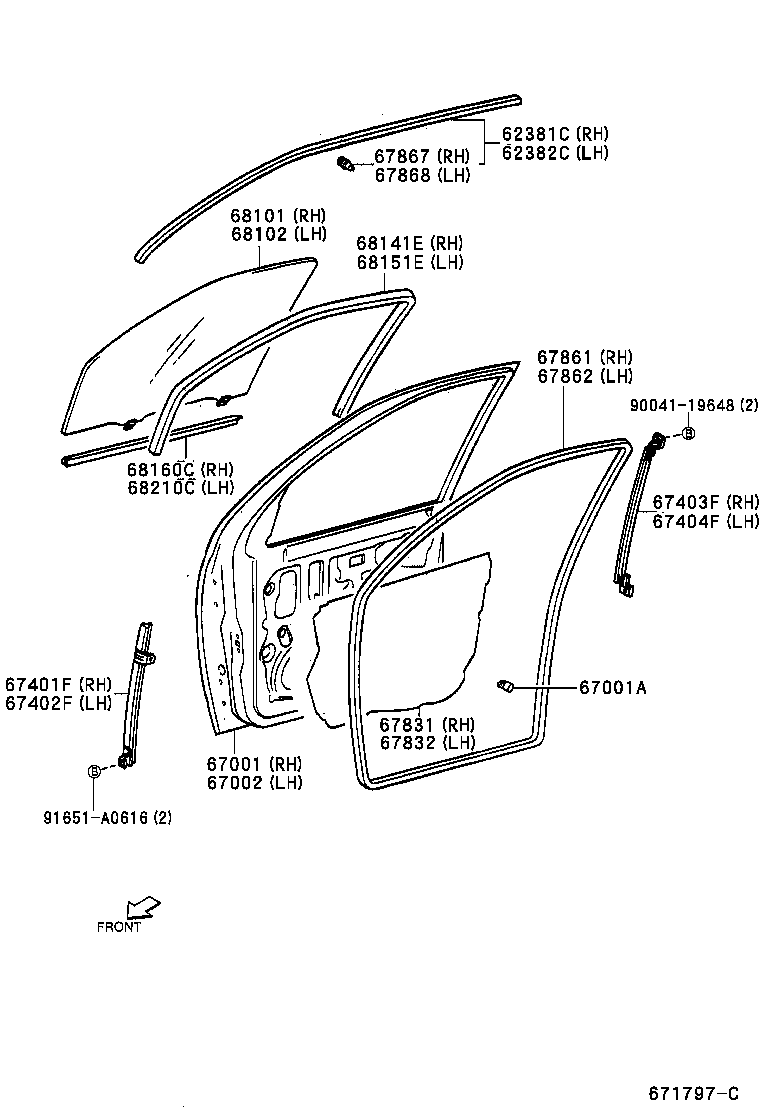

Front Door Panel & Glass
35 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 62381C | Weatherstrip, Roof Side Rail, Front RH |
| 62382C | Weatherstrip, Roof Side Rail, Front LH |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67625A | Bracket, Front Door Trim, NO.1 |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867 | Clip, Door Weatherstrip |
| 67868 | Clip, Front Door Glass Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141E | Run, Front Door Glass, RH |
| 68151E | Run, Front Door Glass, LH |
| 68160C | Weatherstrip Assy, Front Door Glass, Outer RH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68210C | Weatherstrip Assy, Front Door Glass, Outer LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 75921C | Tape, Black Out, NO.1 RH |
| 75922M | Tape, Black Out, NO.1 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
