Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

14 part groups · 3 illustrations

Illustrations

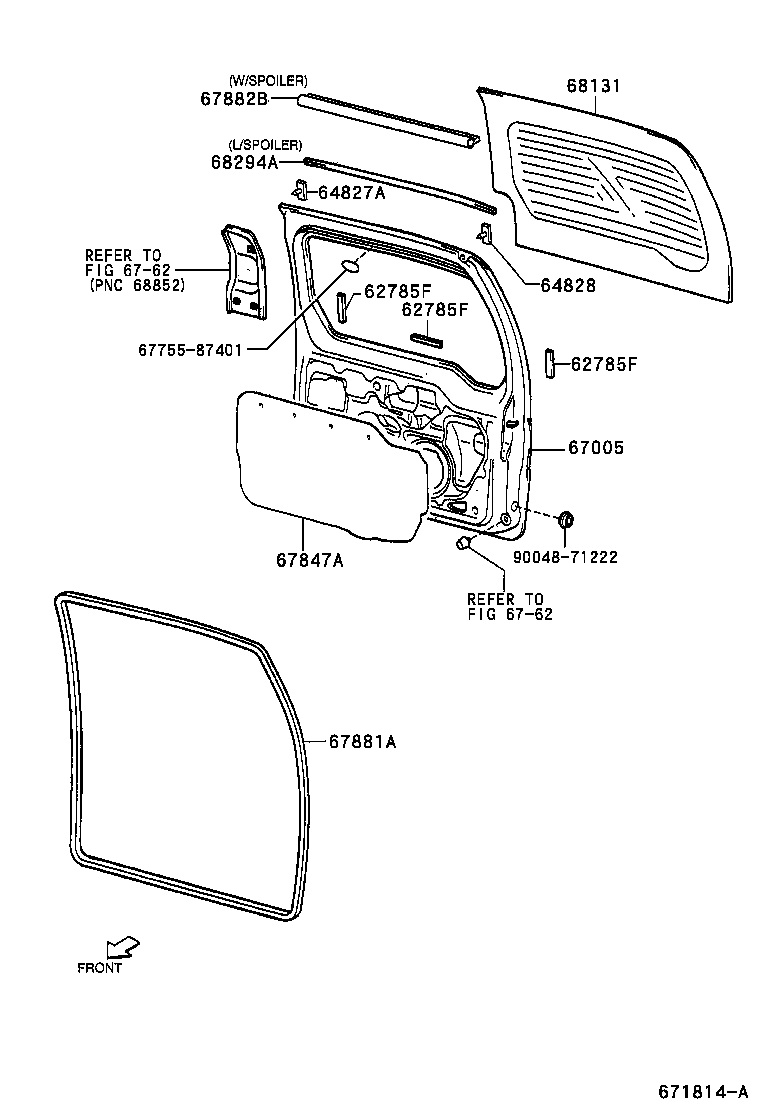

Figure 671789 671789 1999-05 → — Figure 671814A 671814A 1999-05 → — Figure 671815 671815 1999-05 → —

Part groups

PNCDescription
62785F Spacer, Back Door Glass
64780A Panel Assy, Back Door Trim
64780D Retainer(FOR BACK DOOR TRIM BOARD)
64827A Clip, Back Window Glass, RH
64828 Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67847A Cover, Back Door Service Hole
67881A Weatherstrip, Back Door
67882B Weatherstrip, Back Door, Upper LH
68131 Glass, Back Door
68294A Dam, Back Door Glass Adhesive
68611A Base, Back Door Check
68617B Pin, Back Door Check
68650 Check Assy, Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
