Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

7 part groups · 2 illustrations

Illustrations

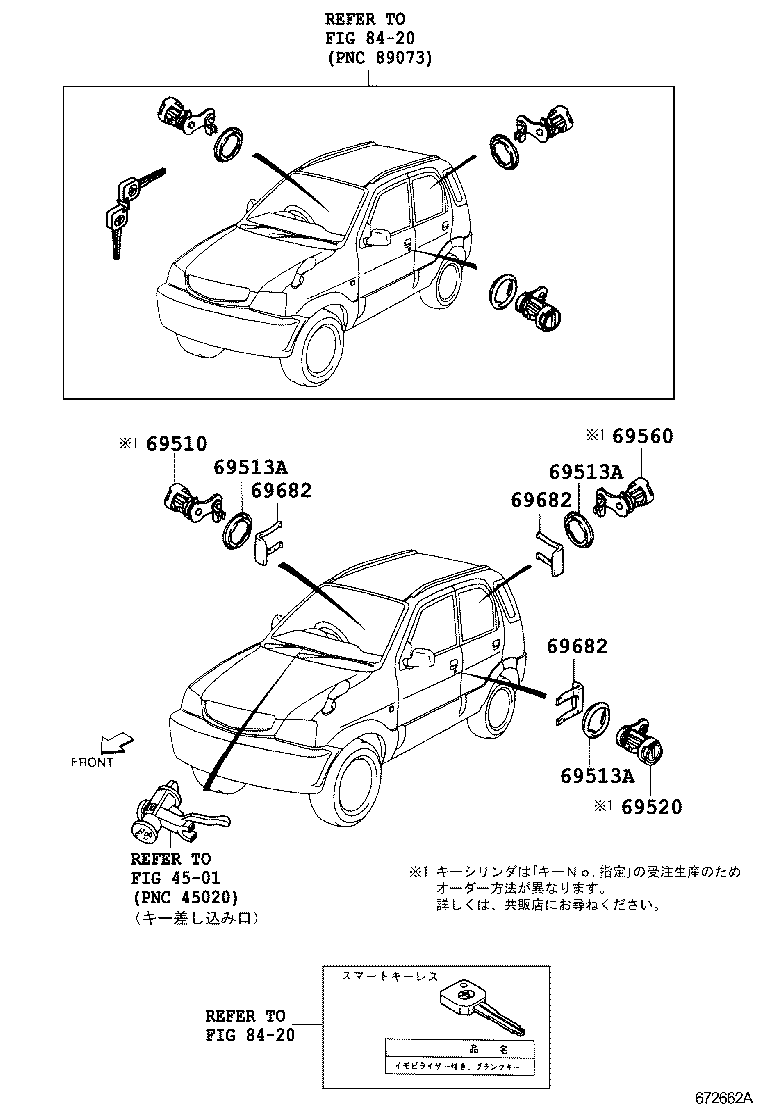

Figure 671818C 671818C 1999-05 → — Figure 672662A 672662A 2001-12 → —

Part groups

PNCDescription
69503 Cylinder Set, Lock
69510 Cylinder Assy, Front Door Lock, RH
69513A Pad, Door Cylinder
69520 Cylinder Assy, Front Door Lock, LH
69560 Cylinder Assy, Back Door Lock
69570 Cylinder Assy, Ignition Switch Lock
69682 Retainer, Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
