Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spoiler & Side Mudguard

8 part groups · 3 illustrations

Illustrations

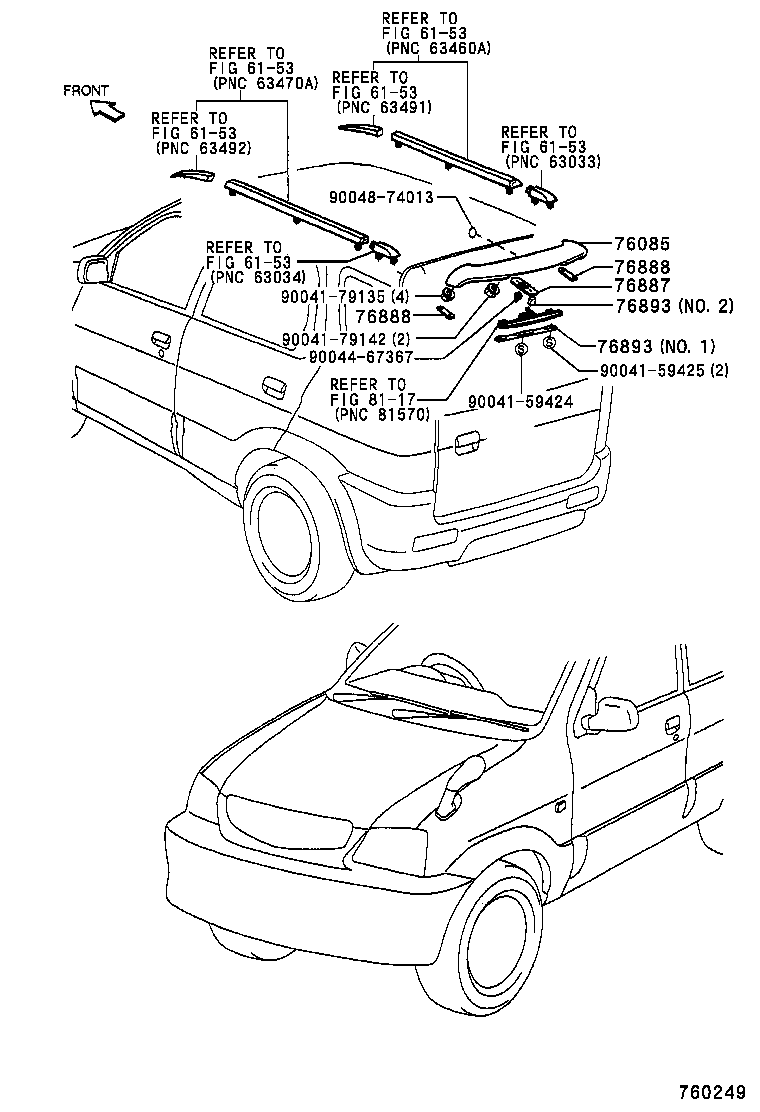

Figure 760250B 760250B 1999-05 → 2000-05 Figure 760250B 760250B 2000-08 → — Figure 760249 760249 2000-05 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76881 Protector, Rear Spoiler Side, NO.1 RH
76882 Protector, Rear Spoiler Side, NO.1 LH
76887 Seal, Rear Spoiler
76888 Protector, Rear Spoiler Side, NO.3
76893 Cover, Rear Spoiler, NO.1
76893A Cover, Rear Spoiler, RH
76894 Cover, Rear Spoiler, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
