Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

9 part groups · 2 illustrations

Illustrations

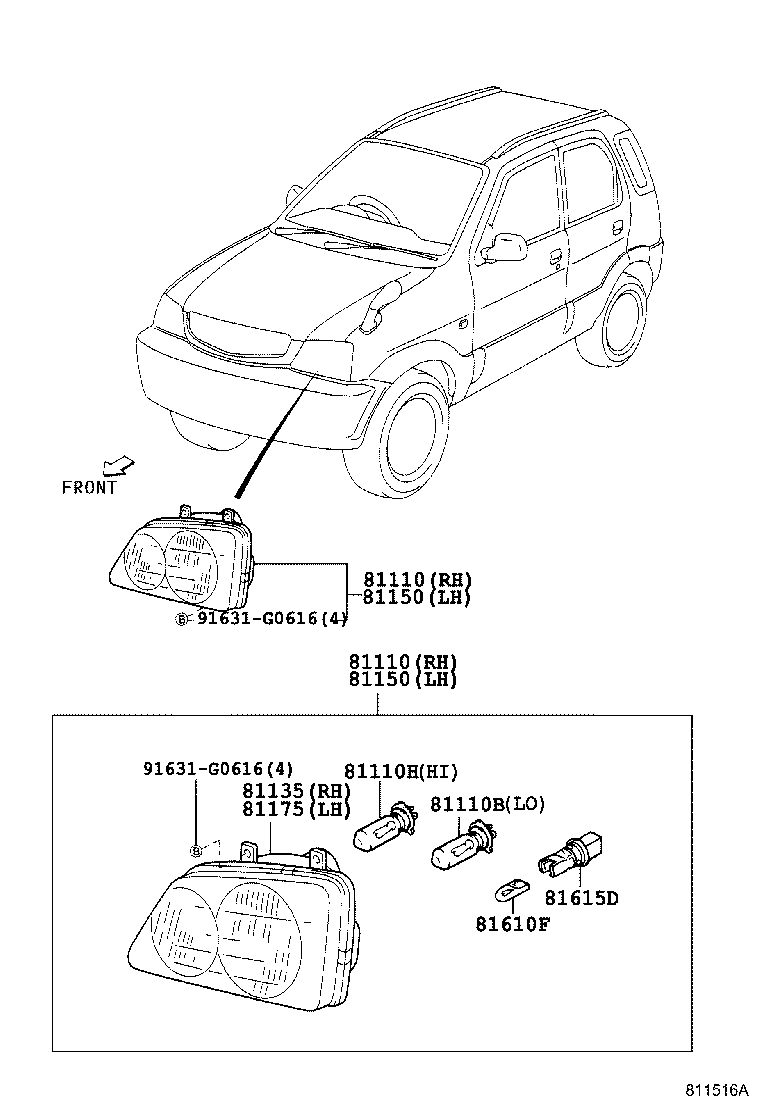

Figure 811293B 811293B 1999-05 → 2000-05 Figure 811516A 811516A 2000-05 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110H Bulb, Headlamp, NO.3
81135 Unit Assy, Headlamp, RH
81144C Cover, Headlamp Socket
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
