Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

12 part groups · 3 illustrations

Illustrations

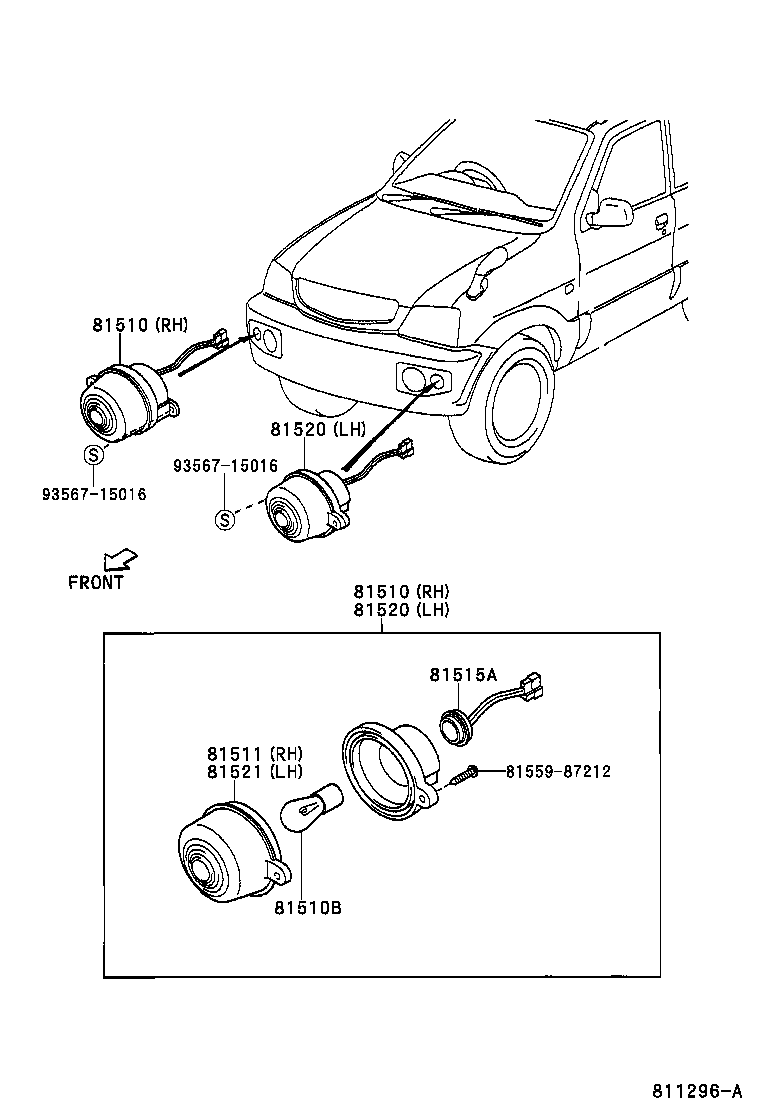

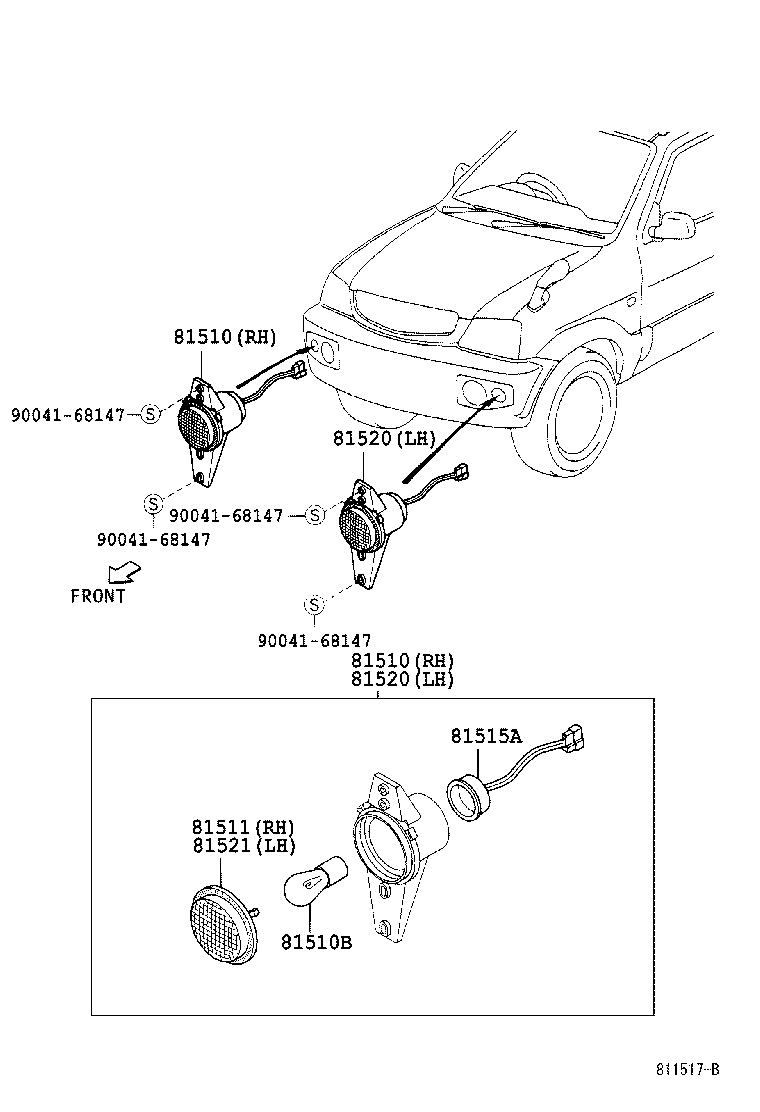

Figure 811295 811295 1999-05 → 2000-05 Figure 811296A 811296A 1999-05 → 2000-05 Figure 811517B 811517B 2000-05 → —

Part groups

PNCDescription
81015 Cord, Fog Lamp
81030 Lamp Assy, Front Fog And Turn Signal, RH
81040 Lamp Assy, Front Fog And Turn Signal, LH
81210F Bulb, Fog Lamp
81211E Unit, Front Fog And Turn Signal Lamp, RH
81221E Unit, Front Fog And Turn Signal Lamp, LH
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81515A Plug Assy, Front Turn Signal Lamp
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
