Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

21 part groups · 3 illustrations

Illustrations

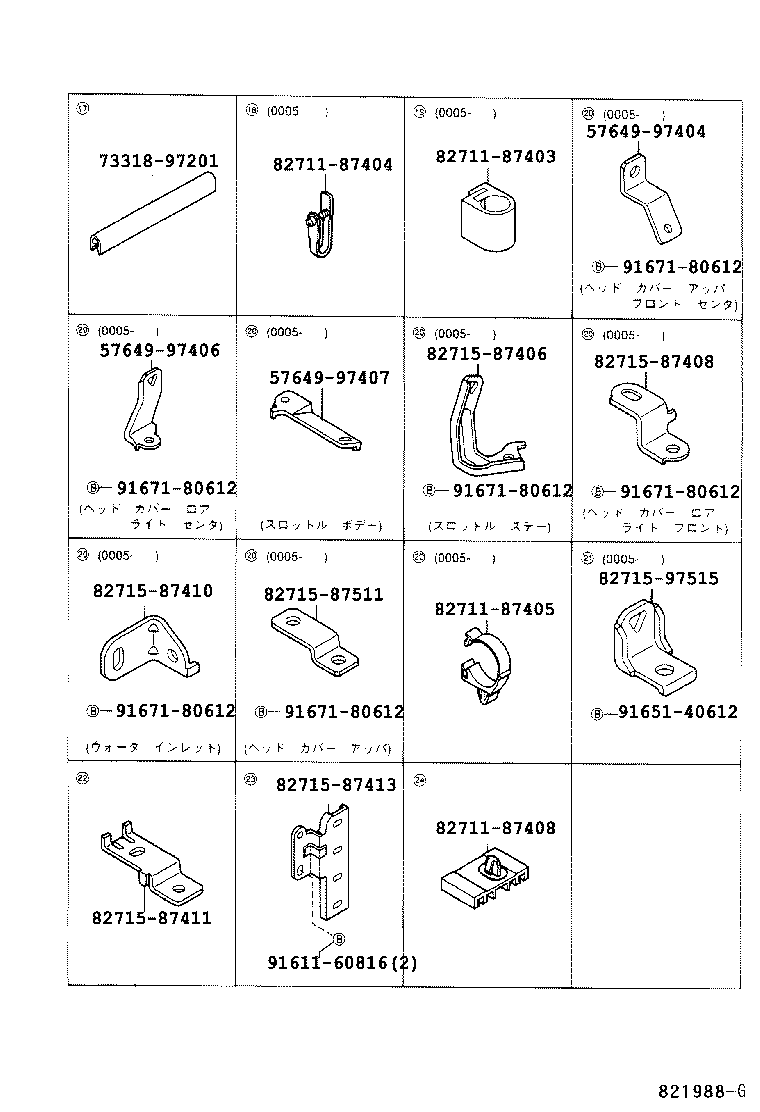

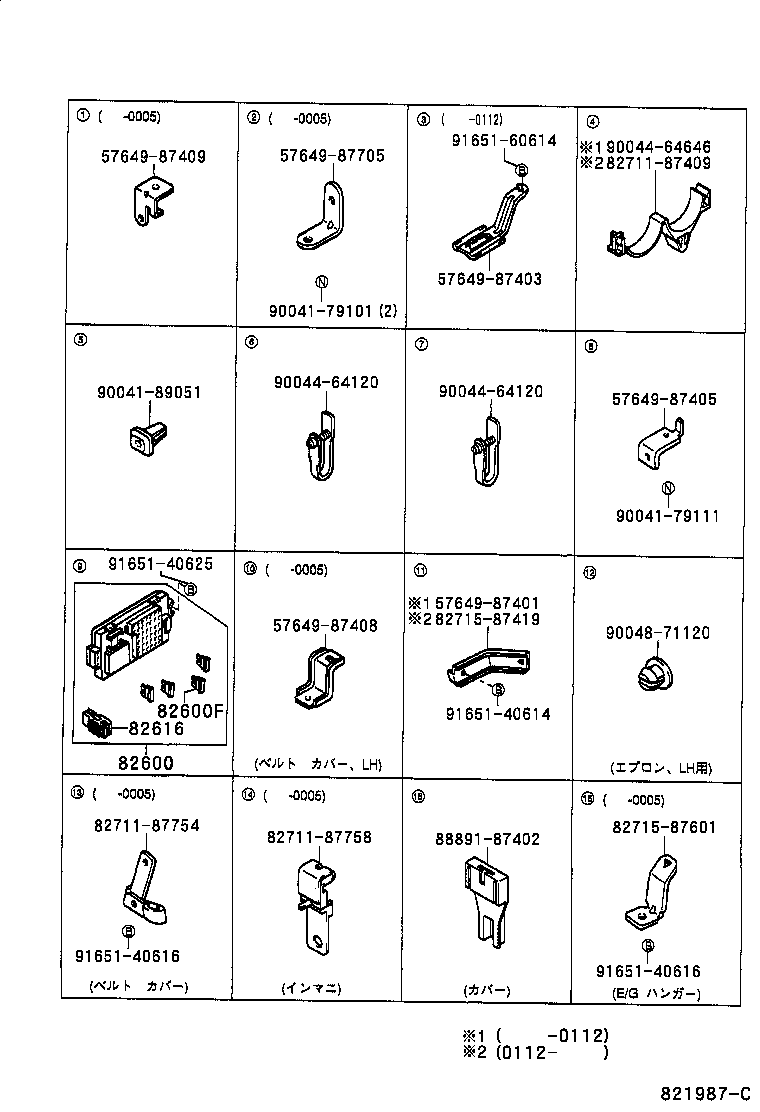

Figure 821986D 821986D 1999-05 → — Figure 821987C 821987C 1999-05 → — Figure 821988G 821988G 1999-05 → —

Part groups

PNCDescription
82121 Wire, Engine
82125 Wire, Transmission
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164C Wire, Floor, NO.4
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82219 Wire, Thermo Sensor
82231A Wire, Brake Warning Switch
82541C Wire, Seat Belt Warning
82600 Block Assy, Fuse
82600F Fuse, Fuse Block
82616 Puller, Fuse
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
