Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

10 part groups · 3 illustrations

Illustrations

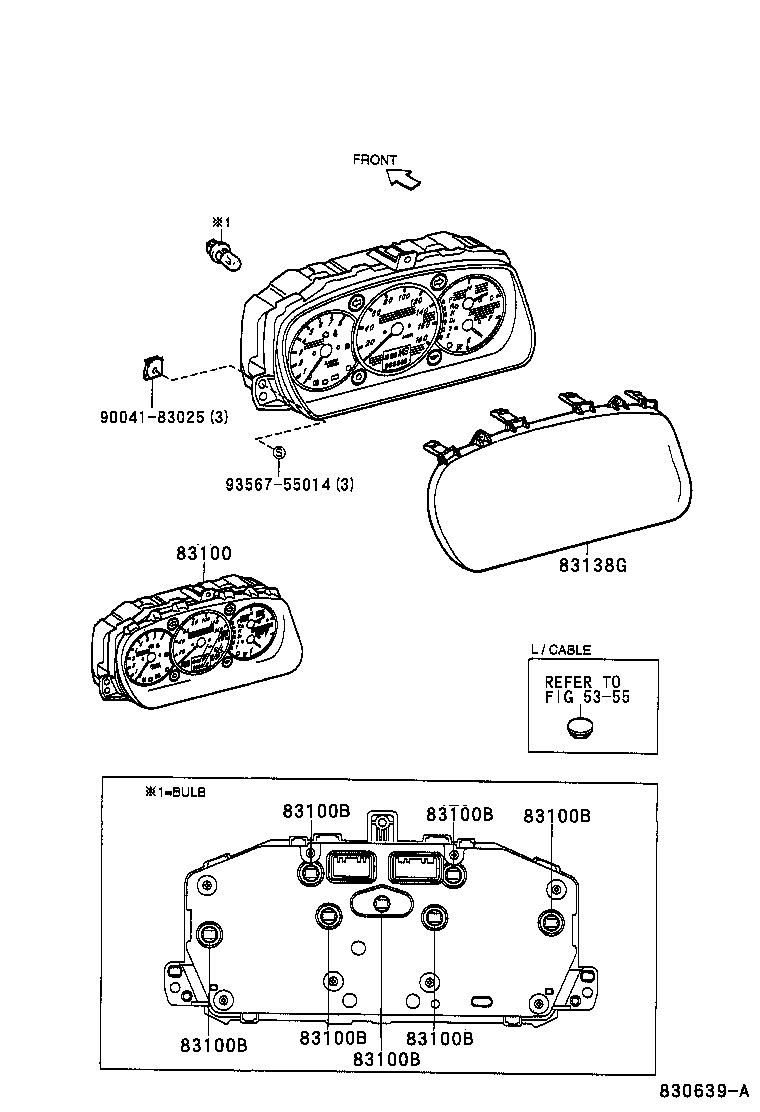

Figure 830570A 830570A 1999-05 → 2000-05 Figure 830571A 830571A 1999-05 → 2000-05 Figure 830639A 830639A 2000-05 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83110 Speedometer Assy
83132A Case, Meter
83133F Plate, Meter
83138G Glass, Combination Meter
83242 Tachometer Assy, Engine
83243B Gauge Assy, Combination
83247 Plate, Meter Circuit
83710 Cable Assy, Speedometer Drive, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
