Toyota Cami

1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

15 part groups · 2 illustrations

Illustrations

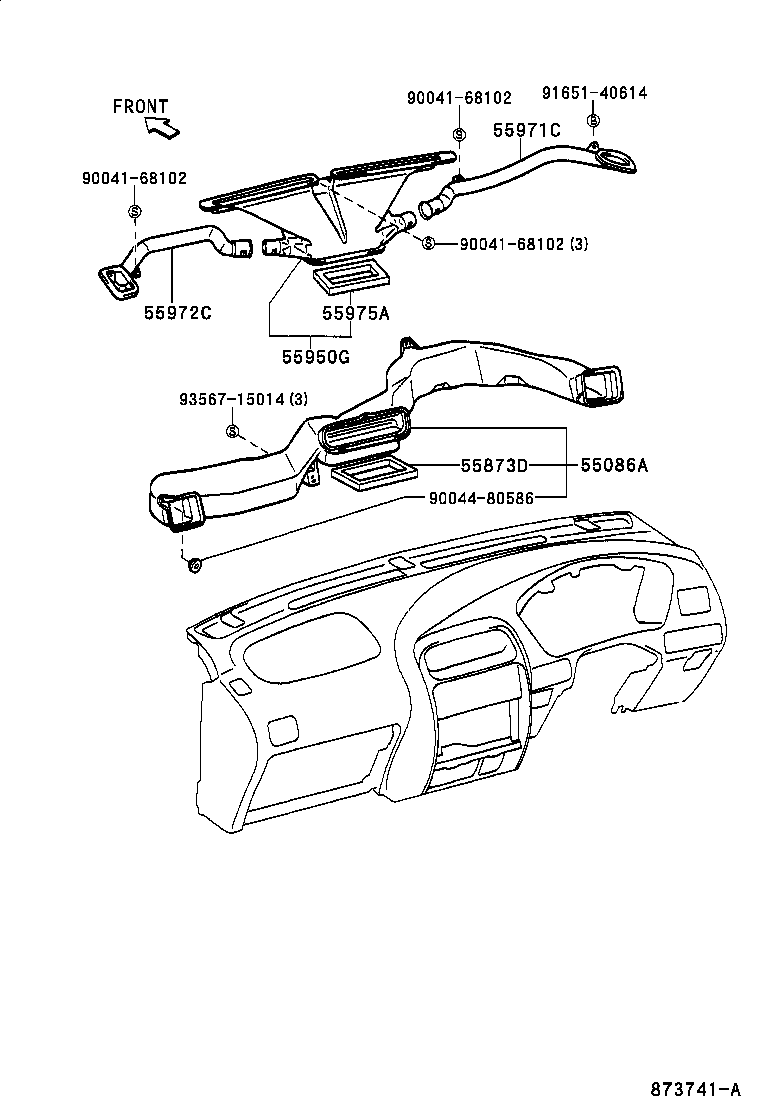

Figure 873740C 873740C 1999-05 → — Figure 873741A 873741A 1999-05 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55519 Plate, Heater Control Name
55873D Seal, Air Duct, Center
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55925 Knob, Heater Control Lever
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55975A Seal, Defroster Nozzle, NO.1
81942A Sheet, Heater Control Name, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
