Toyota Cami
1999-05 → 2005-12 · chassis J100E,J102E,J122E · catalogue 661130 · Japan
Discontinued model
Data version 2006-07

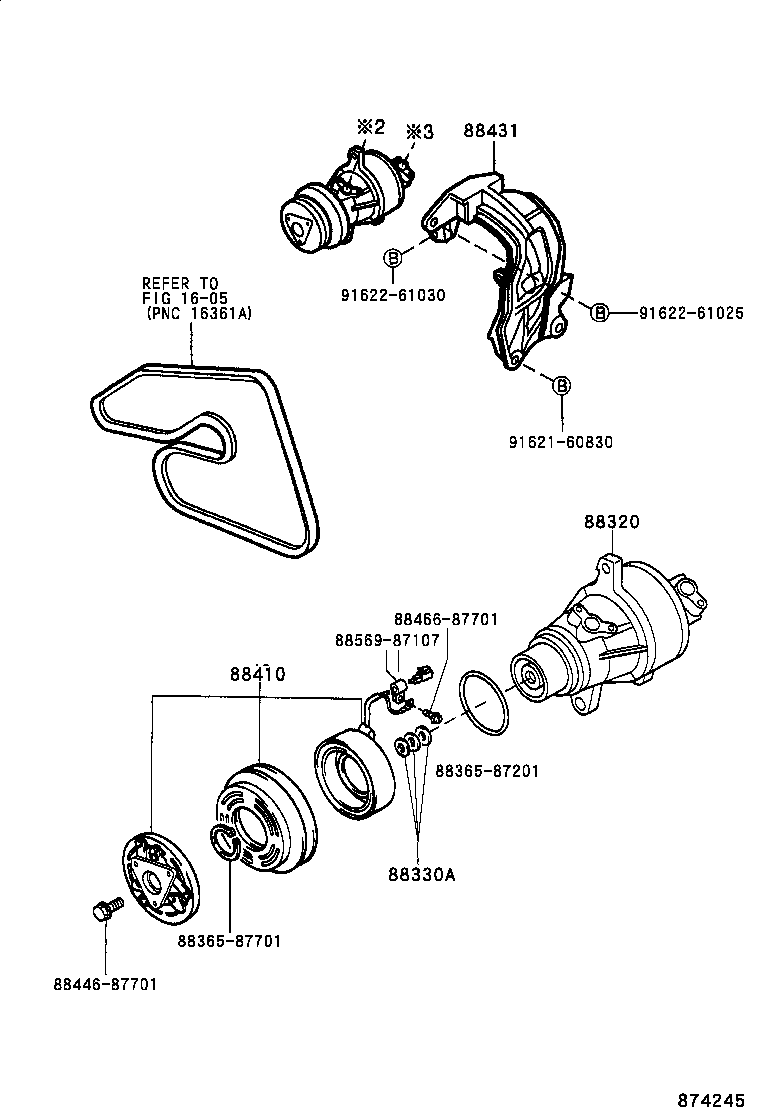

Heating & Air Conditioning - Compressor
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88389A | Wire, Compressor |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88440B | Pulley Assy, Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
