Toyota Rush

2006-01 → 2016-05 · chassis J200E,J210E · catalogue 661140 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

14 part groups · 2 illustrations

Illustrations

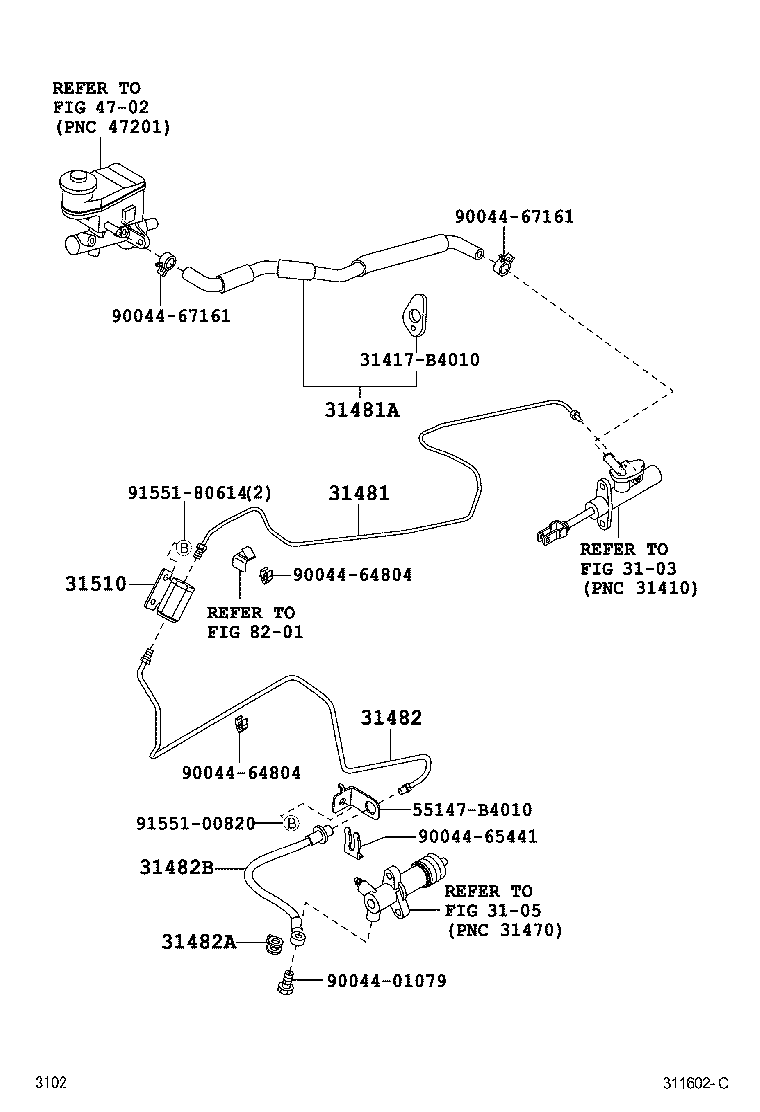

Figure 311603G 311603G 2006-01 → 2013-02 Figure 311602C 311602C 2006-01 → 2013-02

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301Q Bush(FOR CLUTCH PEDAL SPRING)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481A Hose, Clutch, NO.1
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31482A Gasket(FOR CLUTCH RELEASE CYLINDER)
31482B Hose, Clutch, NO.2
31510 Orifice Assy, Clutch
55107A Support Sub-assy, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
