Toyota Rush

2006-01 → 2016-05 · chassis J200E,J210E · catalogue 661140 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

11 part groups · 2 illustrations

Illustrations

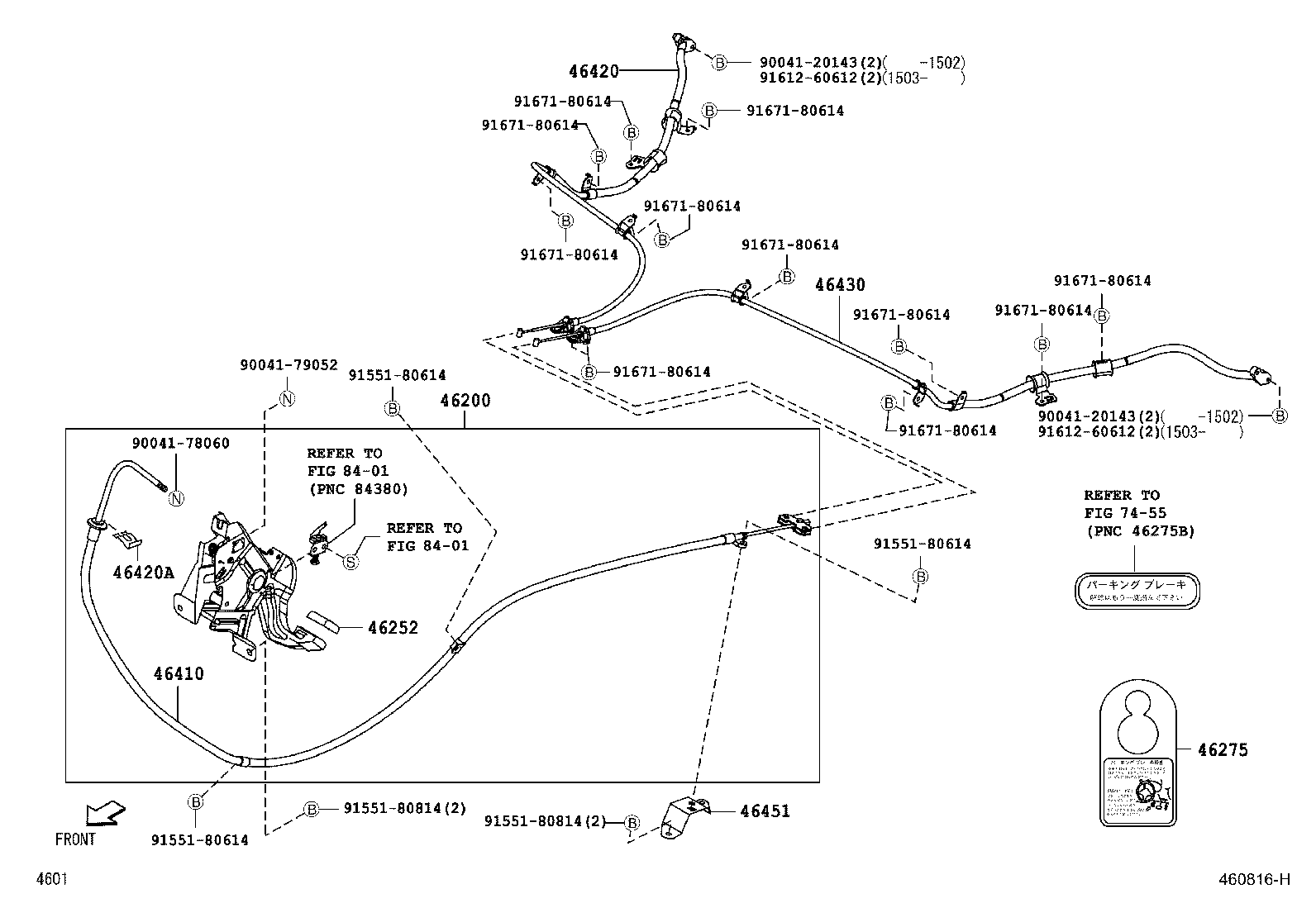

Figure 460815I 460815I 2006-01 → 2013-02 Figure 460816H 460816H 2006-01 → 2016-05

Part groups

PNCDescription
46200 Pedal Assy, Parking Brake Control
46201E Lever Sub-assy, Parking Brake
46252 Pad, Parking Pedal
46275 Plate, Parking Brake Release Caution
46302 Rod Sub-assy, Parking Brake Pull, NO.1
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46451 Bracket, Cable Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
