Toyota Rush

2006-01 → 2016-05 · chassis J200E,J210E · catalogue 661140 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

16 part groups · 3 illustrations

Illustrations

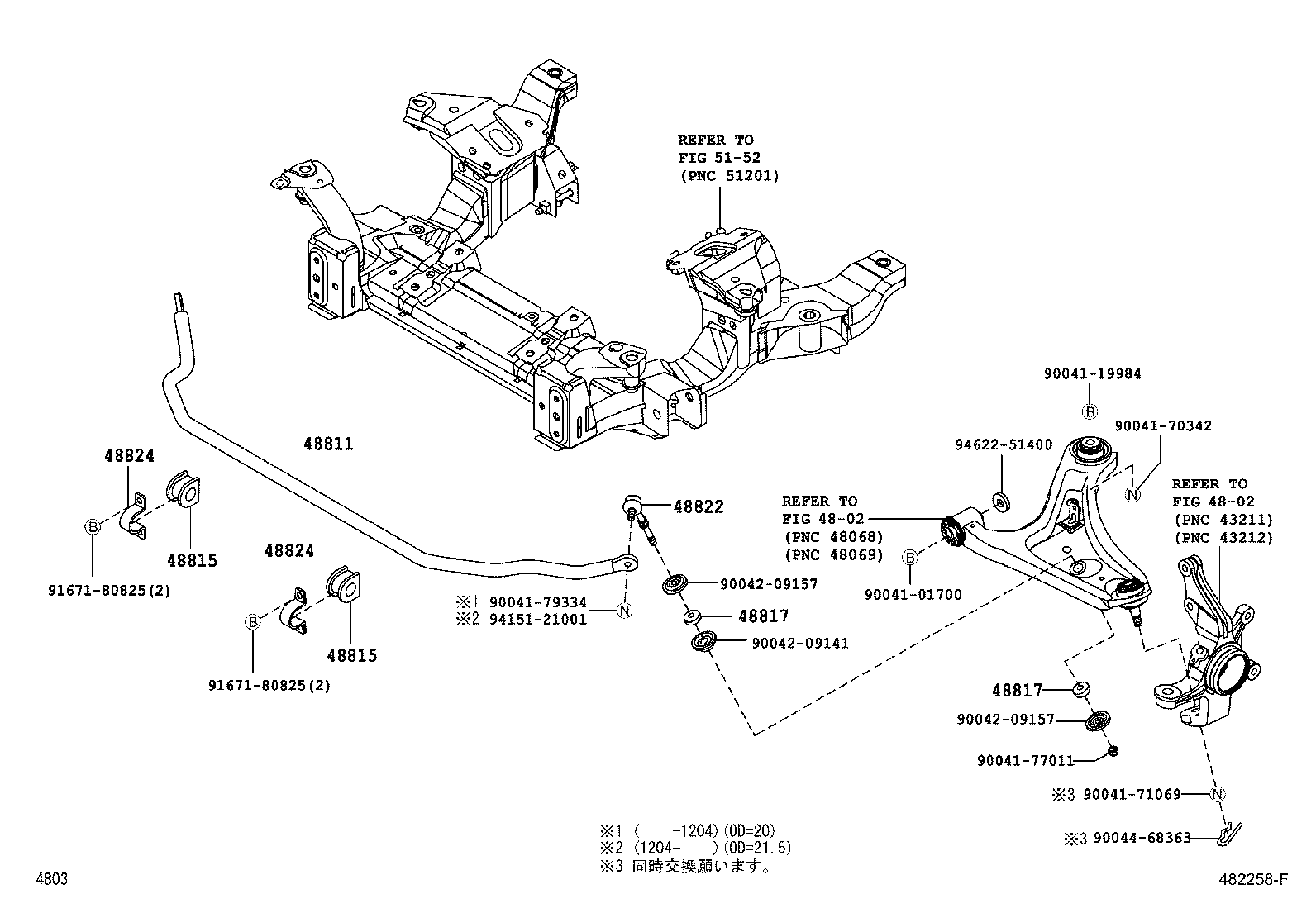

Figure 482259I 482259I 2006-01 → 2016-05 Figure 482260H 482260H 2006-01 → 2008-11 Figure 482258F 482258F 2006-01 → 2016-05

Part groups

PNCDescription
48044 Seat Sub-assy, Front Spring, NO.1
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48157 Insulator, Front Coil Spring, Upper
48331 Bumper, Front Spring, NO.1
48510 Absorber Assy, Shock, Front RH
48520 Absorber Assy, Shock, Front LH
48559A Cover, Front Shock Absorber Dust, RH NO.1
48559B Cover, Front Shock Absorber Dust, LH NO.1
48609A Support Sub-assy, Front Suspension
48684 Cover, Bearing Dust
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48817 Cushion, Front Stabilizer
48822 Rod, Stabilizer Link
48824 Bracket, Stabilizer, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
