Toyota Rush

2006-01 → 2016-05 · chassis J200E,J210E · catalogue 661140 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

28 part groups · 2 illustrations

Illustrations

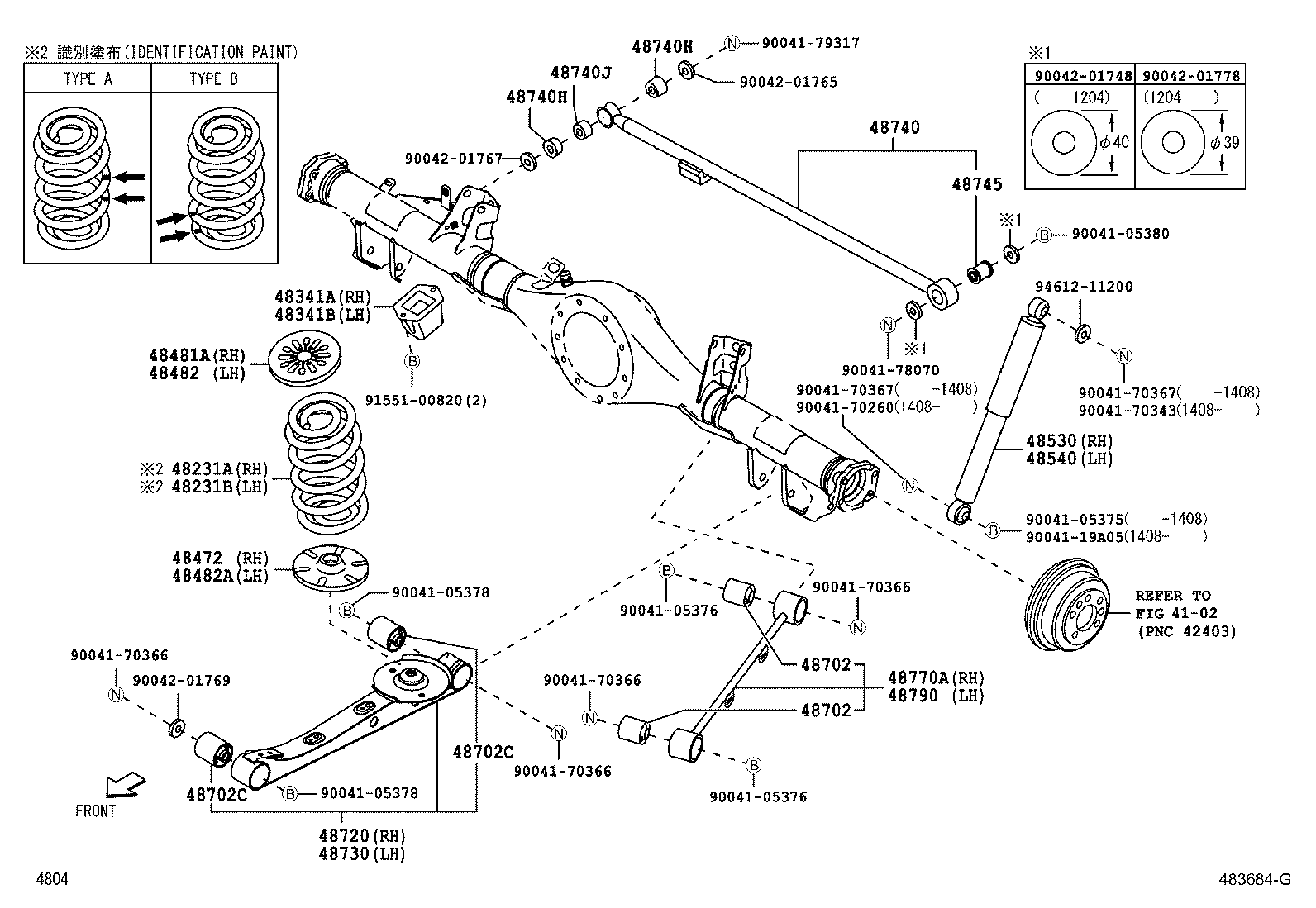

Figure 482262E 482262E 2006-01 → 2016-05 Figure 483684G 483684G 2006-01 → 2016-05

Part groups

PNCDescription
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48472 Seat, Rear Spring, Lower
48481A Seat, Rear Coil Spring, Upper RH
48482 Seat, Rear Spring, Upper LH
48482A Seat, Rear Spring, Lower
48530 Absorber Assy, Shock, Rear RH
48540 Absorber Assy, Shock, Rear LH
48702 Bush Sub-assy, Upper Control Arm
48702C Bush Sub-assy, Lower Control Arm
48720 Arm Assy, Lower Control, RH
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48740H Bush, NO.1(FOR REAR LATERAL CONTROL ROD)
48740J Bush, NO.2(FOR REAR LATERAL CONTROL ROD)
48745 Bush, Lateral Control Rod
48770A Arm Assy, Upper Control, Rear RH
48790 Arm Assy, Upper Control, Rear LH
48802 Link Sub-assy, Stabilizer
48802D Bush, Stabilizer Link
48805 Bar Sub-assy, Rear Stabilizer
48805A Bush(FOR REAR STABILIZER BAR)
48807 Bracket, Rear Stabilizer Bar, RH
48808 Bracket, Rear Stabilizer Bar, LH
48815R Bush, Stabilizer(FOR REAR)
48824R Bracket, Stabilizer(FOR REAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
