Factory parts data · Europe

Toyota Rush

2006-01 → 2016-05 · chassis J200E,J210E · catalogue 661140 · Japan

Supported model Data version 2016-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

5 part groups · 2 illustrations

Illustrations

Figure 522256F

522256F 2006-01 → 2008-11

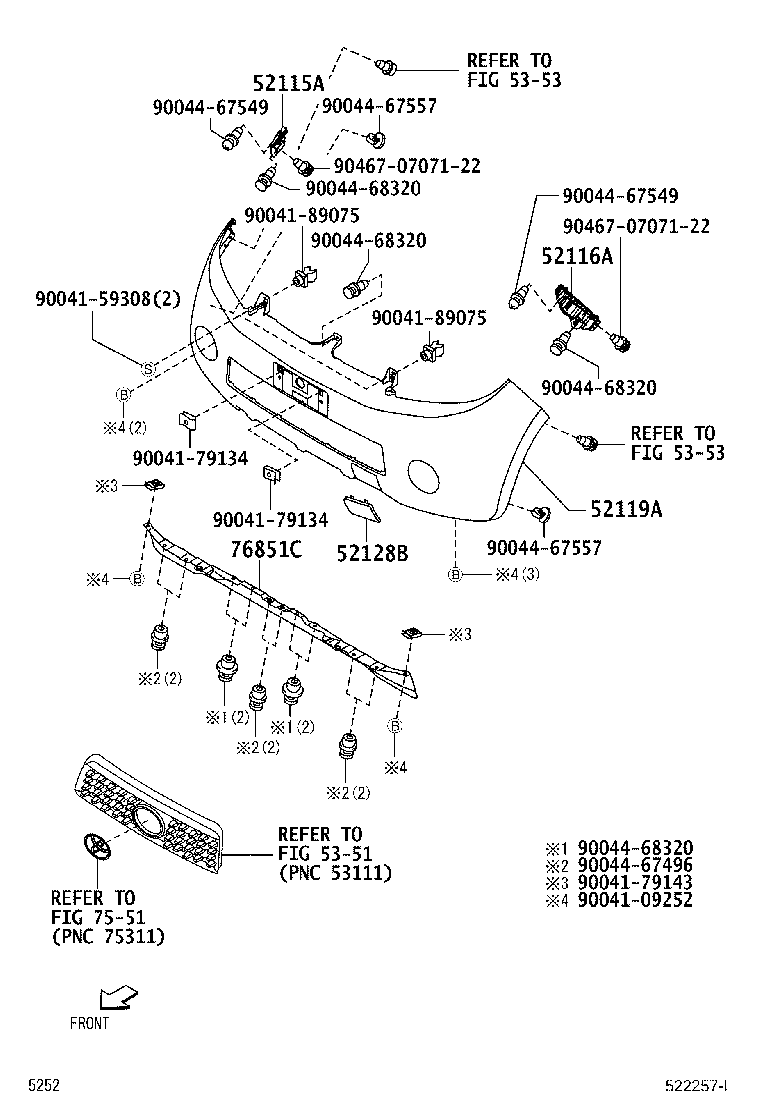

Figure 522257I

522257I 2008-11 → 2016-05

Part groups

PNC	Description
52115A	Support, Front Bumper Side, RH
52116A	Support, Front Bumper Side, LH
52119A	Cover, Front Bumper
52128B	Cover, Front Bumper Hole, LH
76851C	Front Spoiler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
