Toyota Rush

2006-01 → 2016-05 · chassis J200E,J210E · catalogue 661140 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

11 part groups · 3 illustrations

Illustrations

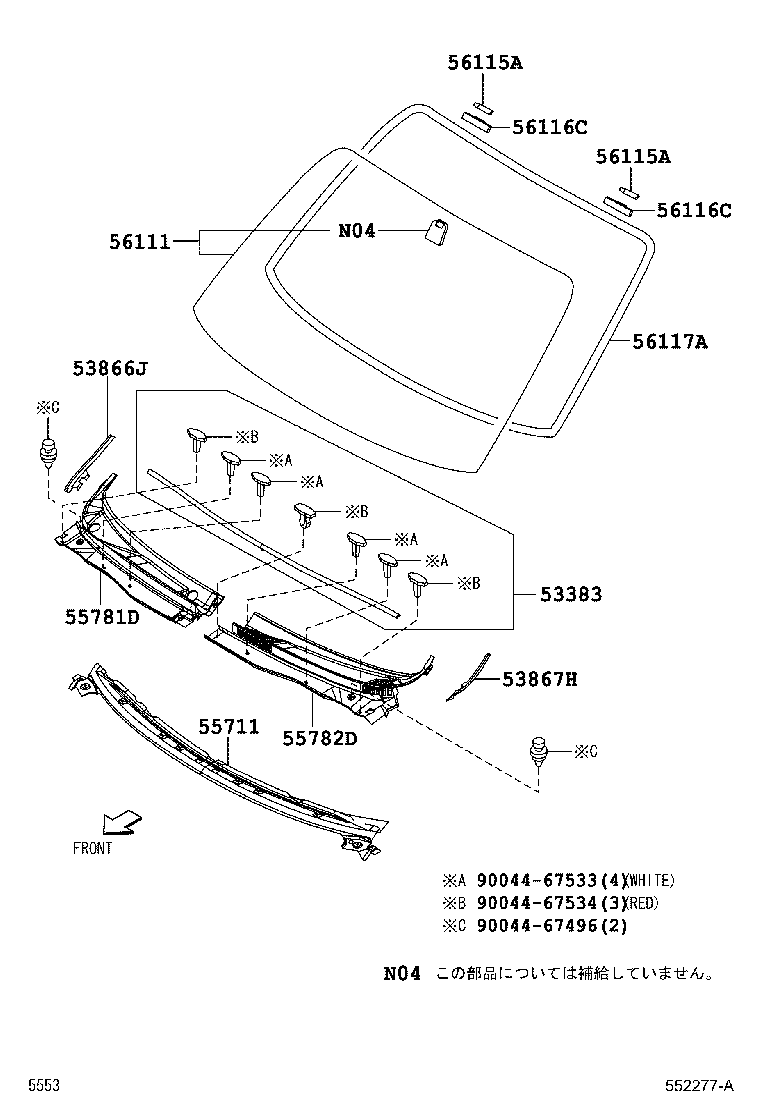

Figure 551615D 551615D 2006-01 → 2008-11 Figure 552277A 552277A 2008-11 → 2016-05 Figure 551617A 551617A 2006-01 → 2016-05

Part groups

PNCDescription
53383 Seal, Hood TO Cowl Top
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
55703A Panel Sub-assy, Cowl Top, Inner
55711 Panel, Cowl Top, Outer
55781D Louver, Cowl Top Ventilator, RH
55782D Louver, Cowl Top Ventilator, LH
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
