Toyota Rush

2006-01 → 2016-05 · chassis J200E,J210E · catalogue 661140 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

19 part groups · 3 illustrations

Illustrations

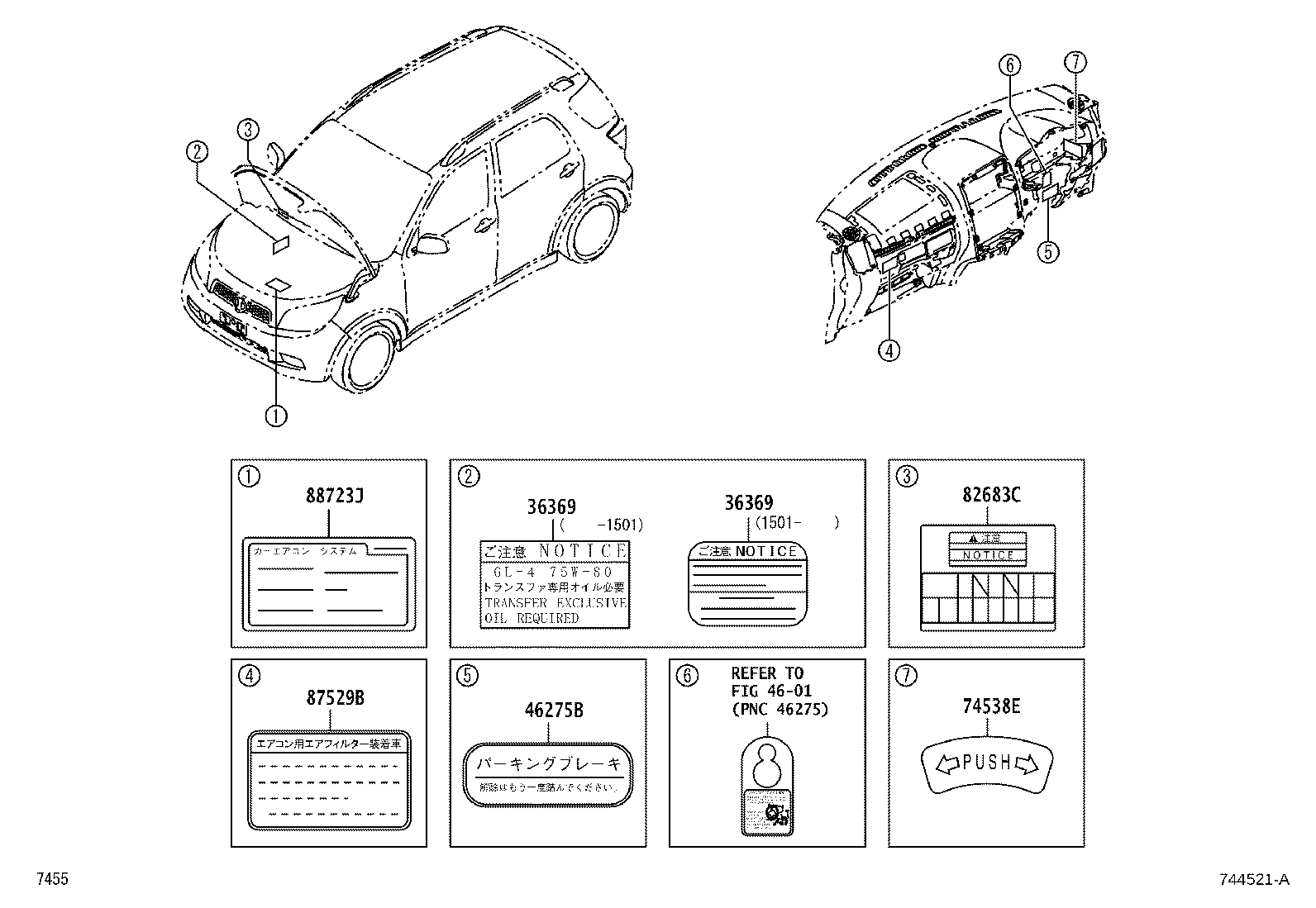

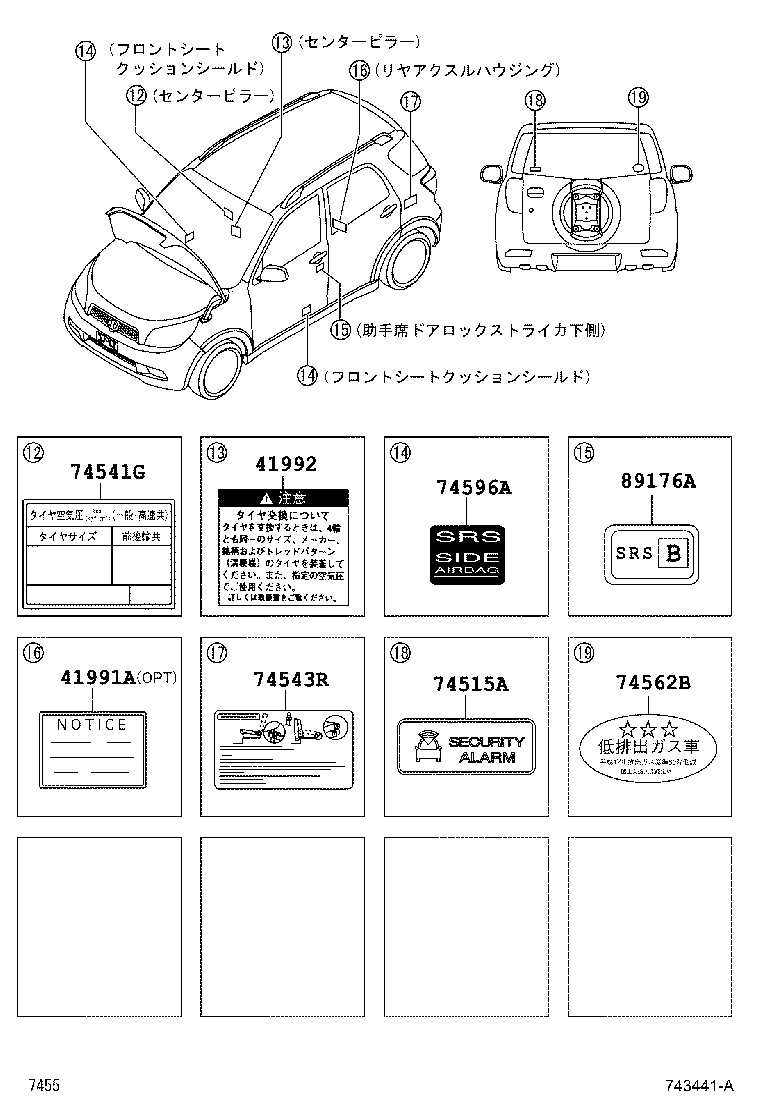

Figure 745630 745630 2006-01 → 2016-05 Figure 744521A 744521A 2006-01 → 2016-05 Figure 743441A 743441A 2006-01 → 2016-05

Part groups

PNCDescription
11291B Plate, Engine Name
11293C Label, Tune-up Specification Information
11293D Label, Engine Caution
11293E Label, Engine Caution, NO.2
16793E Label, Cooling Fan Caution
36369 Label, Transfer Information
41991A Plate, Caution
41992 Label, Differential Notice
46275B Label, Parking Brake Release Information, NO.2
74515A Plate, Theft Warning
74538E Label, Ignition Swich Notice
74541G Plate, Safety Caution
74543R Label, Rear Seat Caution
74562B Label, Emission Information
74596A Label, Side Airbag Caution
82683C Label, Fuse Block Notice
87529B Label, A/C Filter Information
88723J Label, Cooler Service Caution, NO.2
89176A Label, Airbag Deployment Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
