Toyota Rush

2006-01 → 2016-05 · chassis J200E,J210E · catalogue 661140 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

20 part groups · 3 illustrations

Illustrations

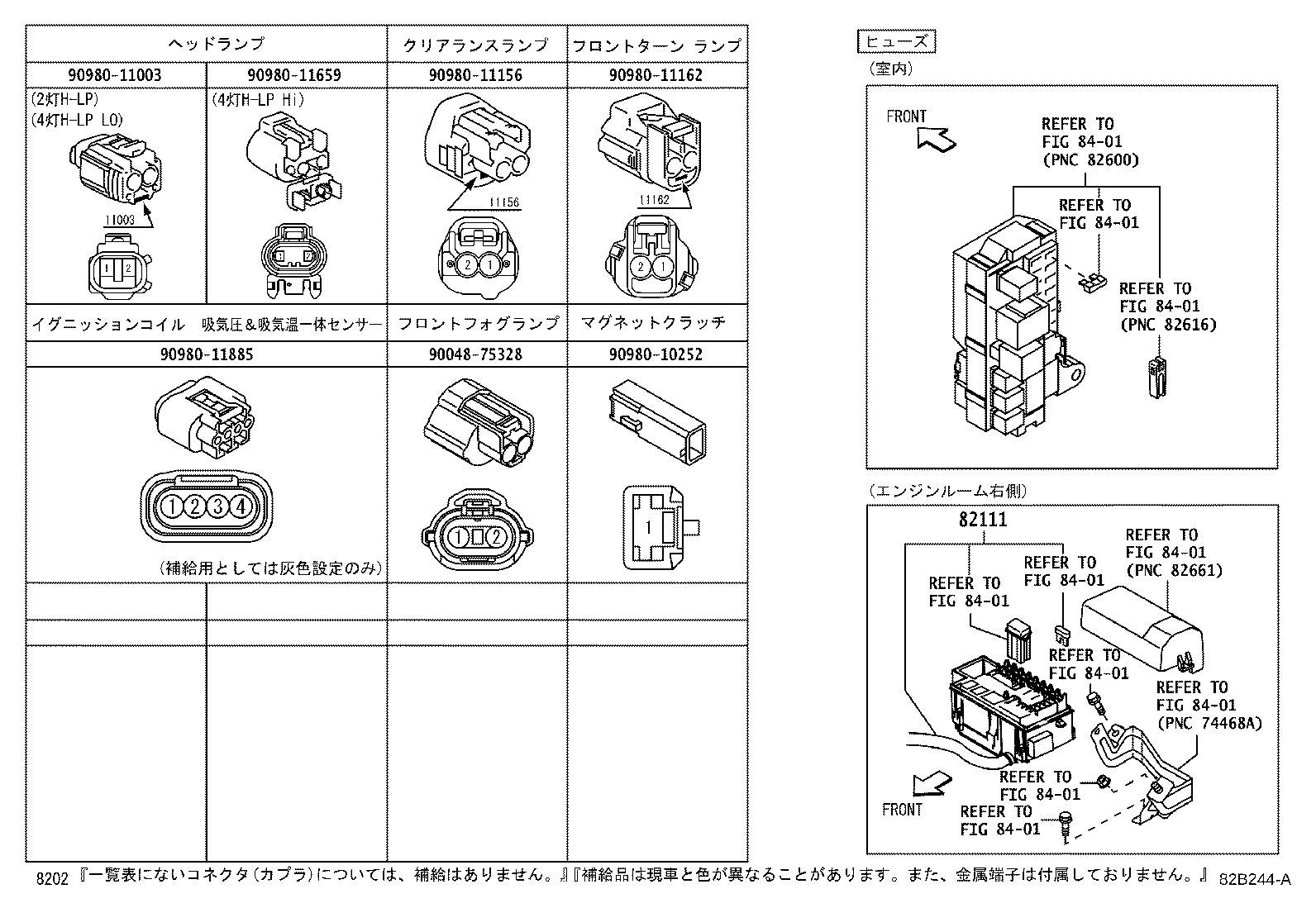

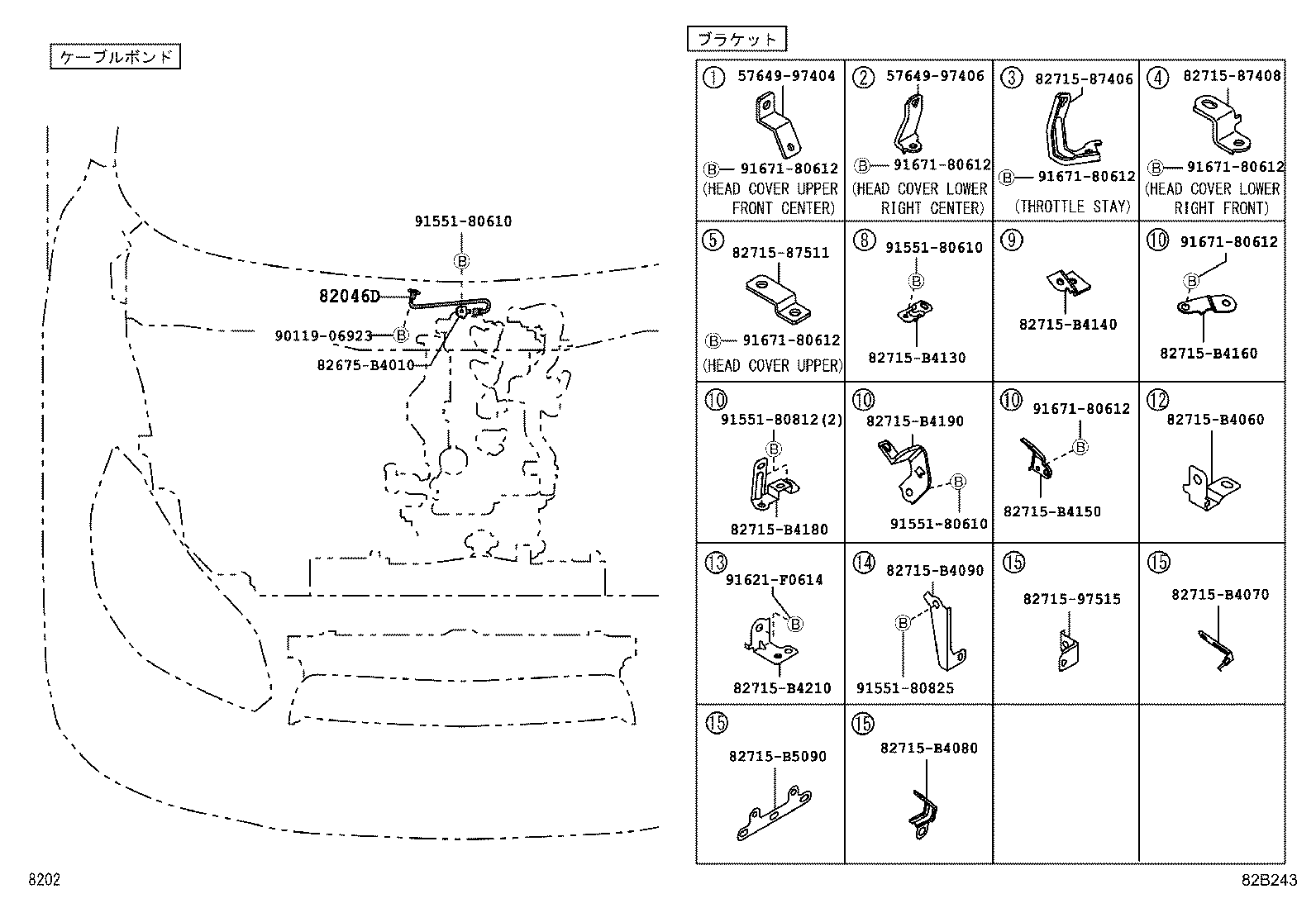

Figure 824741O 824741O 2006-01 → 2016-05 Figure 82B243 82B243 2006-01 → 2016-05 Figure 82B244A 82B244A 2006-01 → 2016-05

Part groups

PNCDescription
82046D Wire, Body Ground
82090A Wire Assy, Extension
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82223 Wire, Switch
82666G Holder, Connector NO.8
82730B Block Assy, Passenger Side Junction
82817M Protector, Wiring Harness, NO.12
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
