Toyota Rush

2006-01 → 2016-05 · chassis J200E,J210E · catalogue 661140 · Japan

Supported model Data version 2016-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

11 part groups · 2 illustrations

Illustrations

Figure 847611G

847611G 2006-01 → 2014-09

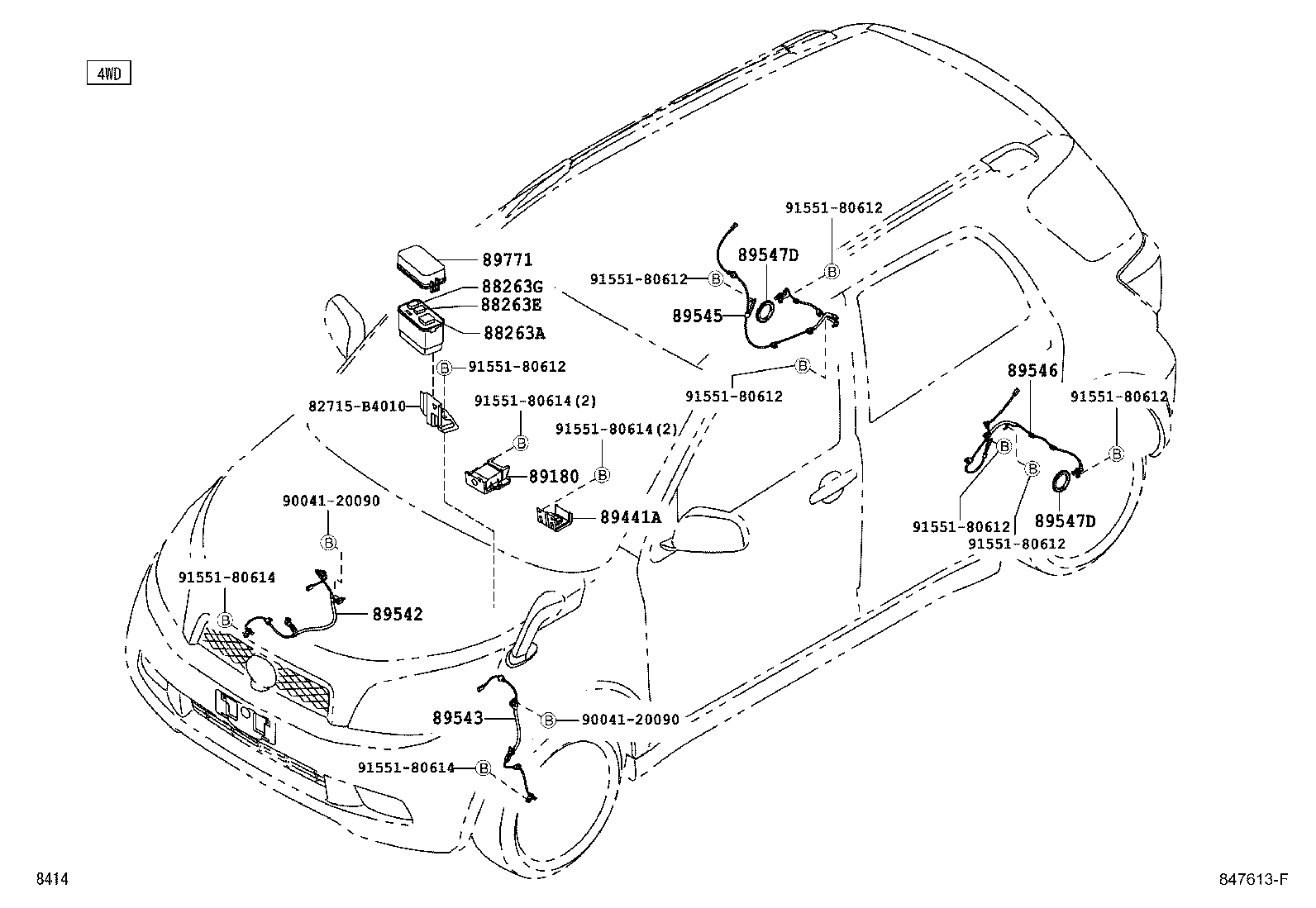

Figure 847613F

847613F 2006-01 → 2016-05

Part groups

PNC	Description
88263A	Relay, Skid Control
88263E	Relay, Skid Control NO.2
88263G	Relay, Skid Control
89180	Sensor Assy, Yawrate
89441A	Sensor, Deceleration
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89547D	Rotor, Skid Control Sensor
89771	Cover, Abs Relay Block, Upper

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
