Heating & Air Conditioning - Cooler Unit

21 part groups · 3 illustrations

Illustrations

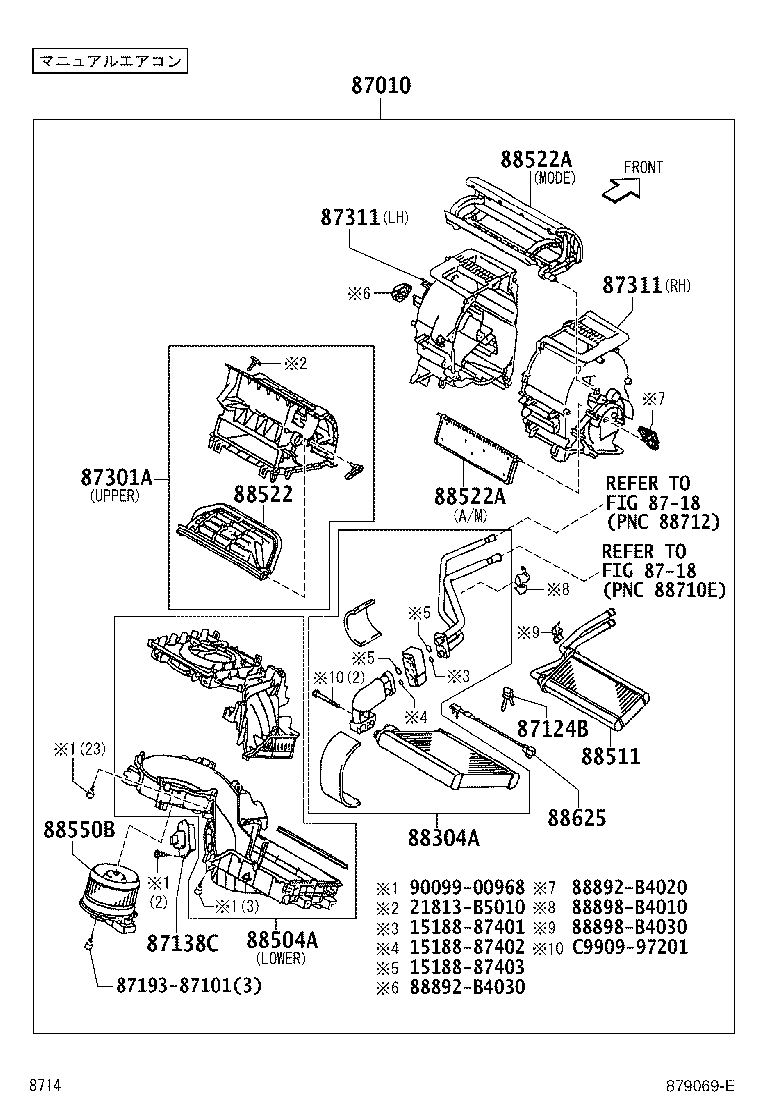

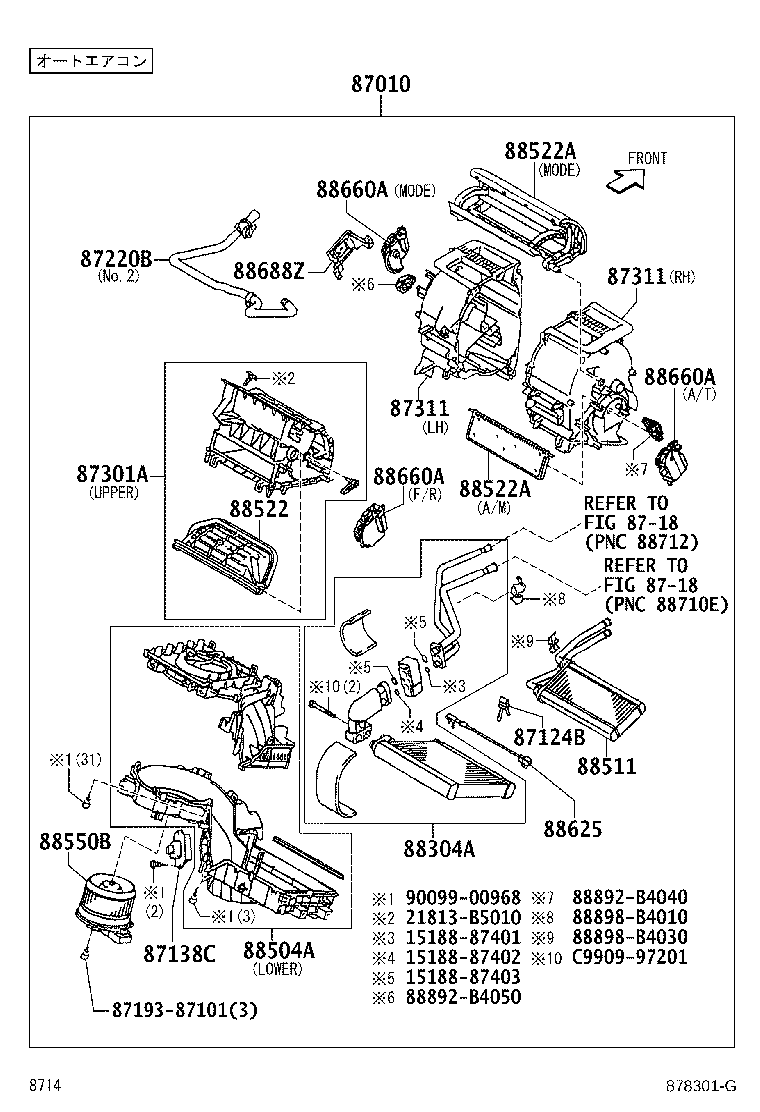

Figure 878300C 878300C 2006-01 → 2016-05 Figure 878301G 878301G 2006-01 → 2016-05 Figure 879069E 879069E 2006-01 → 2016-05

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87124B Clamp, Heater
87138C Resistor, Blower
87220B Duct Assy, Air
87301A Case Sub-assy, Heater
87311 Case, Heater, NO.1
88304A Cooler, Evaporator
88504A Case Sub-assy, Blower
88511 Core, Evaporator
88522 Door, Cooling Unit
88522A Door, Cooling Unit NO.2
88539J Hose, Drain Cooler
88550B Motor Assy, Blower
88568B Filter, Air
88625 Thermistor, Cooler, NO.1
88650E Amplifier Assy, Air Conditioner, NO.1
88660A Servo Assy, Air Conditioner, NO.1
88688Z Bracket
88892N Cover, Cooler, NO.2
88897K Grommet, (FOR COOLER PIPE)
88897L Grommet (FOR DRAIN HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
