Toyota Rush

2006-01 → 2016-05 · chassis J200E,J210E · catalogue 661140 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

20 part groups · 3 illustrations

Illustrations

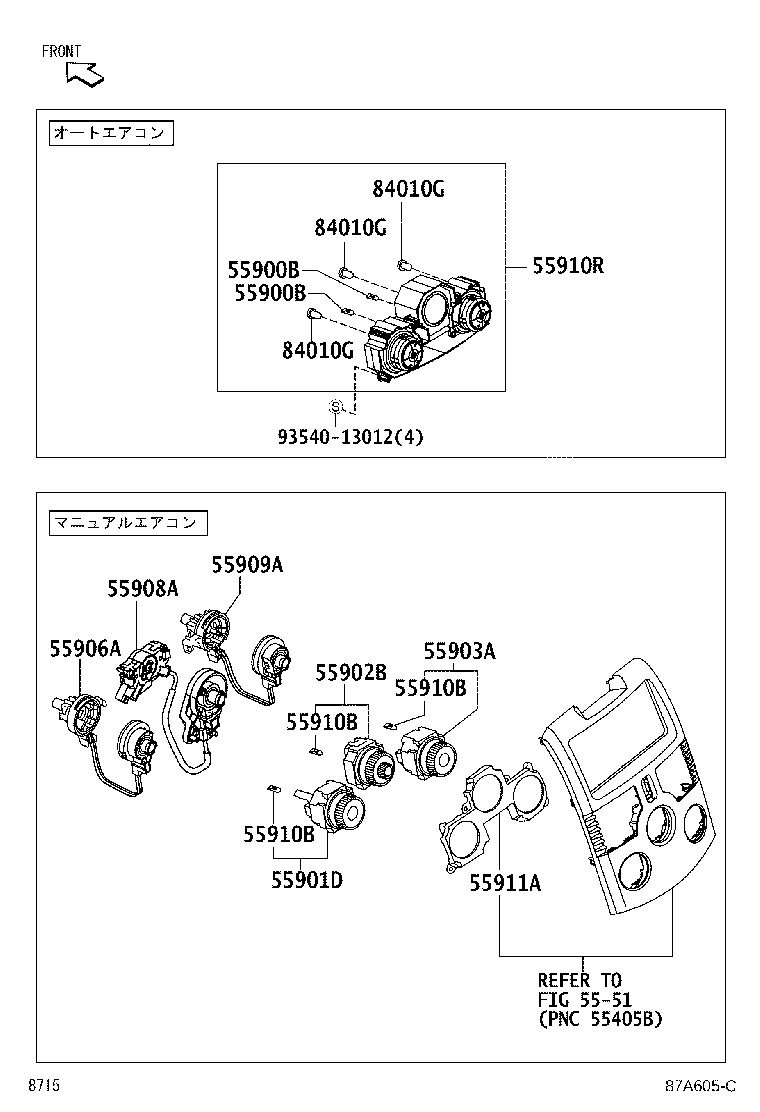

Figure 878297D 878297D 2006-01 → 2016-05 Figure 878298E 878298E 2006-01 → 2016-05 Figure 87A605C 87A605C 2006-01 → 2016-05

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55873D Seal, Air Duct, Center
55900B Bulb, Air Conditioner Control
55901D Control Sub-assy, Heater, NO.1
55902B Control Sub-assy, Heater
55903A Control Sub-assy, Heater, NO.3
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55910R Control Assy, Heater
55911A Base, Heater Control
55950G Nozzle Assy, Defroster
55975A Seal, Defroster Nozzle, NO.1
84010G Bulb, Integration Control & Panel
87201 Duct Sub-assy, Air, NO.1
88051 Generator Sub-assy, Ion
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
