Toyota Rush
2006-01 → 2016-05 · chassis J200E,J210E · catalogue 661140 · Japan
Supported model
Data version 2016-10

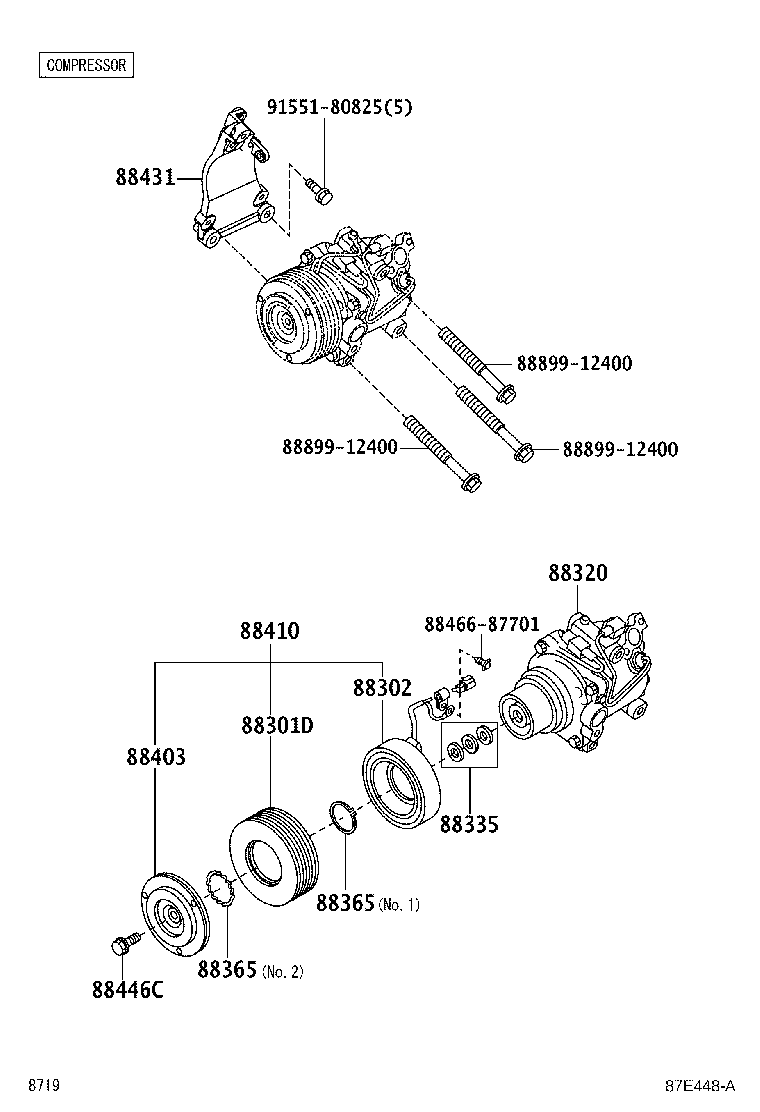

Heating & Air Conditioning - Compressor
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301D | Rotor, Magnet Clutch, NO. 2 |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88335 | Gasket Kit, Overhaul |
| 88365 | Ring, Snap |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88446C | Bolt, Magnet Clutch Setting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
