Toyota RAV4
1994-04 → 2000-05 · chassis SXA1# · catalogue 662110 · Japan
Discontinued model
Data version 2001-01

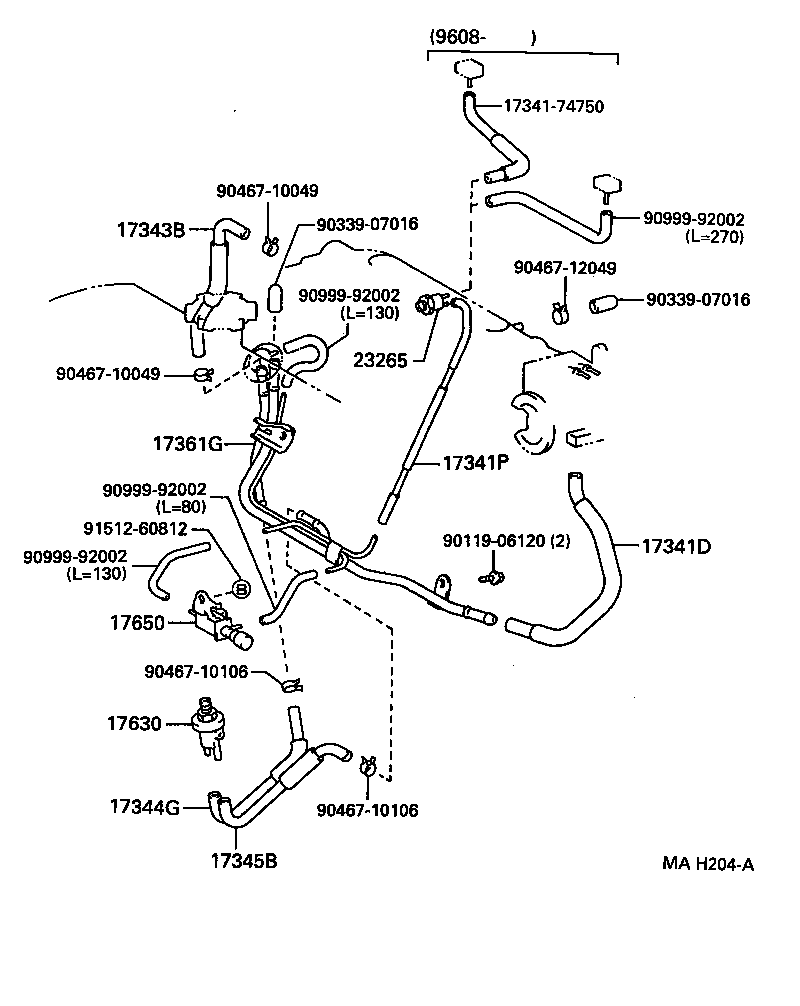

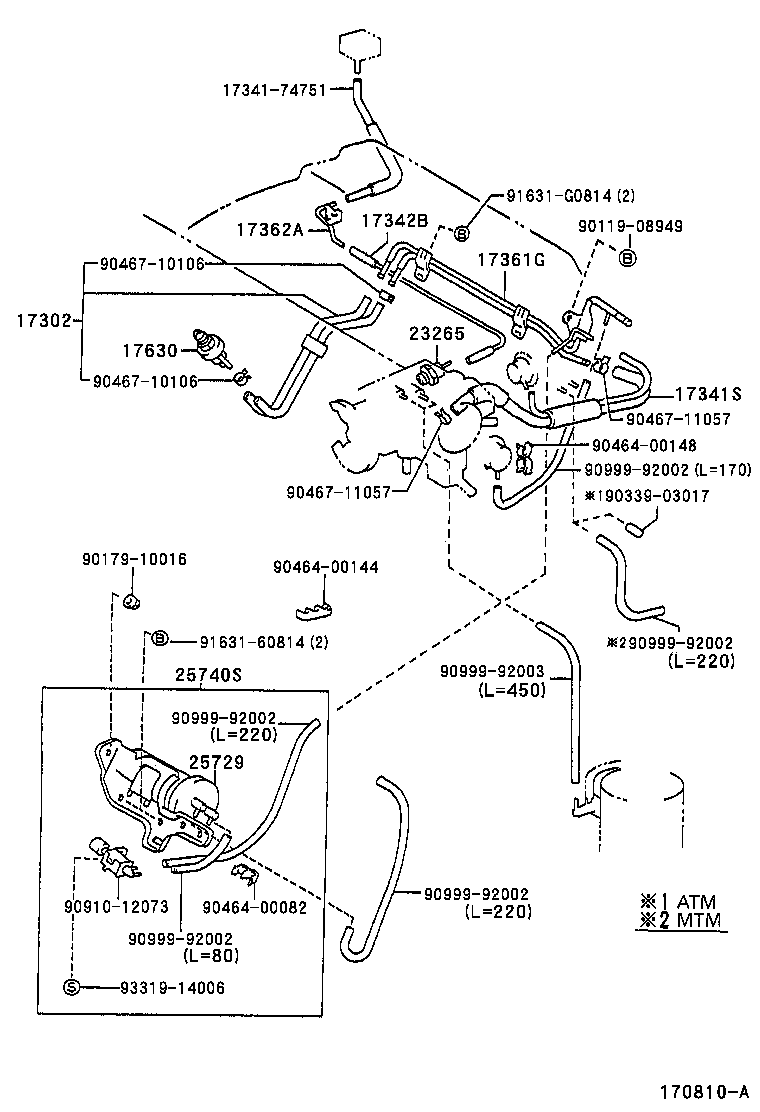

Vacuum Piping
15 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17302 | Hose Sub-assy, Air |
| 17341D | Hose, NO.1(FOR IDLE-UP) |
| 17341P | Hose, Air |
| 17341S | Hose, Air |
| 17342B | Hose, NO.2(FOR IDLE-UP) |
| 17343B | Hose, NO.3(FOR IDLE-UP) |
| 17344G | Hose, Air, NO.4 |
| 17345B | Hose, NO.5(FOR IDLE-UP) |
| 17361G | Tube, Air(FOR IDLE-UP) |
| 17362A | Tube, Air, NO.2 |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 25729 | Tank, Vacuum Surge W/Bracket |
| 25740S | Valve Assy, Air Control(FOR IDLE SPEED CONTROL) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
