Toyota RAV4
1994-04 → 2000-05 · chassis SXA1# · catalogue 662110 · Japan
Discontinued model
Data version 2001-01

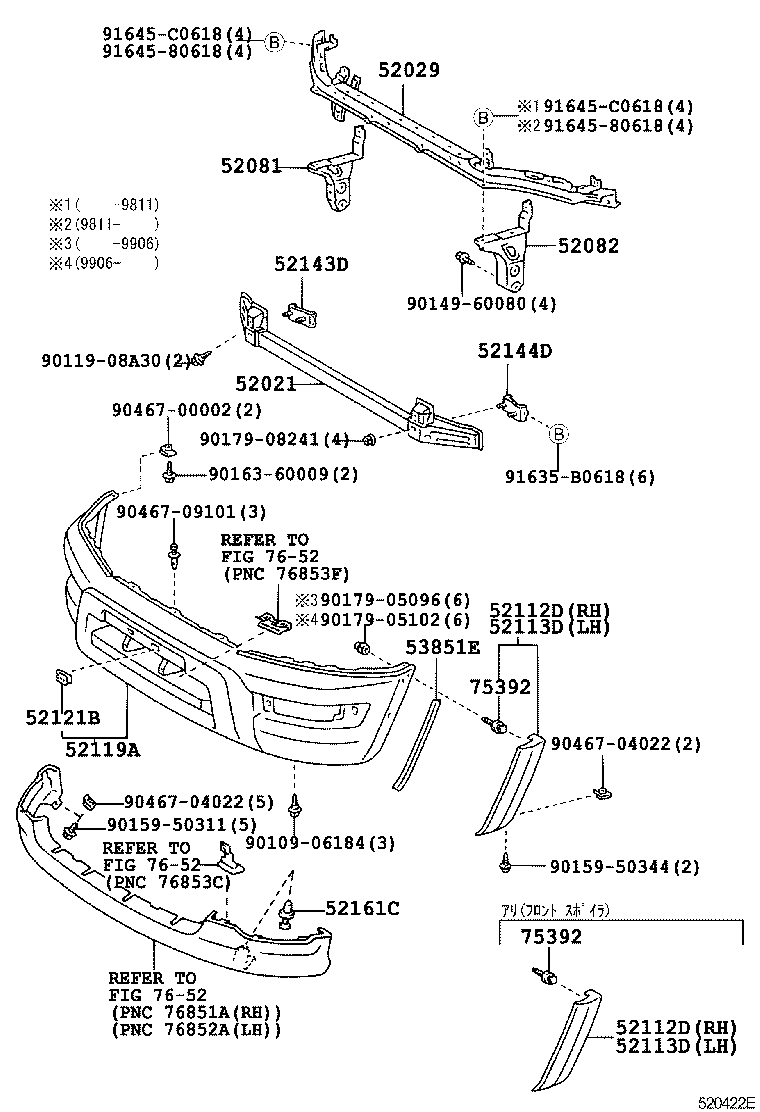

Front Bumper & Bumper Stay
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52029 | Reinforcement Sub-assy, Front Bumper, Upper |
| 52081 | Stay Sub-assy, Front Bumper |
| 52082 | Stay Sub-assy, Front Bumper, LH |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52119A | Cover, Front Bumper |
| 52121B | Bracket, Front Licence Plate Mounting |
| 52143D | Bracket, Front Bumper Side, RH |
| 52144D | Bracket, Front Bumper Side, LH |
| 52161C | Piece, Front Bumper |
| 52411 | Guard, Front Bumper |
| 52421B | Spacer, Front Bumper, NO.1 |
| 52431A | Bracket, Front Bumper Guard, RH |
| 52432A | Bracket, Front Bumper Guard, LH |
| 52437 | Cover, Front Bumper Guard, RH |
| 52438 | Cover, Front Bumper Guard, LH |
| 52441 | Base, Front Bumper Guard, NO.1 RH |
| 52442 | Base, Front Bumper Guard, NO.1 LH |
| 52467 | Cover, Front Bumper Guard, NO.2 RH |
| 52468 | Cover, Front Bumper Guard, NO.2 LH |
| 53851E | Pad, Front Wheel Opening Extension, NO.1 |
| 75392 | Retainer, Outside Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
