Toyota RAV4

1994-04 → 2000-05 · chassis SXA1# · catalogue 662110 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

17 part groups · 2 illustrations

Illustrations

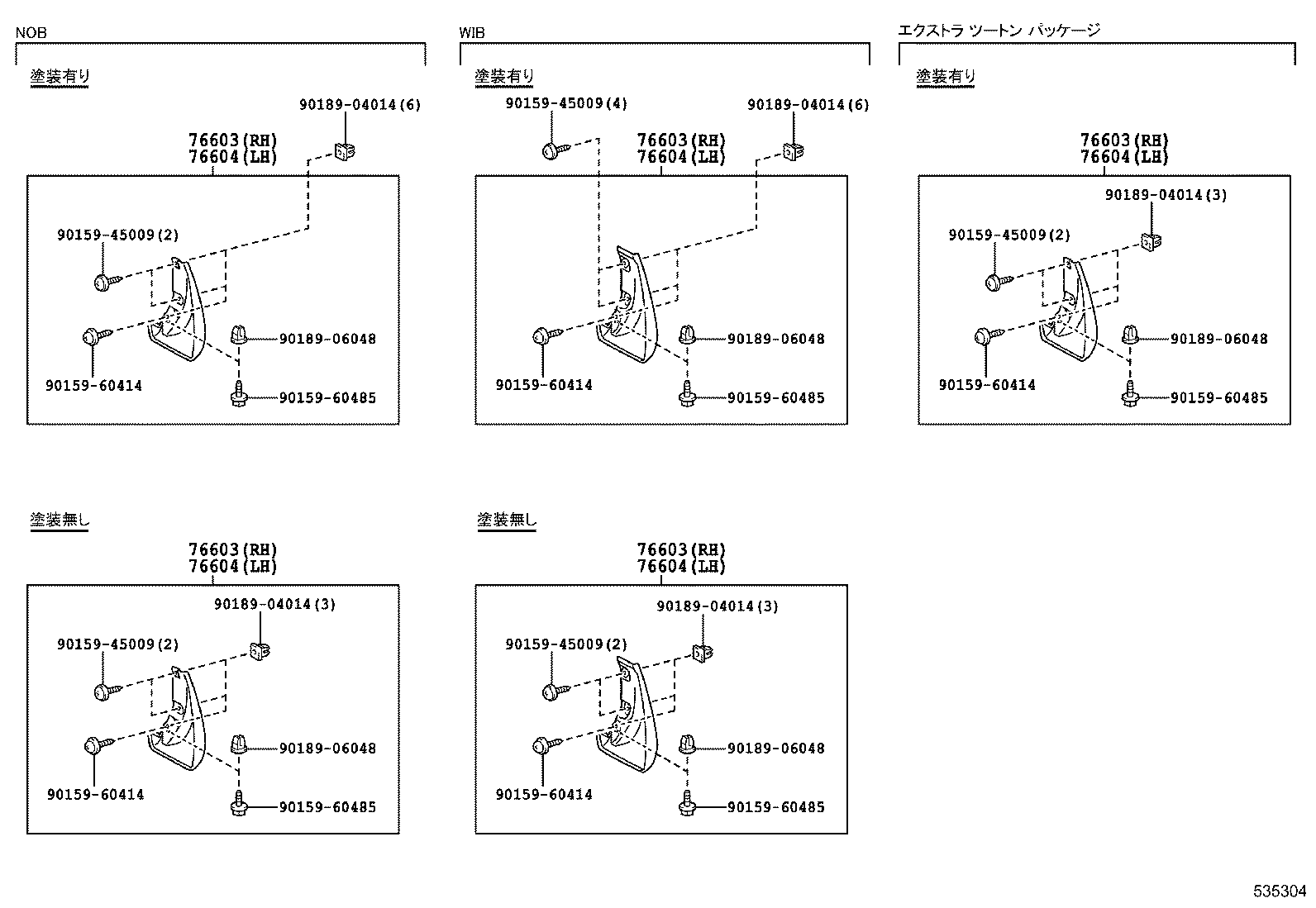

Figure 530305G 530305G 1994-04 → — Figure 535304 535304 1994-04 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53381 Seal, Hood TO Radiator Support
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827K Protector, Front Fender Side Panel, RH
53828J Protector, Front Fender Side Panel, LH
53831A Panel, Front Fender Side, Upper RH
53832A Panel, Front Fender Side, Upper LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53931C Panel, Front End
53932B Panel, Front End, LH
53935B Protector, Front End Panel
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
