Toyota RAV4

1994-04 → 2000-05 · chassis SXA1# · catalogue 662110 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

14 part groups · 2 illustrations

Illustrations

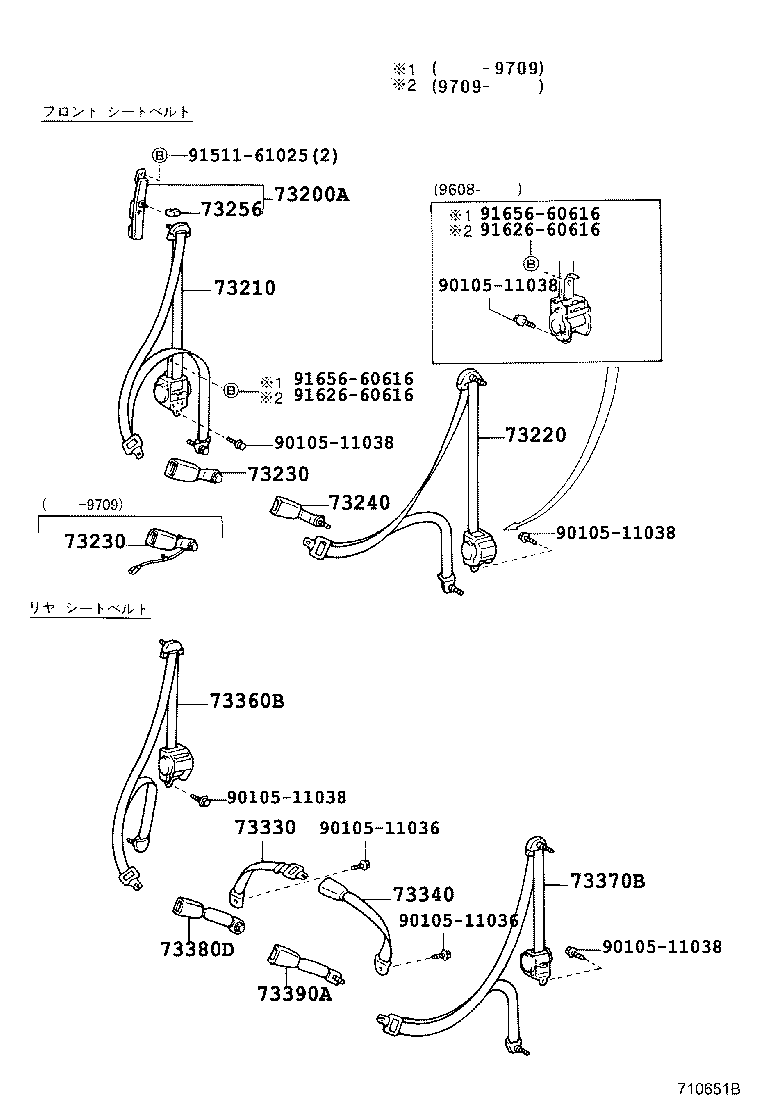

Figure 710830B 710830B 1994-04 → — Figure 710651B 710651B 1995-04 → —

Part groups

PNCDescription
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73256 Knob, Shoulder Belt Anchor Adjust
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73360B Belt Assy, Rear Seat, Outer
73370B Belt Assy, Rear Seat, Outer
73380D Belt Assy, Rear Seat, Inner
73390A Belt Assy, Rear Seat, Inner
73670A Bracket Assy, Rear Seat Belt Outer Anchor, RH
73680A Bracket Assy, Rear Seat Belt Outer Anchor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
