Toyota RAV4
1994-04 → 2000-05 · chassis SXA1# · catalogue 662110 · Japan
Discontinued model
Data version 2001-01

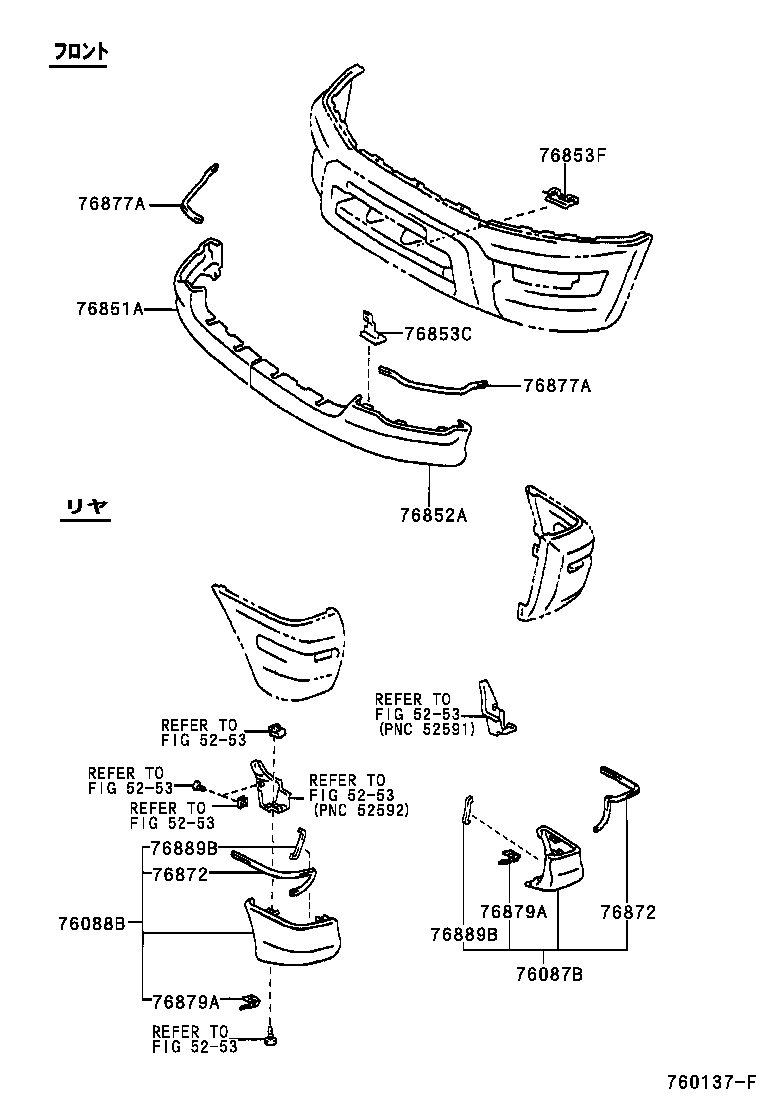

Spoiler & Side Mudguard
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 76087B | Spoiler Sub-assy, Rear Side, RH |
| 76088B | Spoiler Sub-assy, Rear Side, LH |
| 76851A | Cover, Front Spoiler, RH |
| 76852A | Cover, Front Spoiler, LH |
| 76853C | Retainer, Front Spoiler, NO.1 |
| 76853F | Retainer, Front Spoiler, NO.1 |
| 76865 | Retainer, Rear Spoiler, NO.1 |
| 76871 | Spoiler, Rear |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76877A | Protector, Front Spoiler |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76879A | Spacer, Rear Spoiler |
| 76887 | Seal, Rear Spoiler |
| 76887F | Seal, Rear Spoiler, NO.2 |
| 76887G | Seal, Rear Spoiler, NO.3 |
| 76887H | Seal, Rear Spoiler, NO.4 |
| 76887J | Seal, Rear Spoiler, NO.5 |
| 76887K | Seal, Rear Spoiler, NO.6 |
| 76889B | Seal, Rear Spoiler, NO.1 |
| 76892 | Spoiler, Rear NO.2 |
| 76893A | Cover, Rear Spoiler, RH |
| 76894 | Cover, Rear Spoiler, LH |
| 76899A | Nut, Rear Spoiler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
