Toyota RAV4

1994-04 → 2000-05 · chassis SXA1# · catalogue 662110 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

11 part groups · 2 illustrations

Illustrations

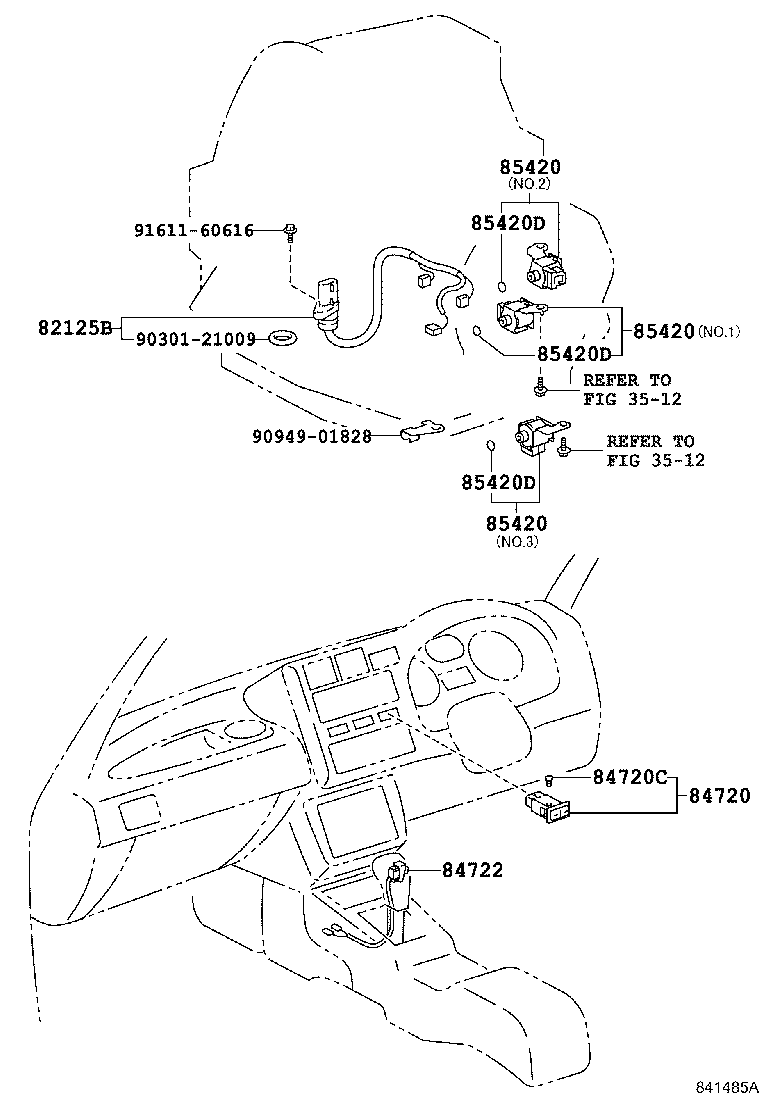

Figure 841484A 841484A 1994-04 → — Figure 841485A 841485A 1997-09 → —

Part groups

PNCDescription
35299 Spacer, Transmission Revolution Sensor
35517 Plate, Transmission Wire Lock
82125A Wire, Transmission
82125B Wire, Transmission
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89413B Sensor, Transmission Revolution
89428D Switch, Temperature, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
