Toyota RAV4
1994-04 → 2000-05 · chassis SXA1# · catalogue 662110 · Japan
Discontinued model
Data version 2001-01

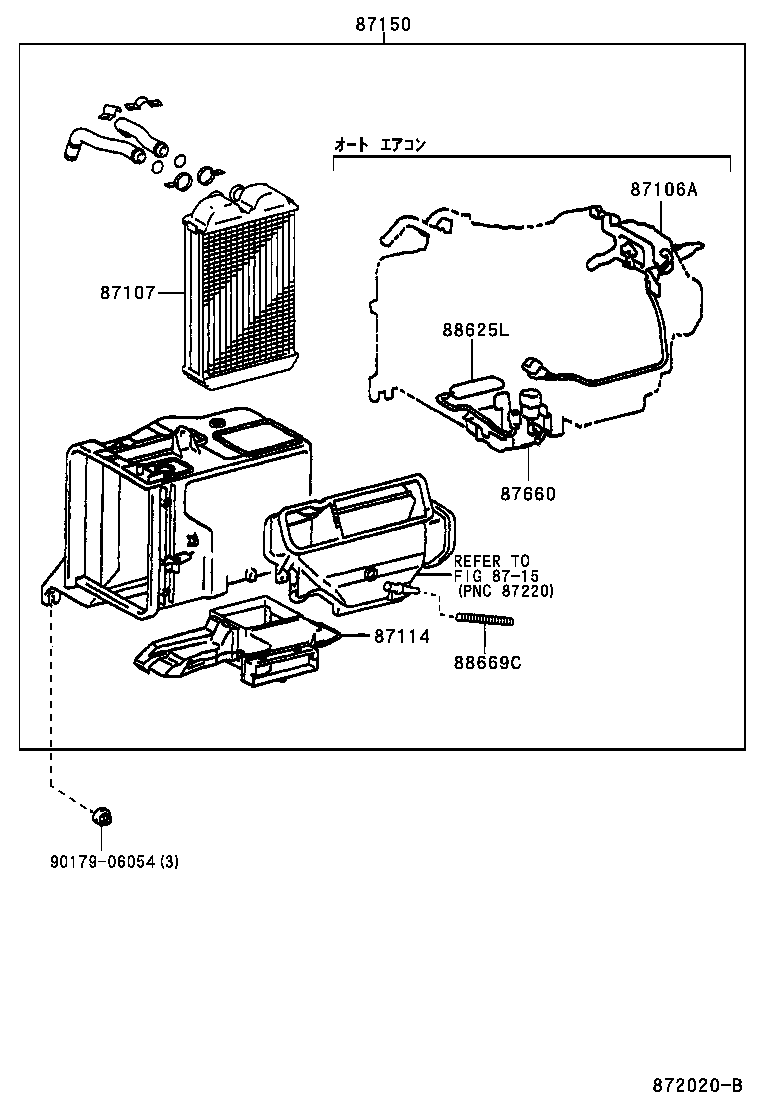

Heating & Air Conditioning - Heater Unit & Blower
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87106A | Servo Sub-assy, Damper |
| 87106C | Servo Sub-assy, Damper(FOR BLOWER) |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87114 | Cover, Heater |
| 87130 | Blower Assy, Heater, Front |
| 87150 | Radiator Assy, Heater |
| 87660 | Servo Assy, Air Conditioner |
| 88625L | Thermistor, Cooler |
| 88669C | Hose, Air |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
