Toyota RAV4 J/L

2000-05 → 2005-11 · chassis ACA2#,ZCA2# · catalogue 662120 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

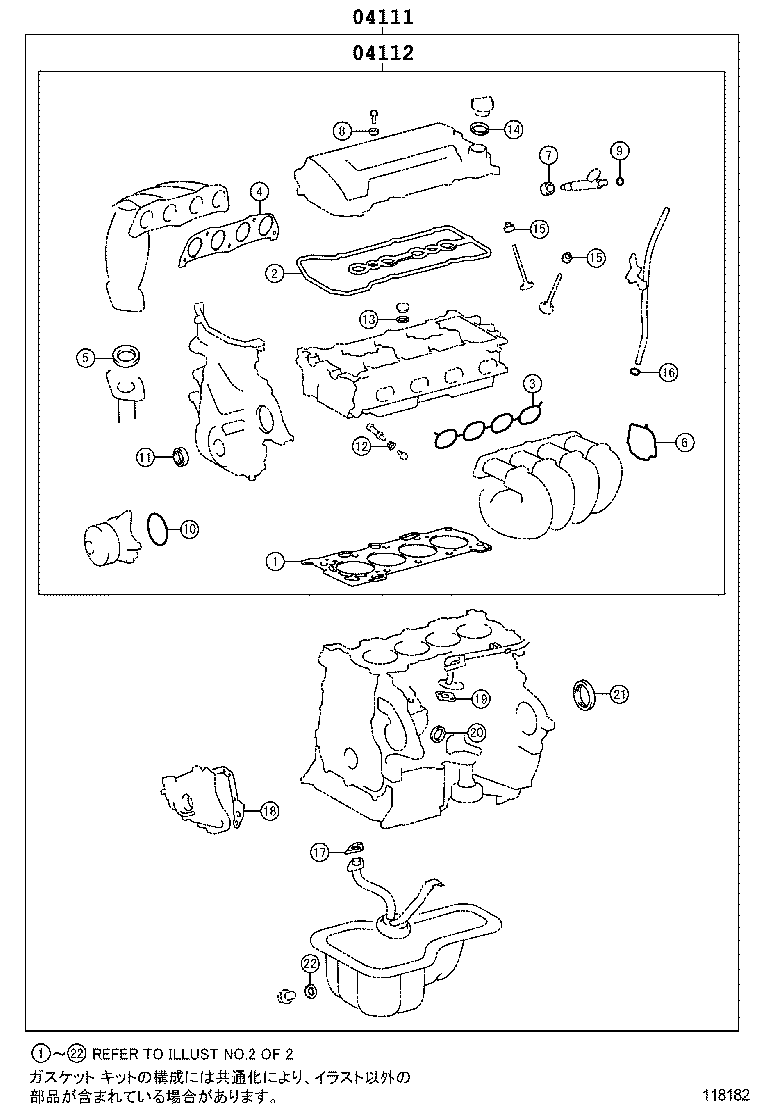

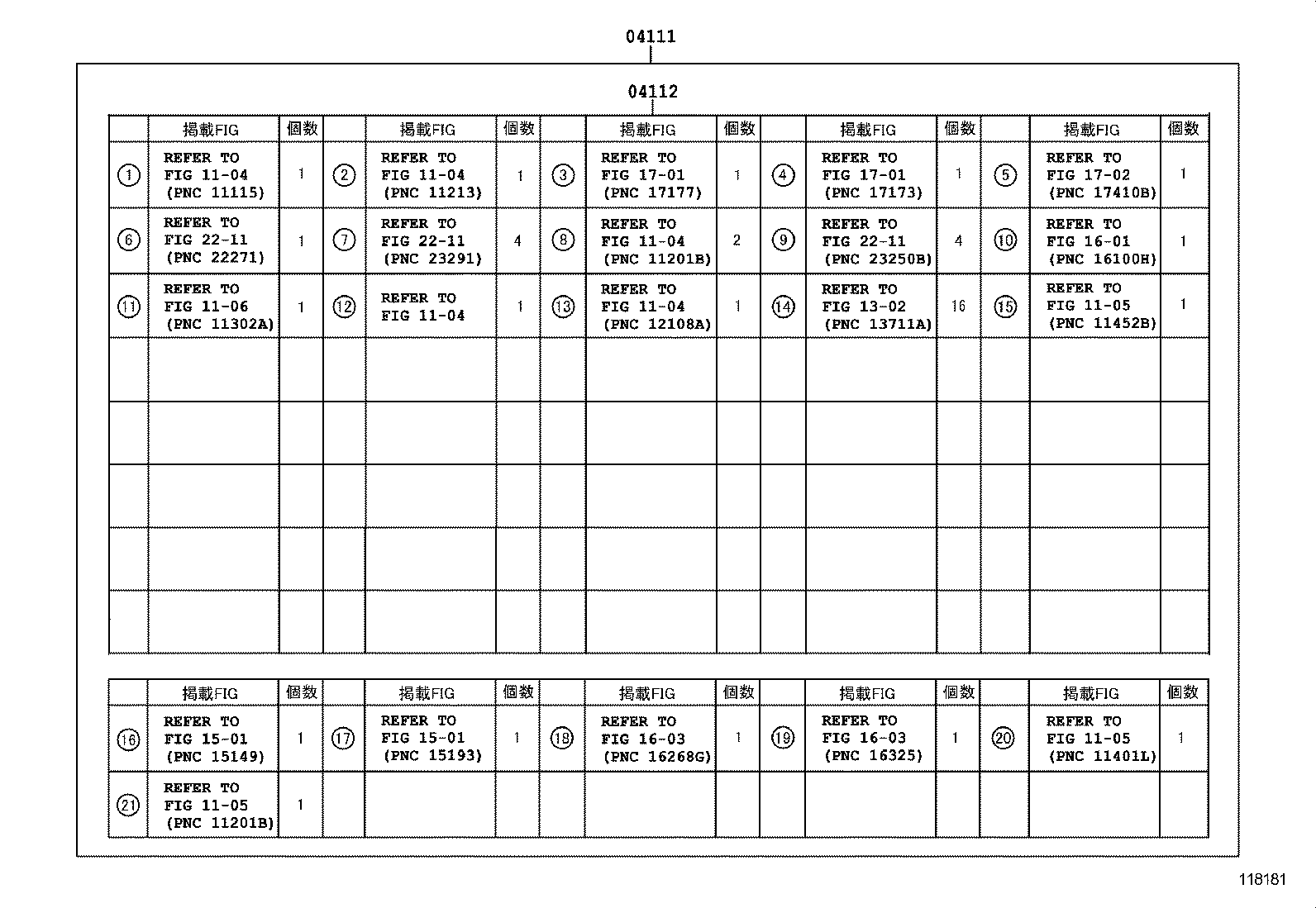

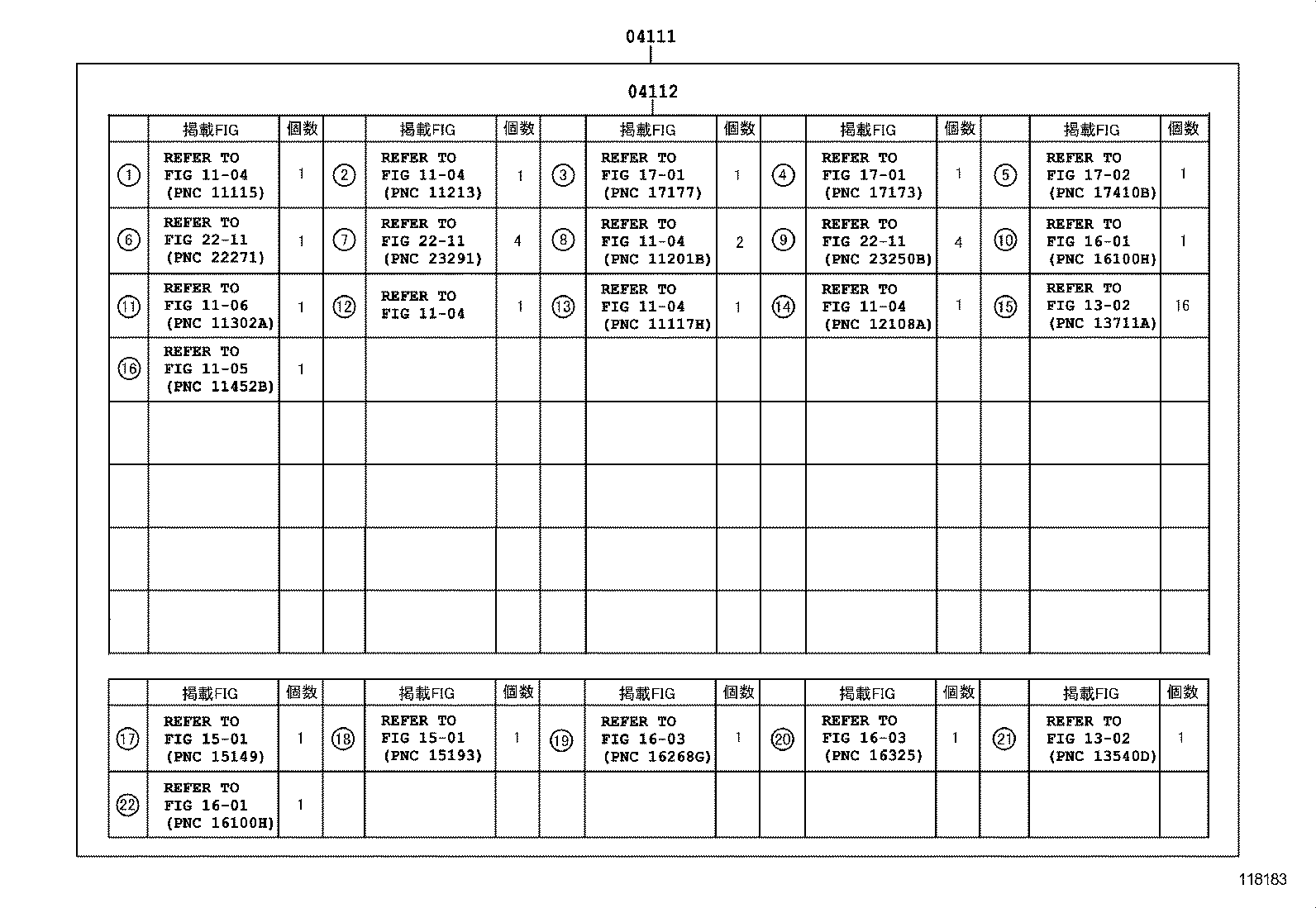

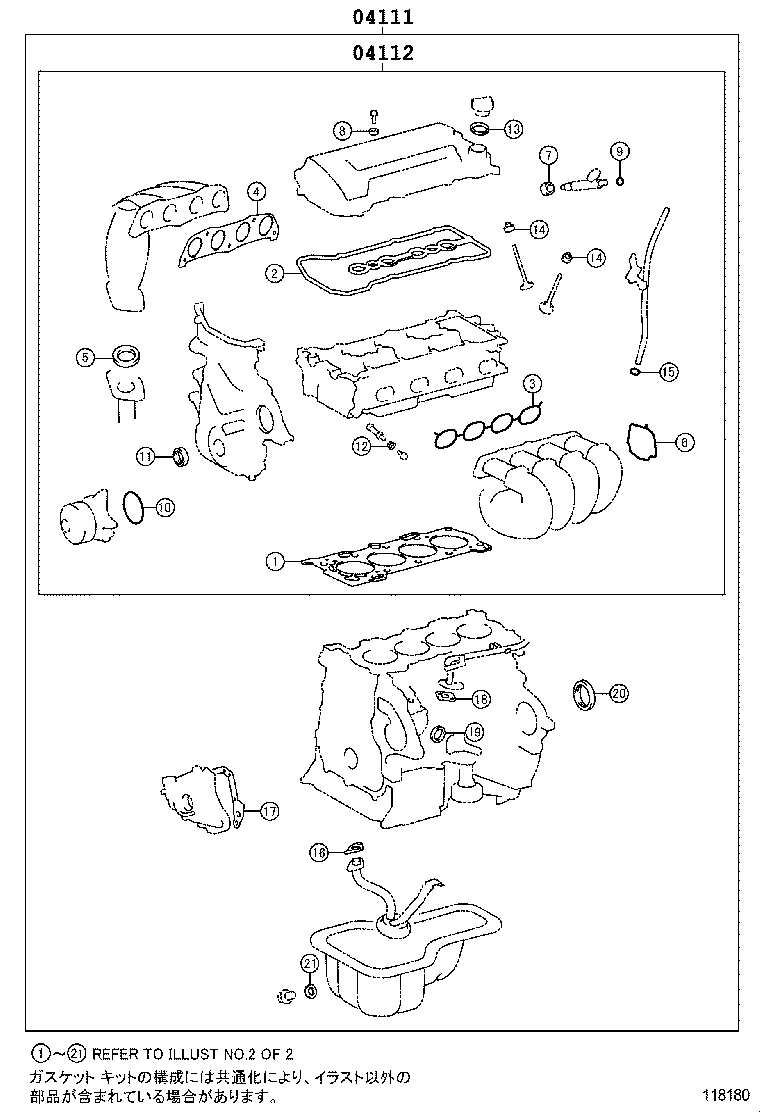

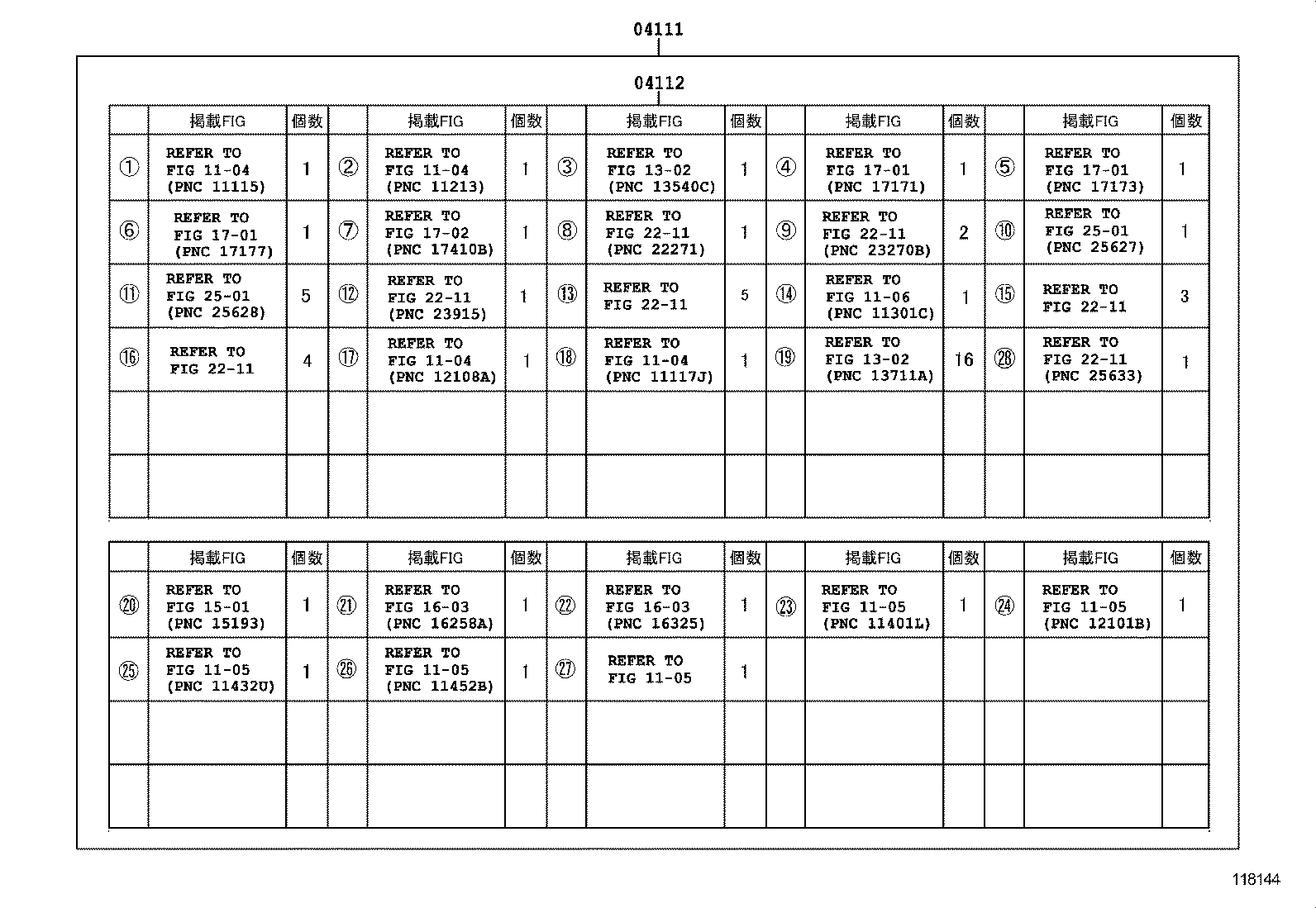

Figure 118143 118143 2000-05 → — Figure 118144 118144 2000-05 → — Figure 118180 118180 2000-05 → 2004-04 Figure 118181 118181 2000-05 → 2004-04 Figure 118182 118182 2004-04 → — Figure 118183 118183 2004-04 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
