Toyota RAV4 J/L
2000-05 → 2005-11 · chassis ACA2#,ZCA2# · catalogue 662120 · Japan
Discontinued model
Data version 2006-07

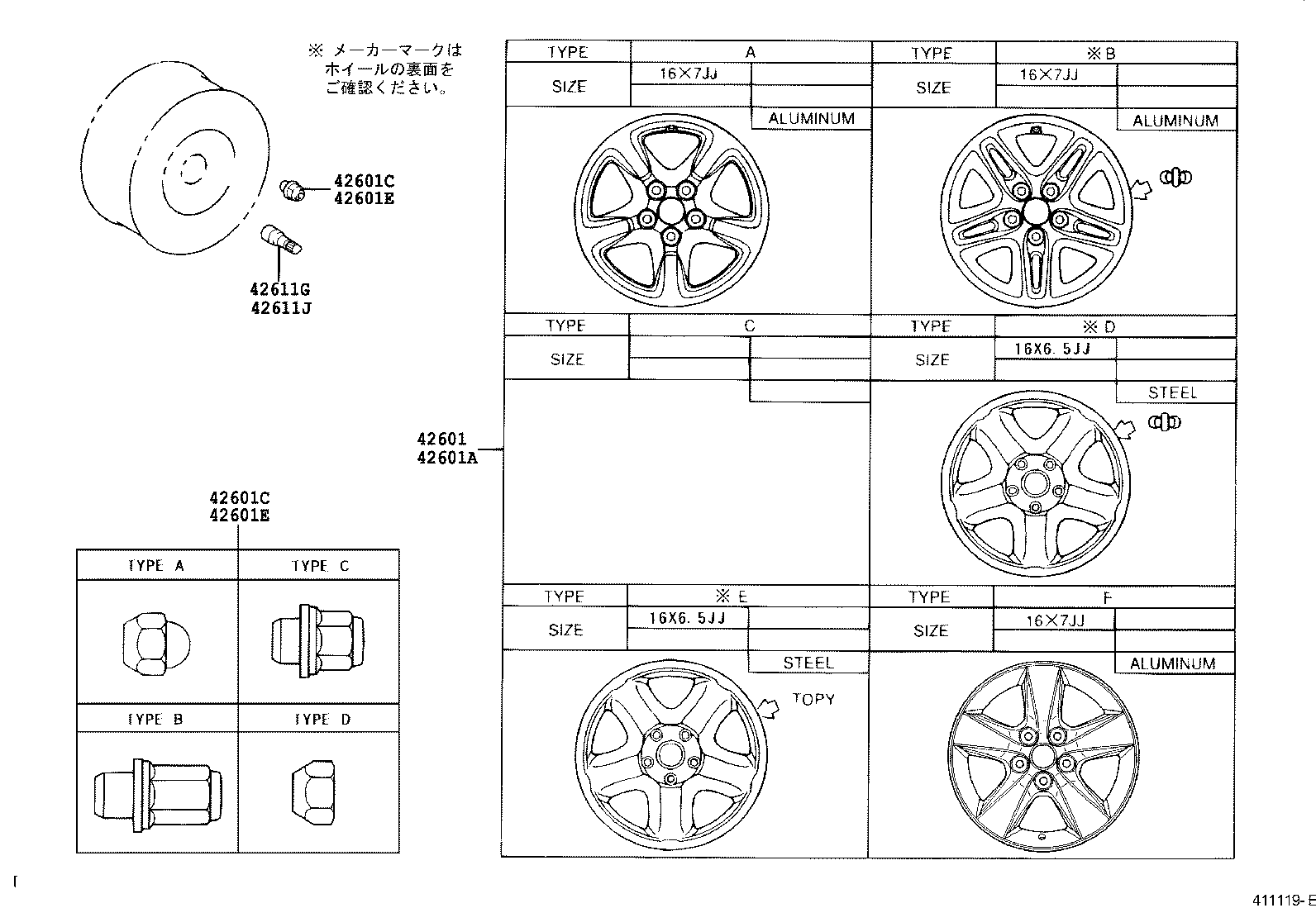

Disc Wheel & Wheel Cap
7 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601 | Wheel, Disc |
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |
| 42601E | Nut, Hub(FOR SPARE WHEEL) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
