Toyota RAV4 J/L
2000-05 → 2005-11 · chassis ACA2#,ZCA2# · catalogue 662120 · Japan
Discontinued model
Data version 2006-07

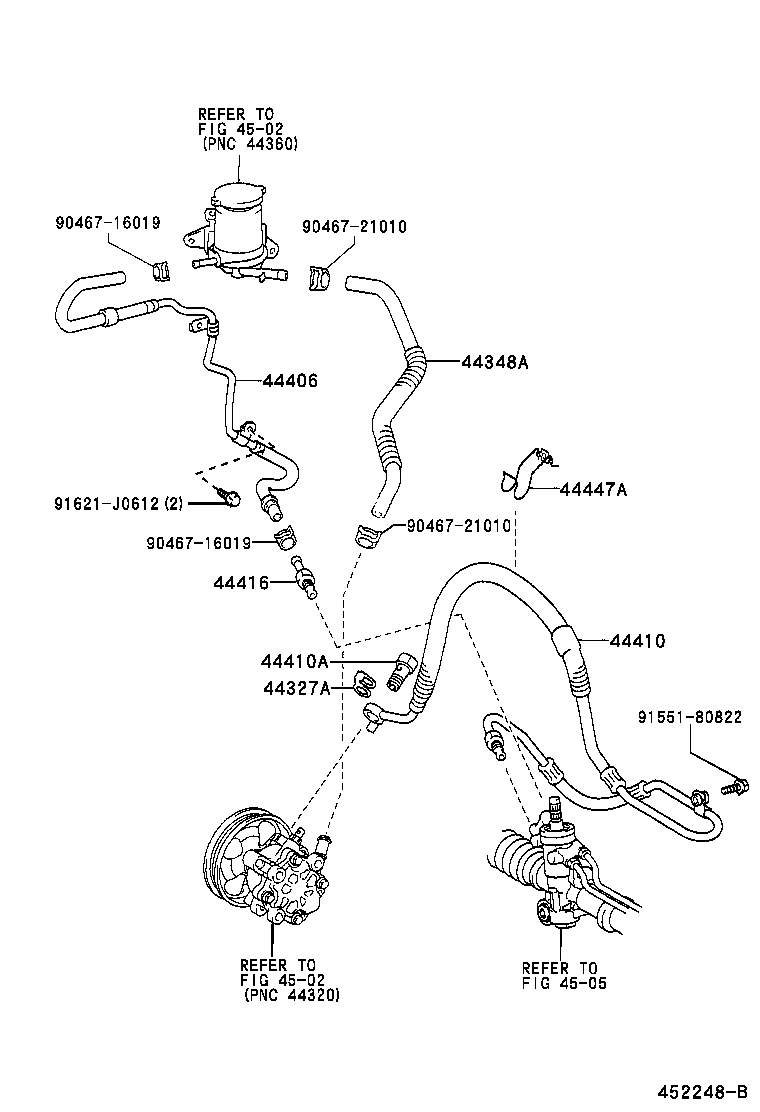

Power Steering Tube
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44406 | Tube Sub-assy, Return |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44447A | Bracket, Hose Support, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
