Toyota RAV4 J/L

2000-05 → 2005-11 · chassis ACA2#,ZCA2# · catalogue 662120 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

10 part groups · 3 illustrations

Illustrations

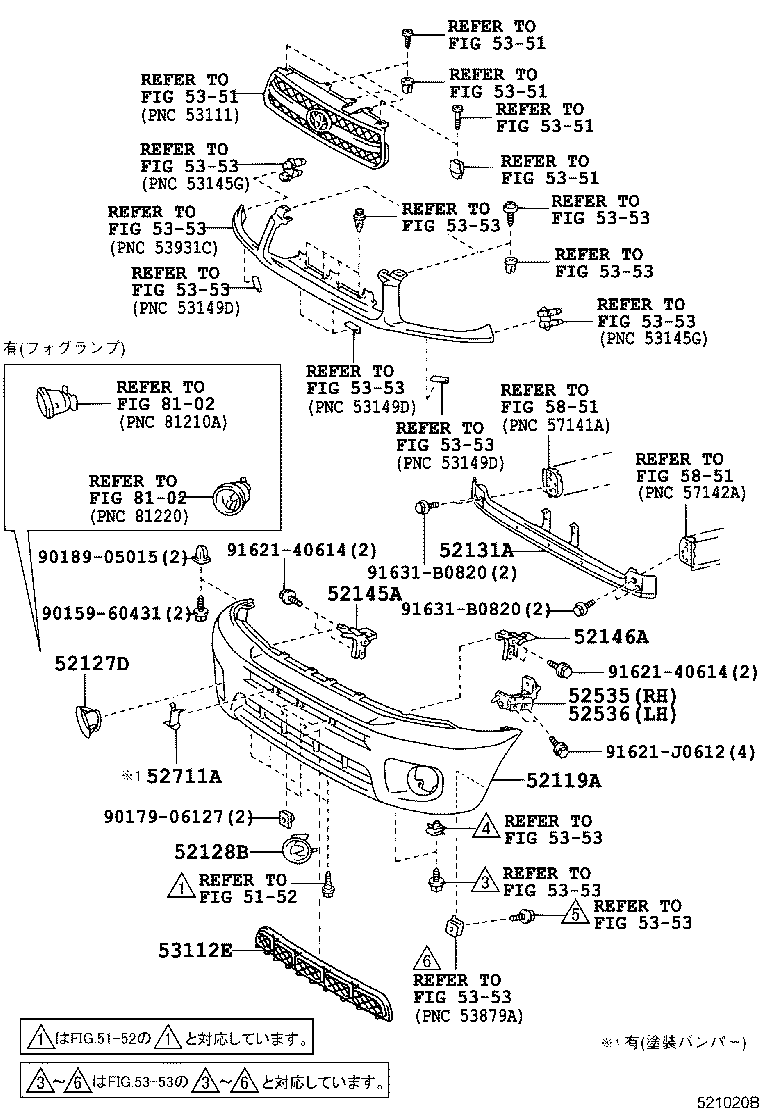

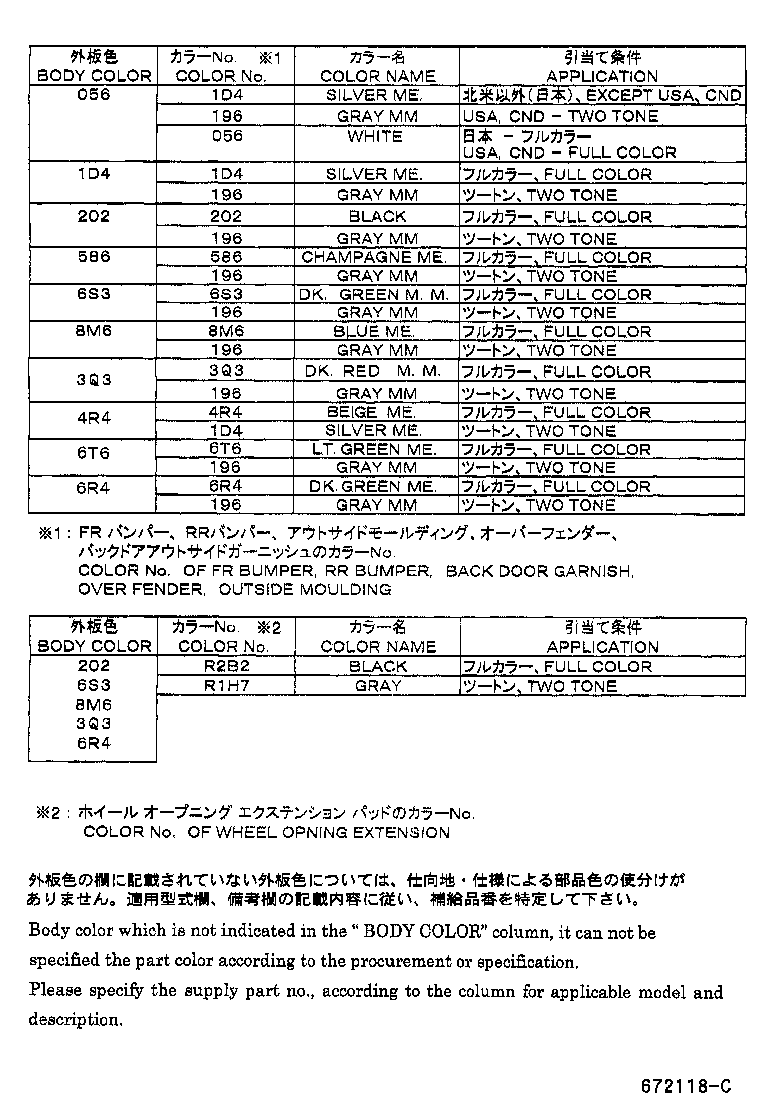

Figure 520634C 520634C 2000-05 → 2003-07 Figure 521020B 521020B 2003-07 → — Figure 672118C 672118C 2000-05 → —

Part groups

PNCDescription
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52711A Garnish, Front Bumper
53112E Grille, Radiator, Lower NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
